| Brand Name: | Kemaisi |
| Model Number: | KMS-P3619 |
| MOQ: | 1 pcs |
| Price: | USD850-USD1700 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
During peak holiday periods, traditional scenic areas often see visitor complaints due to congestion caused by manual ticket checking. Slow verification, poor experience, frequent ticket evasion and ticketing disputes directly undermine the park's revenue and brand reputation. Kemaisi intelligent sliding barrier gate is specially designed for scenic area access management. It supports multiple ticket verification methods such as QR code, ID card, face recognition, and annual pass, achieving one second ultra fast passage and greatly enhancing entry efficiency, allowing visitors to avoid long queues. The system can centrally manage ticketing data from all online and offline channels, helping scenic area managers monitor visitor flow and sales in real time, and providing precise data for operational planning. The device is finely crafted, fully featured, and has a high grade appearance, integrating mechanical, electronic, microprocessor control, and multiple identification technologies. It is compatible with card readers for IC cards, ID cards, barcode cards, fingerprints, and more, and can be equipped with optional modules such as safety protection, alarm, and direction indicators to enable intelligent channel management. The device includes fault self diagnostics and alarm prompts, making routine maintenance easy. The pinch protection function ensures that when the swing arm meets resistance during reset, it automatically rebounds with a force of no more than 2 kg, effectively protecting visitor safety. An audible and visual alarm accurately identifies illegal entry and tailgating. The anti crash feature ensures that the swing arm locks automatically when no valid opening signal is received, preventing violent forced entry. When power is cut off, the passage opens automatically; when power is restored, it closes automatically, fully meeting both fire evacuation and rapid restoration of control requirements. This sliding gate is an ideal choice for smart upgrades of scenic areas, improving visitor experience and security levels.
Supports multiple credentials such as QR code, ID card, face recognition, and annual pass, completing verification and opening the gate within 1 second. During peak hours, it quickly processes visitor flow, greatly improving the entry experience and reducing complaints and disputes caused by queuing.
The system integrates ticketing data from all online and offline channels, with real time summaries from individual tourists, OTA platforms, official websites, and other channels aggregated in the backend. Scenic managers can view sales data, entry statistics, and trends at any time, providing accurate support for capacity limiting decisions and marketing activities.
When the swing arm encounters resistance during reset, it automatically rebounds with a driving force of no more than 2 kilograms, preventing injury to visitors. This is especially suitable for scenic areas where elderly people and children pass through, ensuring physical safety for every passage.
When no valid opening signal is received, the swing arm locks automatically, effectively preventing violent forced entry. The audible and visual alarm system accurately detects illegal intrusion and tailgating and triggers an alert. This dual mechanism ensures order and visitor safety in the channel.
The internal mechanism adopts a unique mechanical structure design, ensuring smooth operation and extremely low noise that does not disturb the natural atmosphere of the scenic area. It maintains excellent performance even with frequent start stop cycles, significantly reducing long term maintenance costs and adapting to high volume operation throughout the year.
| Product Name | Sliding Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*350mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-600mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |

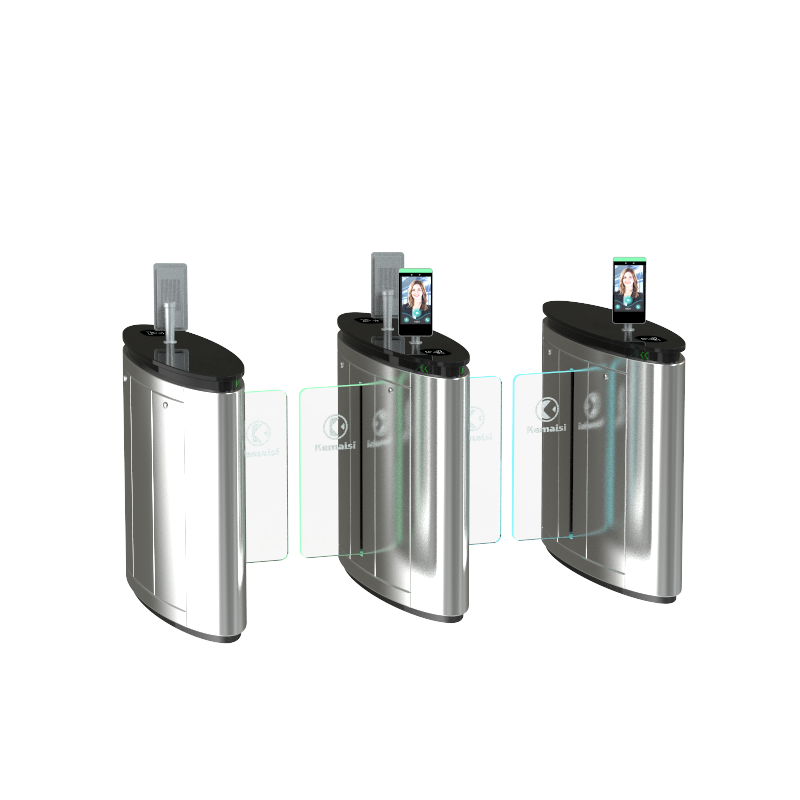

A curved sliding gate turnstile is an automatic pedestrian access control gate featuring motorized tempered glass barriers and a streamlined cabinet design for enhanced aesthetics and security.
Yes. The KMS-P3619 is compatible with face recognition terminals, RFID cards, fingerprint scanners, QR code readers, and mobile credentials.
Absolutely. Its high-speed servo motor and intelligent infrared detection system ensure smooth operation in busy office buildings, transportation hubs, and commercial facilities.
Yes. Standard passage widths range from 600 mm to 900 mm, with wider ADA-compliant lanes available upon request.
Yes. We provide full OEM and ODM customization, including logo branding, cabinet dimensions, software integration, communication protocols, and project-specific configurations.
