| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7527 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

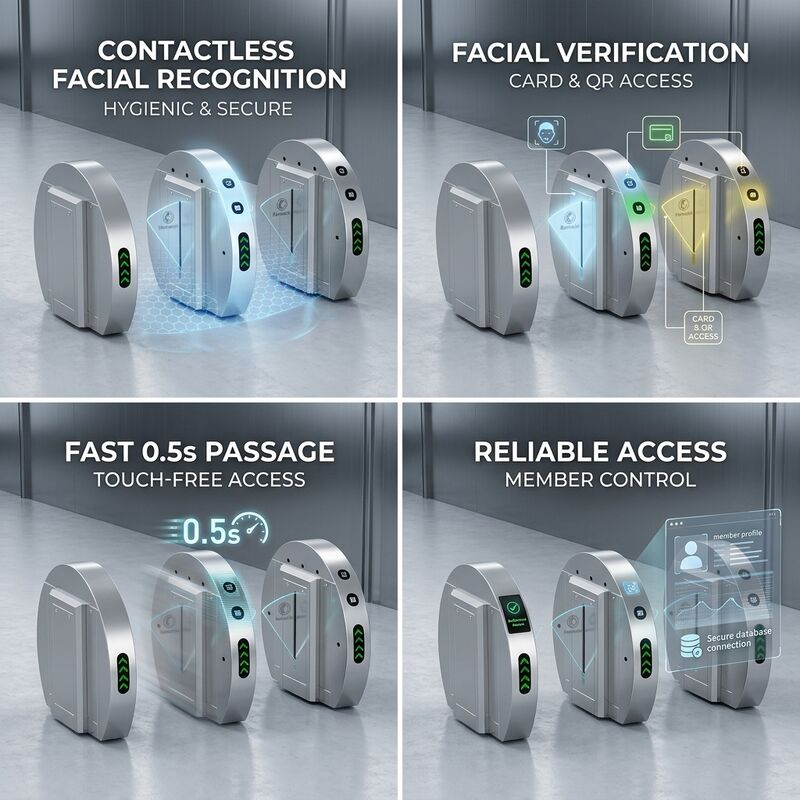

This wing barrier is a face recognition access control turnstile designed for gyms, fitness clubs and sports venues that need fast, touch-free member access. Members can enter simply by facing the integrated facial recognition terminal, with no need to swipe a card or touch any device, while the barrier also supports card swiping and QR code scanning so every member and casual visitor can choose the method that suits them. The system automatically starts timing when a member enters and stops when they exit, supporting flexible billing such as charging by duration, per visit cards, period passes and stored value cards. Casual visitors can buy a ticket on site by scanning a QR code to obtain a temporary code and pass immediately. Anti tailgating, anti crash locking, a gentle anti pinch swing arm and automatic reset after 10 seconds keep the passage safe, and in a power failure or emergency the barrier unlocks immediately for rapid evacuation.
Members enter simply by facing the camera, with no card and no physical contact. This touch-free biometric access improves hygiene, convenience and the overall member experience in the gym.
The barrier supports three verification methods and can be connected to various card readers, so members can pass by facial recognition while casual visitors pass by QR code or card with equal ease.
Timing starts automatically on entry and ends on exit, supporting billing by duration, per visit cards, period passes and stored value cards, fully matching different gym operation models.
Casual visitors buy a ticket on site by scanning a QR code to obtain a temporary code, and the deduction is completed automatically upon entry, so members never need to check their balance.
The built in intelligent detection mechanism identifies and prevents tailgating, and when no opening signal is received the swing arm locks automatically to prevent forced impact.
When power fails the barrier opens to an unlocked state for unobstructed evacuation, and the emergency stop button on the side instantly unlocks all passages for full fire safety compliance.
A built in fault self diagnosis module triggers an automatic alarm when an abnormality occurs, and the barrier connects to various card readers and access systems for easy maintenance and expansion.
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1250mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. It integrates a facial recognition terminal for contactless biometric entry, and also supports card swiping and QR code scanning for different members and visitors.
Face verification works together with a 0.5 second opening time and traffic speed of up to 40 people per minute, so members enter quickly without queueing at busy times.
Yes. Timing starts automatically on entry and ends on exit, supporting billing by duration as well as per visit cards, period passes and stored value cards.
Casual visitors can buy a ticket on site by scanning a QR code to receive a temporary code, and the deduction is completed automatically when they scan to enter.
Yes. The barrier detects and prevents tailgating, locks the swing arm automatically without an opening signal, and auto resets after 10 seconds to prevent ineffective passage.
The barrier opens to an unlocked state when power fails, and the side emergency stop button instantly unlocks all passages for unobstructed safety evacuation.
Looking for a reliable face recognition gym wing barrier turnstile supplier for your project? Contact us today for competitive factory pricing, product specifications, customized solutions, installation guidance and technical support.
