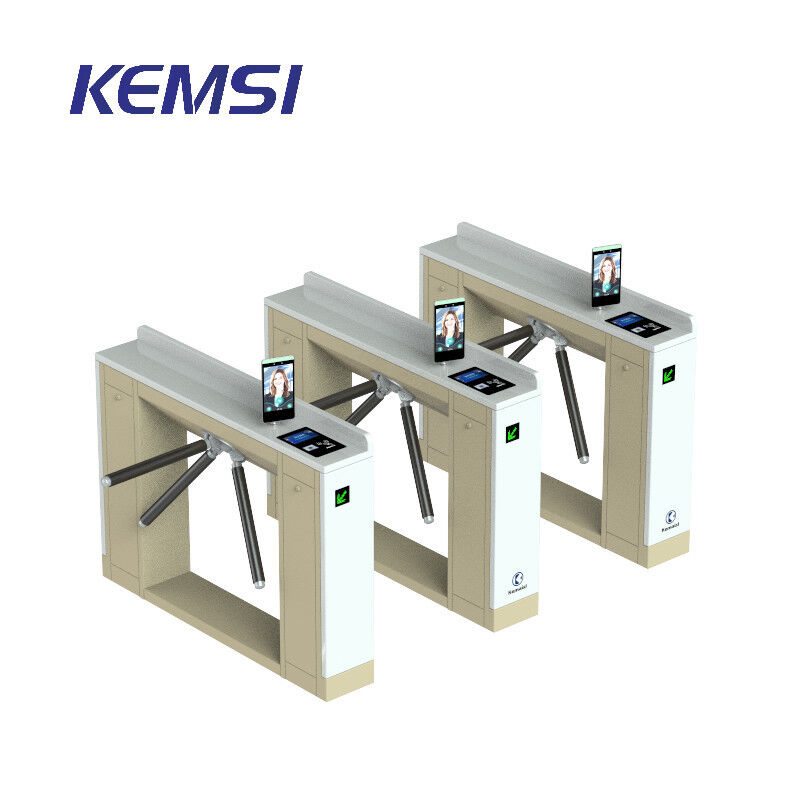

Intelligent Tripod Security Gates With QR Code Scanning / Facial Recognition

Intelligent Tripod Turnstile For Entrance Ticket Checking With QR Code Scanning And Facial Recognition

Product Description

This intelligent turnstile is suitable for membership based venues such as gyms , swimming pools , and yoga studios . It supports automatic timing when scanning a QR code or using facial recognition for entry , and automatically stops timing when exiting . The system can automatically charge based on actual usage duration ( pay per use mode ) , or simply record the duration for statistics without charging ( suitable for period pass or per visit mode ) . It is fully compatible with per visit cards ( deduct per use ) , period passes ( unlimited entries within validity ) , stored value cards ( charge by entry duration ) , and casual visitor temporary tickets for single passage . To prevent card abuse , dual verification of “ facial recognition plus membership card ” is used at entry . The system automatically compares the member ‘ s archived photo . If identification fails , entry is prohibited ,eliminating card lending , resale , or sharing among multiple people . The system synchronises in real time with the membership management backend : when a membership expires , falls into arrears , or is frozen , entry is automatically restricted and the turnstile gives a voice prompt : “ Membership expired , please contact the front desk ” . After renewal , passage permission is automatically restored without the need to issue a new card , perfectly adapting to 24 / 7 unattended scenarios . The turnstile has built in anti tailgating and anti crash functions to ensure passage security . The mechanism uses a unique mechanical structure , operating smoothly with low noise and a long service life . When power fails , the gate automatically unlocks and switches to mechanical mode , complying with fire evacuation requirements . It also has an automatic reset function : after gaining access permission , if the user does not pass within the set time , the permission is automatically cancelled and the system resets .

Operating Modes

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

Features and Advantages

1 . Automatic timing and flexible billing

Timing starts when entering via facial recognition or QR code scanning , and automatically stops when exiting . The system can charge according to actual duration ( pay per use mode ) or simply record duration for statistics ( period pass / per visit mode ) , accommodating different business strategies .

2 . Full compatibility with multiple card types

Supports per visit cards ( deduct per use ) , period passes ( unlimited entries within validity ) , stored value cards ( charge by entry duration ) , and casual visitor temporary tickets for single passage . One device serves both members and casual visitors , reducing system investment costs .

3 . Dual anti abuse : facial recognition plus membership card

At entry , the system compares the member ‘ s archived photo in real time to ensure the cardholder is the member themselves . If identification fails , entry is prohibited , effectively eliminating card lending , second hand resale , and sharing of one card among multiple people .

4 . Real time backend synchronisation and automatic permission management

Linked with the membership management backend , when a membership expires , falls into arrears , or is frozen , entry is automatically restricted and a voice prompt is given . After renewal , permission is automatically restored without the need to issue a new card , suitable for 24 / 7 unattended operation .

5 . Anti tailgating and anti crash

Intelligently monitors the passage status , effectively detecting and preventing tailgating . When no opening signal is received , the swing arm automatically locks , preventing forced entry by external force . The unique mechanical structure ensures smooth operation , low noise , high reliability , and a long service life , reducing maintenance frequency .

6 . Automatic reset to prevent misuse

After gaining access permission , if the user does not pass within the set time , the system automatically cancels the authorisation and resets , preventing tailgating or reuse . When power fails , the gate automatically opens to mechanical free passage mode , ensuring unobstructed emergency evacuation and meeting fire safety regulations .
