Swing Gate Turnstile

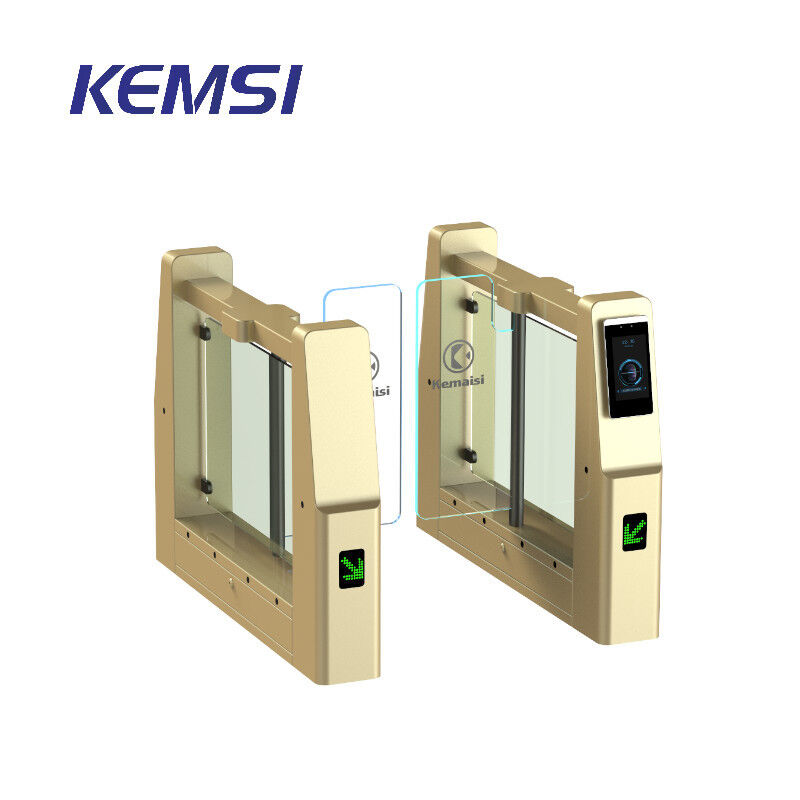

Created with Pixso. Park Entrance Swing Barrier Gate Multi Channel Fast Entry For Ticket Checking

Park Entrance Swing Barrier Gate Multi Channel Fast Entry For Ticket Checking

Brand Name: Kemaisi
Model Number: KMS-B8525
MOQ: 1 pcs
Price: USD470-USD940
Delivery Time: 5-14 work days
Payment Terms: T/T
Detail Information
Place of Origin:
Guang Dong China
Certification:
CE | RoHS
Document:
Product Name:
Park Entrance Swing Barrier Gate
Passage Frame:
304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size:
1200*180*900mm (Sizes Can Be Customized)
Channel Width:
550-850mm
Infrared Sensor:
4 Pairs
Weight:
40-65KG
Opening Time:
0.5 Seconds
Packaging Details:
Wooden Case Package
Supply Ability:
1000peices/Month
Highlight:

Park Entrance Swing Barrier Gate

,

Swing Barrier Gate Multi Channel

,

Swing Barrier Gate Fast Entry

Product Description

Swing Gate For Ticket Checking At Amusement Park Entrance



Product Description

Indoor children ‘ s playgrounds , trampoline parks , and similar entertainment venues often face two major operational challenges : some parents buy one ticket and take multiple children in rotation , or enter and exit frequently , causing a mismatch between actual consumption and revenue . During peak hours , manual ticket checking is inefficient , long queues form at the entrance , parents become impatient , and staff are under great pressure . This intelligent turnstile provides a targeted solution : operators can flexibly configure entry and exit frequency modes , such as “ single entry plus one exit for toilet use ” or “ multiple entries and exits ” , effectively preventing one ticket from being used by multiple people . Customers scan their own QR codes to pass through , eliminating manual ticket checking . Even during peak hours , passage remains smooth and congestion free , significantly reducing staff workload . The system automatically records the entry time , exit time , and remaining time for each wristband . Operators can view the number of people inside and ticketing data in real time via a mobile phone or computer , making operations management clear at a glance . The device has built in fault self diagnosis and alarm functions for easy daily maintenance . The operating status can be programmed on site via the built in keypad on the main control board . In the event of a power failure , the turnstile automatically triggers fire mode , sounds an alarm , and opens the gate , ensuring unobstructed emergency evacuation of people .



Operating Modes



• Single passage in the set direction



• Bi-directional single passage



• Free passage in the set direction



• Always free or locked



Features and Advantages



1 . Flexible configuration of entry and exit frequency to prevent ticket sharing

Supports multiple modes such as “ single entry plus one exit for toilet use ” or “ multiple entries and exits ” . Operators can set as needed , eliminating revenue loss caused by one ticket being used by multiple people in rotation or frequent entries and exits .



2 . Self service QR code for fast passage

Customers scan their own QR codes to pass through the turnstile , eliminating manual ticket checking . No congestion during peak hours , greatly reducing on site staff pressure and improving parent satisfaction .



3 . Fault self diagnosis and alarm

Built in self diagnosis module triggers an automatic alarm when an abnormality occurs , helping maintenance staff quickly locate problems and reducing equipment downtime .

Via the built in keypad on the main control board , turnstile operating parameters can be flexibly programmed on site to meet management needs for different activities or time periods .



4 . Automatic door opening on power failure

In the event of a power failure , the turnstile triggers fire mode , sounds an alarm , and automatically opens the gate , ensuring unobstructed emergency evacuation of visitors and complying with fire safety regulations .



Park Entrance Swing Barrier Gate Multi Channel Fast Entry For Ticket Checking 0

Product Name Park Entrance Swing Turnstile
Barrier Material Acrylic Swing Arm
Passage Frame 304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size 1200*180*900mm (Sizes Can Be Customized)
Traffic Speed 30 People/Minute, Normally Open 40 People/Minute
Service Life ≥5 Million Times
Channel Width 550-850mm
Working Voltage AC220V±10%/50HZ 50W
Relative Temperature ≤95% Not Condensing
Product Power 100W
Weight 40-65KG
Opening Time 0.5 Seconds
Ambient Temperature -30℃-70℃
LED indicator lights 2
Work Environment Indoor And Outdoor
Protection Grade IP43, IP54
Infrared sensor 4 Pairs
Access Control Type RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening
Communication Interface Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP
