Wing Barrier
Created with Pixso. IP43 IP54 Office Building Turnstiles Access Control With Brushless Mechanism

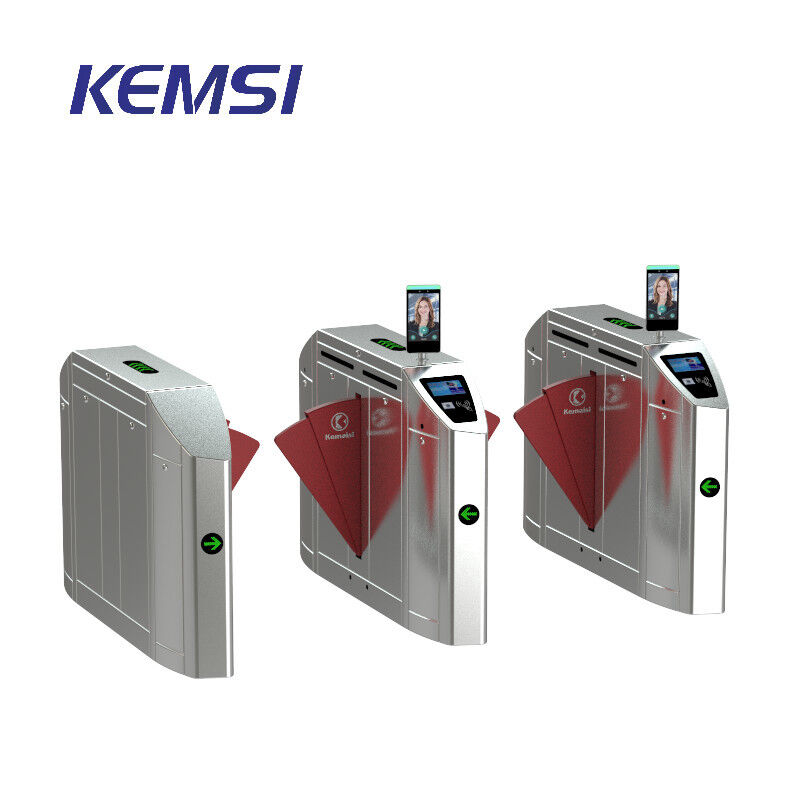

IP43 IP54 Office Building Turnstiles Access Control With Brushless Mechanism

Brand Name: Kemaisi
Model Number: KMS-Y7629
MOQ: 1 pcs
Price: USD680-USD1400
Delivery Time: 5-14 work days
Payment Terms: T/T
Detail Information
Place of Origin:
Guang Dong China
Certification:
CE | RoHS
Document:
Product Name:
Office Building Turnstiles
Passage Frame:
304 Stainless Steel / 201 Stainless Steel With Baked Paint
Channel Width:
550-600mm
Weight:
50-85KG
Opening Time:
0.5 Seconds
Infrared Sensor:
6 Pairs
Product Size:
1500mm*300mm*1000mm (Sizes Can Be Customized)
Packaging Details:
Wooden Case Package
Supply Ability:
1000peices/Month
Highlight:

IP43 Office Building Turnstiles

,

IP54 Office Building Turnstiles

,

Office Building Turnstiles Access Control

Product Description

Office Building Access Control and Attendance System Wing Barrier with Brushless Mechanism



Product Description



Traditional office buildings rely on access cards for entry management . Cards are easily lost , creating security risks . Attendance data needs to be exported from punch clocks or access control systems , and administrative staff spend significant time and effort on statistics . Kemaisi intelligent turnstiles can be deployed at elevator entrances . Each time employees enter or exit , the system automatically records clock in and clock out times , and managers can export attendance reports with a single click from the backend . The device supports facial recognition , allowing employees to pass without carrying an access card . This turnstile features fine workmanship , comprehensive functions , and a high end appearance , specifically designed for high grade venues such as technology companies , large and medium sized office buildings , and clubs . It integrates mechanical , electronic , microprocessor control , and various identification technologies . It is compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more , and optional modules such as safety protection , alarms , and direction indicators can be added to achieve intelligent passage management . The device has a fault self diagnosis and alarm function for easy daily maintenance . Its operating status can be programmed via the built in keypad on the main control board , making operation convenient . In the event of an emergency power failure , the turnstile automatically triggers fire mode , sounds an alarm , and opens the gate , ensuring rapid evacuation of people .



Operating Modes



• Single passage in the set direction



• Bi-directional single passage



• Free passage in the set direction



• Always free or locked



Features and Advantages



1 . Passage as attendance

The system automatically records clock in and clock out times the moment employees enter or exit . Attendance data can be generated with a single click from the backend . Administrators do not need to compile daily statistics , greatly improving work efficiency .



2 . Facial recognition passage

Supports facial recognition verification . Employees can pass by using facial recognition , completely eliminating the security risks and card replacement hassle caused by lost access cards .



3 . Exclusive design for high end venues

With fine workmanship , comprehensive functions , and a high end appearance , it is specifically designed for high end scenarios such as technology companies , large and medium sized office buildings , and clubs , enhancing the company ‘ s professional image .



4 . Integration of multiple identification technologies and expandability

Compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more . Optional modules such as safety protection , alarms , and direction indicators can be added to meet the upgrade needs of intelligent passage management .



5 . Fault self diagnosis and programmable operation

Built in self diagnosis module triggers an automatic alarm when an abnormality occurs . The operating status can be programmed on site via the keypad on the main control board , making operation convenient and reducing maintenance difficulty .



6 . Automatic door opening on power failure for fire safety

In the event of an emergency power failure , the turnstile triggers fire mode , sounds an alarm , and automatically opens the gate , ensuring rapid evacuation of people and complying with fire safety regulations .



IP43 IP54 Office Building Turnstiles Access Control With Brushless Mechanism 0

Product Name Office Building Wing Gate
Barrier Material Acrylic Swing Arm
Passage Frame 304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size 1500mm*300mm*1000mm (Sizes Can Be Customized)
Traffic Speed 30 People/Minute, Normally Open 40 People/Minute
Service Life ≥5 Million Times
Channel Width 550-600mm
Weight 50-85KG
LED indicator 2 pieces
Working Voltage AC220V±10%/50HZ 50W
Relative Temperature ≤95% Not Condensing
Product Power 100W
Opening Time 0.5 Seconds
Ambient Temperature -30℃-70℃
Work Environment Indoor And Outdoor
Protection Grade IP43, IP54
Infrared Sensor 6 Pairs
Access Control Type RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening
Communication Interface Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP

IP43 IP54 Office Building Turnstiles Access Control With Brushless Mechanism 1
