| Brand Name: | Kemaisi |
| Model Number: | KMS-B824 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

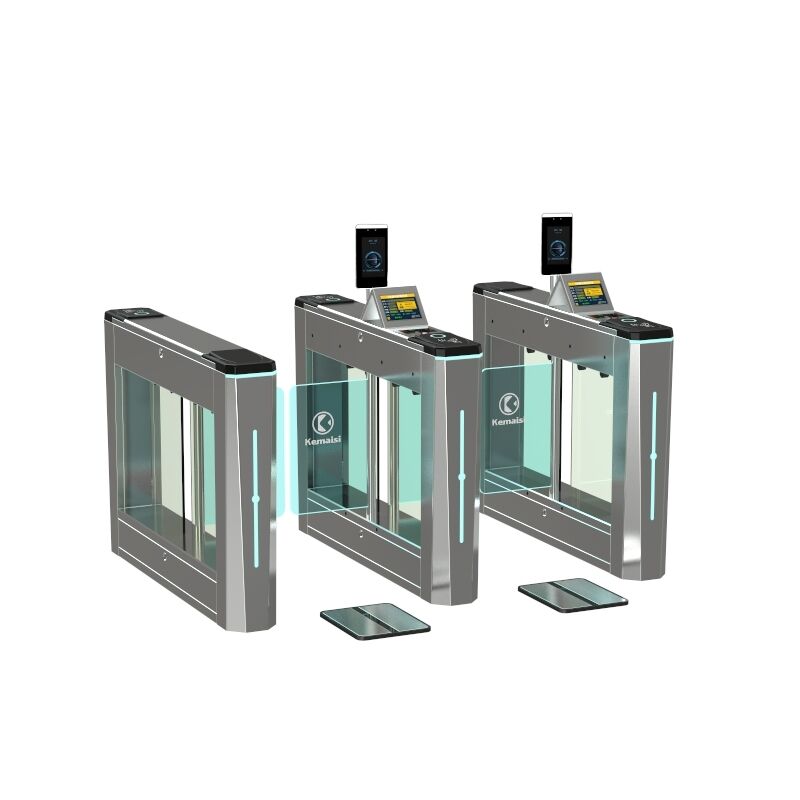

The ESD Swing Barrier Gate is an advanced access control solution designed specifically for Electrostatic Protected Areas (EPA), cleanrooms, semiconductor fabs, electronics manufacturing plants, PCB assembly lines, laboratories, and other static-sensitive environments. By combining ESD wrist strap testing, footwear grounding verification, and intelligent access control into one integrated system, it ensures that only personnel who meet predefined electrostatic safety requirements can enter restricted production areas.
Featuring a slim stainless steel cabinet, tempered glass swing panels, LED status indicators, and support for face recognition, RFID cards, QR codes, and fingerprint authentication, this system helps manufacturers improve ESD compliance, protect sensitive electronic components, and automate employee access management.
Whether you're operating an SMT workshop, semiconductor facility, or medical cleanroom, this ESD swing barrier enhances safety, efficiency, and operational control.
Electrostatic discharge (ESD) can permanently damage sensitive electronic devices and reduce production yields. Our ESD turnstile verifies that personnel are properly grounded before entry, helping organizations maintain strict electrostatic protection standards.
The system automatically measures personnel grounding status before granting access.
Users who fail the ESD test are denied access until the issue is corrected.
The turnstile supports multiple identity verification methods, allowing businesses to customize access rules based on security requirements.
Identity authentication and ESD verification can be combined into a single workflow for enhanced security.
Powered by a high-performance brushless motor, the barrier provides smooth, reliable operation with minimal noise.
This ensures efficient pedestrian flow without compromising safety.
The cabinet is manufactured from SUS304 stainless steel, providing excellent resistance to corrosion, wear, and industrial environments.
The slim-profile housing is ideal for modern production facilities where space and aesthetics matter.
Integrated LED indicators provide clear visual feedback for users.
The illuminated interface improves usability while reducing operator intervention.
During emergencies or power failures, the swing barriers automatically unlock to allow free evacuation, helping facilities comply with fire safety regulations and workplace safety standards.
The built-in ESD controller supports customizable resistance thresholds based on ANSI/ESD S20.20 and IEC 61340 requirements.
Threshold values can be configured to match your company's ESD control procedures.
| Product Name | ESD Swing Turnstile |
|---|---|
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200*200*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-850mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Weight | 40-65KG |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
The ESD Swing Barrier Gate integrates seamlessly with enterprise security and manufacturing systems.
Open communication protocols make integration with third-party software simple and reliable.
This ESD access control system is ideal for a wide range of electrostatic-sensitive environments:
Protect wafers, chips, and integrated circuits from electrostatic discharge during production.
Ensure operators are properly grounded before entering PCB and SMT production lines.
Maintain ESD compliance in pharmaceutical, medical device, and precision manufacturing cleanrooms.
Reduce electrostatic risks during PCB fabrication and assembly.
Protect sensitive display modules and electronic assemblies from ESD damage.
Improve personnel safety and reduce electrostatic hazards in battery production facilities.
Support strict quality control and contamination prevention in regulated production environments.
Provide secure access with integrated ESD testing for high-value testing and development facilities.
As a professional ESD Swing Barrier Gate Manufacturer, we offer flexible OEM and ODM services tailored to your project requirements.
An ESD Swing Barrier Gate is an access control system that combines personnel authentication with electrostatic discharge testing. The gate opens only after users successfully pass the required ESD grounding test.
The system supports wrist strap testing, dual wrist strap testing, footwear resistance testing, heel grounder testing, and combined grounding verification.
Yes. It supports face recognition, RFID cards, fingerprint scanners, QR codes, barcode readers, and mobile credentials.
Yes. The controller supports TCP/IP, RS485, and Dry Contact communication, making it compatible with most MES, ERP, HR, and access control platforms.
Absolutely. We provide OEM and ODM services, including hardware customization, branding, software integration, and communication protocol development.
Looking for a reliable ESD Swing Barrier Gate Manufacturer or Cleanroom Access Control System Supplier?
Contact us today to discuss your cleanroom, semiconductor, or electronics manufacturing access control requirements.
