| Brand Name: | Kemaisi |
| Model Number: | KMS-Y718 |
| MOQ: | 1 pcs |
| Price: | USD320-USD640 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

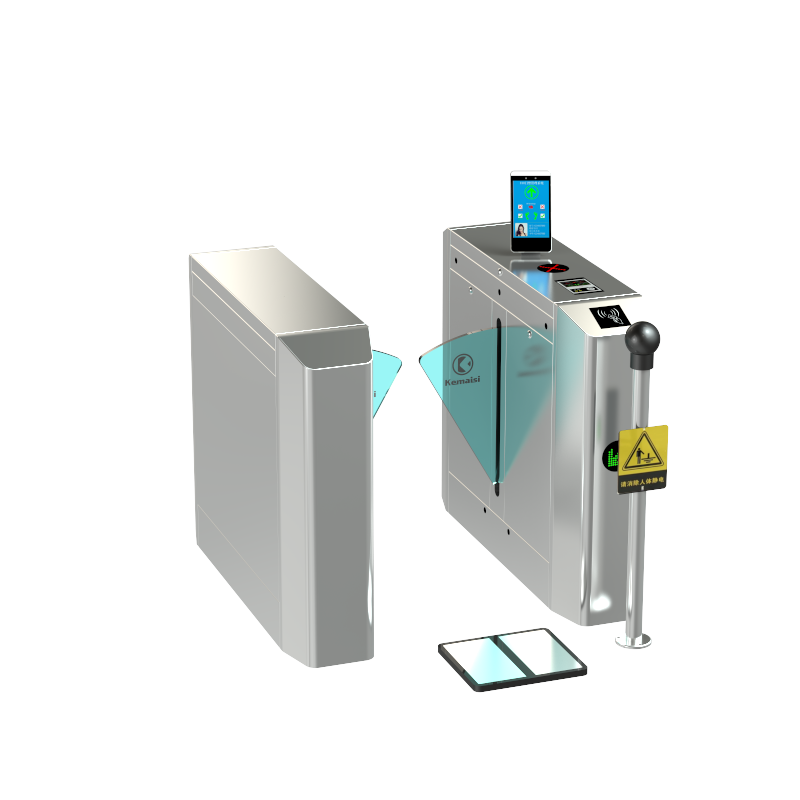

Protect your Electrostatic Protected Area (EPA) with our ESD Swing Gate Turnstile, an intelligent access control solution that combines electrostatic discharge (ESD) testing with secure pedestrian management.
Designed for electronics manufacturing, semiconductor plants, cleanrooms, laboratories, pharmaceutical facilities, and precision production environments, this ESD access gate ensures that only personnel who successfully pass ESD wrist strap and footwear testing are granted access.
By integrating ESD testing, access control, attendance management, and swing barrier technology, this solution helps reduce electrostatic damage, improve compliance with ESD standards, and enhance workplace security.
The built-in ESD tester accurately measures:
Only users who pass the ESD test can unlock the swing gate for entry.
The intelligent swing gate automatically opens after successful authentication and ESD verification.
Compatible with:
The system improves employee throughput while maintaining strict ESD compliance.
Supports multiple authentication methods:
Access records can be uploaded to the management platform for attendance and security tracking.
Manufactured from premium 304 stainless steel, the gate offers:
Suitable for both indoor and controlled industrial environments.
Compared with tripod turnstiles, the swing barrier provides:
| Product Name | ESD Wing Gate |
|---|---|
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*300mm*980mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
The ESD Swing Gate is widely used in:
Employee authenticates identity using:
Employee performs ESD test:
System automatically analyzes ESD values.
If all test results meet preset standards, the swing barrier opens automatically.
Access event and ESD test data are recorded in the management system.
Our ESD Turnstile can be customized with:
Our ESD Swing Gate combines electrostatic protection, intelligent access management, and pedestrian control into one integrated solution.
With years of experience in access control manufacturing, we provide reliable products, flexible customization, and professional OEM/ODM services for global distributors, system integrators, and industrial customers.
Whether you need a single entrance solution or a complete ESD management system for your factory, we can deliver a solution tailored to your project.
An ESD swing gate is an intelligent access control system that combines electrostatic discharge testing with a pedestrian swing barrier. Personnel must pass ESD testing before entering an Electrostatic Protected Area (EPA).
Yes. The system supports face recognition, RFID cards, fingerprints, QR codes, and other authentication methods.
Yes. The wrist strap resistance range and footwear resistance thresholds can be configured according to your company's ESD requirements.
Yes. The turnstile supports TCP/IP, RS485, Wiegand, and can be integrated with attendance systems, access control software, MES, ERP, and third-party platforms.
Yes. We provide OEM and ODM services, including logo customization, housing design, software development, communication protocols, and project-based solutions.
Looking for a reliable ESD Swing Gate Turnstile Manufacturer?
Contact us today to receive:
Our engineering team is ready to help you build a complete ESD access control solution for your facility.
