| Brand Name: | Kemaisi |
| Model Number: | KMS-G6604 |
| MOQ: | 1 pcs |
| Price: | USD570-USD1140 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

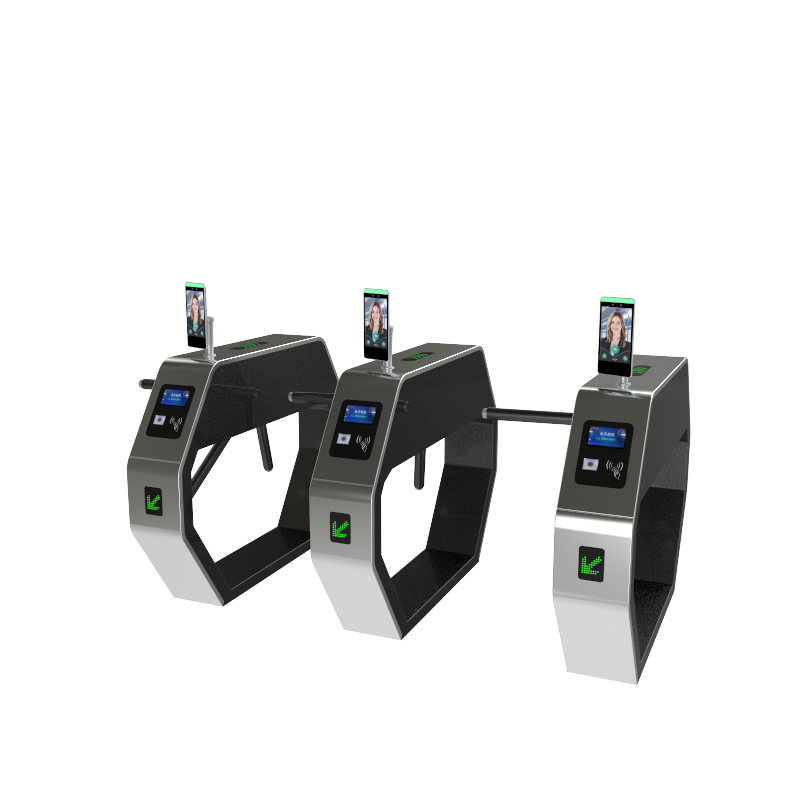

The Luxury Bridge Tripod Turnstile Gate is a premium pedestrian access control solution designed to provide secure, efficient, and intelligent entrance management for commercial buildings, offices, factories, schools, transportation hubs, and public facilities. Featuring a sleek bridge-style cabinet, durable stainless steel construction, and compatibility with advanced authentication technologies, this tripod turnstile combines modern aesthetics with outstanding security performance.
Designed for high-traffic environments, the turnstile ensures smooth pedestrian flow while effectively preventing unauthorized access, tailgating, and reverse passage. Whether integrated into a new smart building or upgrading an existing entrance system, this Tripod Turnstile Gate offers long-term reliability and flexible access control integration.
Unlike conventional tripod turnstiles, this luxury bridge model features a streamlined cabinet with a modern architectural appearance. The spacious top panel allows easy installation of face recognition terminals, QR code scanners, RFID readers, and other intelligent access devices while enhancing the overall aesthetics of the entrance.
Built from high-quality SUS304 stainless steel, the cabinet is resistant to corrosion, scratches, and impact, ensuring reliable performance in demanding environments.
The turnstile is compatible with a wide range of access control technologies, allowing flexible deployment for different projects.
Standard communication interfaces ensure seamless integration with third-party software platforms.
The precision tripod mechanism allows only one authorized person to pass at a time, significantly improving entrance security.
Ideal for environments requiring controlled pedestrian access.
The advanced transmission mechanism ensures smooth and quiet operation while supporting continuous high-frequency usage.
Suitable for continuous operation in busy commercial facilities.
For emergency situations, the turnstile supports automatic unlocking or optional automatic arm drop when power is lost or a fire alarm is triggered, allowing quick evacuation and compliance with modern fire safety regulations.
| Product Name | Tripod Turnstile |
|---|---|
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*240mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
The tripod turnstile is designed to integrate with most modern security systems, including:
The Luxury Bridge Tripod Turnstile is widely used in:
Its elegant appearance makes it particularly suitable for premium commercial environments where both security and aesthetics are important.
To meet different project requirements, optional accessories include:
As a professional Tripod Turnstile Manufacturer, we specialize in intelligent pedestrian entrance control solutions for customers worldwide.
We offer:
Whether you need a single entrance gate or a complete access control solution for a large-scale project, our experienced engineering team can provide tailored products and technical support.
Looking for a reliable Luxury Tripod Turnstile Manufacturer, Bridge Tripod Turnstile Supplier, or Smart Access Control Gate Factory?
Contact us today to receive product catalogs, technical specifications, project consultation, and competitive factory pricing. Our team is committed to delivering intelligent, secure, and reliable pedestrian access control solutions for customers worldwide.
