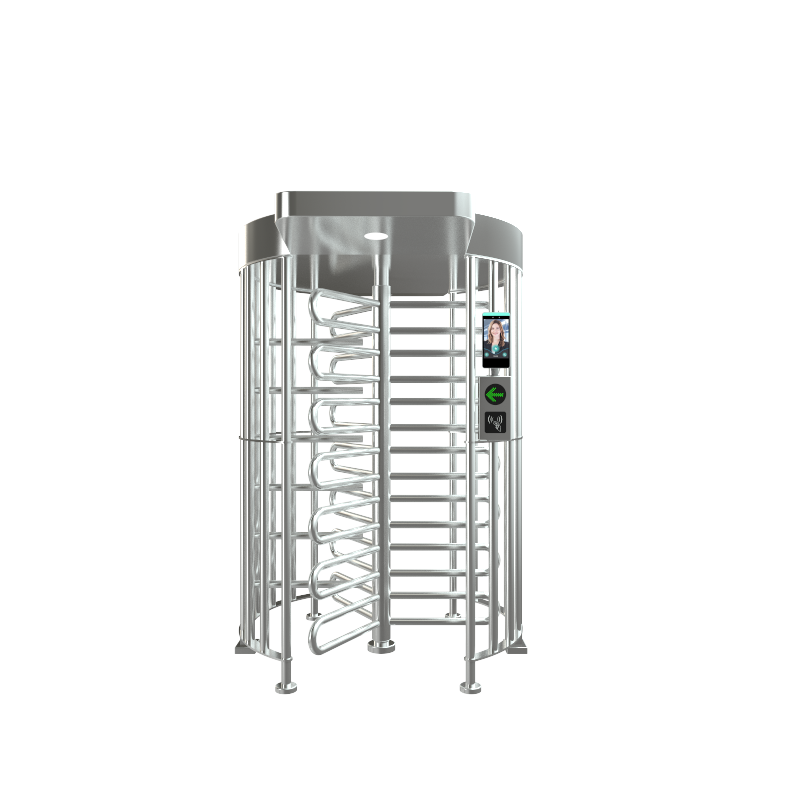

Full Height Turnstile Equipped With An Automatic Time Based Billing System

Full Height Turnstile Equipped With An Automatic Time Based Billing System

Brand Name:	Kemaisi
Model Number:	KMS-Z2526
MOQ:	1 pcs
Price:	USD1000-USD2000
Delivery Time:	5-14 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guang Dong China

Certification:

CE | RoHS

Product Name:

Full Height Turnstile

Traffic Speed:

30 People/Minute

Pass Width:

600mm

Rotation Angle Per Step:

120°

Passage Frame:

304 Stainless Steel / 201 Stainless Steel With Baked Paint

Product Size:

1500mm*1500mm*2260mm

Packaging Details:

Wooden Case Package

Supply Ability:

1000peices/Month

Highlight:

Full Height Turnstile with automatic billing

Time based billing turnstile

Full Height Turnstile with billing system

Product Description

Full Height Turnstile Equipped With An Automatic Time Based Billing System

This intelligent full height rotating turnstile is specifically designed for unattended court access control in outdoor environments. It is compatible with identification systems such as QR code, NFC, and facial recognition, allowing flexible integration into various access control and billing systems. It supports automatic time based billing according to entry and exit times, enabling precise fee management.

The 120 degree angle structure effectively prevents tailgating and resists forced disassembly. The mechanism and rotating arms are secured with special fasteners, providing anti theft and anti tampering capabilities. The anti pinch and anti collision function uses a dual mechanism of mechanical slipping and infrared detection: when movement is obstructed, the rotating torque is automatically reduced and swinging stops, ensuring pedestrian safety.

Upon power failure, the turnstile automatically unlocks and switches to mechanical free passage mode, fully complying with fire evacuation requirements. This turnstile integrates security, billing, durability, and intelligence, making it an ideal choice for unmanned court entrance management.

Features and Advantages

Automatic time based billing: The access control device accurately records entry and exit times, automatically calculates usage duration, and generates fees. Suitable for time based billing scenarios such as courts, reducing manual intervention.
120 degree anti tailgating and anti violence: The 120 degree rotating design effectively prevents tailgating and unauthorised entry. At the same time, it enhances structural resistance against forced disassembly, improving equipment security in unattended outdoor environments.
Anti theft and anti tamper mechanism: The mechanism and rotating arms are connected using special fasteners that cannot be removed without dedicated tools. This effectively prevents theft or vandalism of components, reducing maintenance risks.
Dual anti pinch and anti collision: Mechanical slipping and infrared detection work together: when resistance is encountered, the mechanical part automatically slips to reduce motor torque, while infrared sensors detect the pedestrian's position in real time and stop the swinging motion. Collision force is kept within a safe range, protecting pedestrian safety.
Automatic unlocking on power failure: When power fails, the gate automatically unlocks and switches to mechanical free passage mode, ensuring rapid evacuation in emergencies and meeting fire safety code requirements.
High compatibility with multiple identification systems: Seamlessly integrates with identification devices such as QR code, NFC, and facial recognition. Easily interfaces with existing access control or billing systems to achieve intelligent entry and exit management.

Product Specifications

Product Name	Full Height Turnstile
Protection Grade	IP43, IP54
Communication Interface	I/O, RS485
Traffic Speed	30 People/Minute
Pass Width	600mm
Rotation Angle Per Step	120°
Barrier Material	304 Stainless Steel Round Tube / 201 Stainless Steel With Baked Paint
Passage Frame	304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size	1500mm × 1500mm × 2260mm
Working Voltage	220V ± 10%
Ambient Temperature	-20℃ to 65℃
Relative Humidity	≤95% Not Condensing
Work Environment	Indoor and Outdoor
Product Power	50W
Access Control Type	RFID/IC/ID Card, Face/Iris Recognition/Fingerprint Identification, QR Code, Mobile Phone/NFC, Password, Remote Door Opening
Communication Interface	Relay switch signal/12V level signal/12V pulse signal with pulse width >100ms; RS485 or TCP/IP

Frequently Asked Questions

Q1: What is a full height turnstile gate?

A full height turnstile gate is a high-security pedestrian access control barrier that uses full-height rotating arms to prevent unauthorized entry. It is commonly used in places requiring strict security management.

Q2: What is the difference between a full height turnstile and a tripod turnstile?

A tripod turnstile only controls access at waist height, while a full height turnstile provides a complete barrier that prevents climbing over or bypassing, making it more suitable for high-security environments.

Q3: Can this turnstile work with facial recognition systems?

Yes. The full height turnstile supports integration with facial recognition, fingerprint scanners, RFID readers, QR code systems, and other access control technologies.

Q4: Is this turnstile suitable for outdoor use?

Yes. With a durable stainless steel structure and weather-resistant design, it can be installed in outdoor environments such as stadium entrances, factories, and construction sites.

Q5: How many people can pass through the turnstile?

The traffic capacity depends on the model and access management settings. It is designed for continuous pedestrian flow in high-volume applications.

Q6: Does the turnstile support emergency opening?

Yes. The system can be connected with fire alarm systems and emergency controls to allow rapid evacuation when required.
