Community Entrance Security Management Sliding Gate Turnstile

Brand Name: Kemaisi
Model Number: KMS-T5211
MOQ: 1 pcs
Price: USD2000-USD4000
Delivery Time: 5-14 work days
Payment Terms: T/T
Detail Information
Place of Origin:
Guang Dong China
Certification:
CE | RoHS
Product Name:
Sliding Turnstile
Passage Frame:
304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size:
2000mm*800mm*2360mm
Channel Width:
550mm-1000mm
Product Power:
100W
Infrared Sensor:
6 Pairs
Packaging Details:
Wooden Case Package
Supply Ability:
1000peices/Month
Highlight:

sliding gate turnstile entrance security

,

community security sliding gate turnstile

,

management sliding gate turnstile system

Product Description

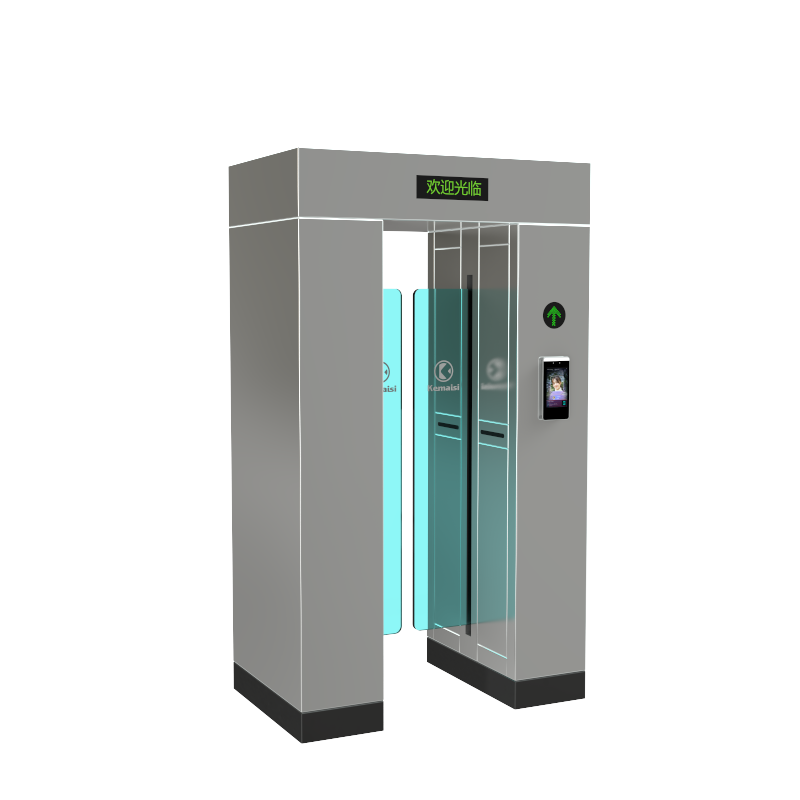

Community Entrance Security Management Sliding Gate Turnstile
Advanced Security Solution

Stranger tailgating in residential communities has consistently challenged property management teams. When residents use access cards for entry, unauthorized individuals can follow closely behind, creating security gaps that visual monitoring cannot reliably prevent or trace. The Kemaisi anti-tailgating sliding gate system addresses this critical vulnerability through precise "one person per gate" identification technology, effectively protecting resident safety while reducing property management costs.

Following successful facial recognition, the gate remains closed while the system automatically scans for potential tailgaters. If unauthorized entry is detected, the device activates audible alarms and maintains closure, simultaneously alerting the resident to the security breach. The gate opens normally only after the tailgater exits the detection zone, ensuring secure passage and eliminating tailgating concerns.

This sophisticated device integrates mechanical engineering, electronic systems, microprocessor controls, and multiple identification technologies. It supports compatibility with IC cards, ID cards, barcode cards, fingerprint scanners, and optional modules including alarm systems and directional indicators, enabling comprehensive intelligent passage control and management. This sliding gate represents the ideal solution for enhancing community security while optimizing the resident access experience.

Key Features and Advantages
  • One Person Per Gate Identification: Following successful authentication, the system automatically scans the sensing area for tailgaters. Detection triggers immediate alarms and gate closure. Normal operation resumes only after unauthorized individuals withdraw, physically preventing tailgating incidents.
  • Voice Alarm Prompts: When tailgating is detected, the system activates audible deterrents while providing voice notifications to residents stating "someone is tailgating." This multi-alert mechanism ensures timely awareness and preventive action, reinforcing security consciousness throughout the community.
  • Multi-Method Compatibility: Supports integration with various access control systems including IC cards, ID cards, barcode cards, and fingerprint recognition. Optional alarm devices and directional indicators accommodate customized control requirements across diverse operational scenarios.
  • Intelligent Control Management: Combines mechanical, electronic, microprocessor, and identification technologies to deliver comprehensive intelligent passage control. The high-tech appearance and rigorous security protocols enhance community professionalism and resident safety assurance.
  • Fault Self-Diagnosis: Integrated self-diagnostic and alarm functions enable real-time operational status monitoring. Abnormal conditions trigger proactive alerts, allowing maintenance teams to rapidly identify issues. Routine maintenance requires no specialized tools, significantly reducing operational expenses.
Technical Specifications
Specification Details
Product Name Sliding Turnstile
Barrier Material Acrylic Swing Arm
Passage Frame 304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size 2000*800*2360mm (Custom Sizes Available)
Traffic Speed 30 People/Minute, Normally Open 40 People/Minute
Service Life ≥5 Million Cycles
Channel Width 550-1000mm
Working Voltage AC220V±10%/50HZ 50W
Relative Temperature ≤95% Not Condensing
Product Power 100W
Opening Time 0.5 Seconds
Ambient Temperature -30℃-70℃
Work Environment Indoor and Outdoor
Protection Grade IP43, IP54
Infrared Sensor 6 pairs
Access Control Type RFID/IC/ID card, Face/Iris recognition, Fingerprint identification, QR code, Mobile phone/NFC, Password, Remote door opening
Communication Interface Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP
Sliding gate turnstile installation and operation diagram
Frequently Asked Questions
What is a full height turnstile gate?

A full height turnstile gate is a high-security pedestrian access control barrier that uses full-height rotating arms to prevent unauthorized entry. It is commonly used in places requiring strict security management.


What is the difference between a full height turnstile and a tripod turnstile?

A tripod turnstile only controls access at waist height, while a full height turnstile provides a complete barrier that prevents climbing over or bypassing, making it more suitable for high-security environments.


Can this turnstile work with facial recognition systems?

Yes. The full height turnstile supports integration with facial recognition, fingerprint scanners, RFID readers, QR code systems, and other access control technologies.


Is this turnstile suitable for outdoor use?

Yes. With a durable stainless steel structure and weather-resistant design, it can be installed in outdoor environments such as stadium entrances, factories, and construction sites.


How many people can pass through the turnstile?

The traffic capacity depends on the model and access management settings. It is designed for continuous pedestrian flow in high-volume applications.


Does the turnstile support emergency opening?

Yes. The system can be connected with fire alarm systems and emergency controls to allow rapid evacuation when required.

Why Choose Our Full Height Turnstile Gate?

Selecting appropriate pedestrian security gates is essential for facility protection. Our full height turnstile system combines mechanical strength, smart access control compatibility, and reliable performance to deliver professional security entrance solutions.

Whether you require access control for factories, stadiums, government buildings, transportation stations, or restricted facilities, this high-security turnstile provides effective pedestrian access management.

Request a Free Quote

Looking for a reliable full height turnstile gate supplier? Contact us today for:

  • Free product consultation
  • Customized access control solutions
  • Competitive factory pricing
  • Technical support
  • Project-based recommendations

Request your free quote now and enhance your facility security with our professional full height turnstile access control system.

Full height turnstile gate in operational environment
