| Brand Name: | Kemaisi |
| Model Number: | KMS-G6520 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

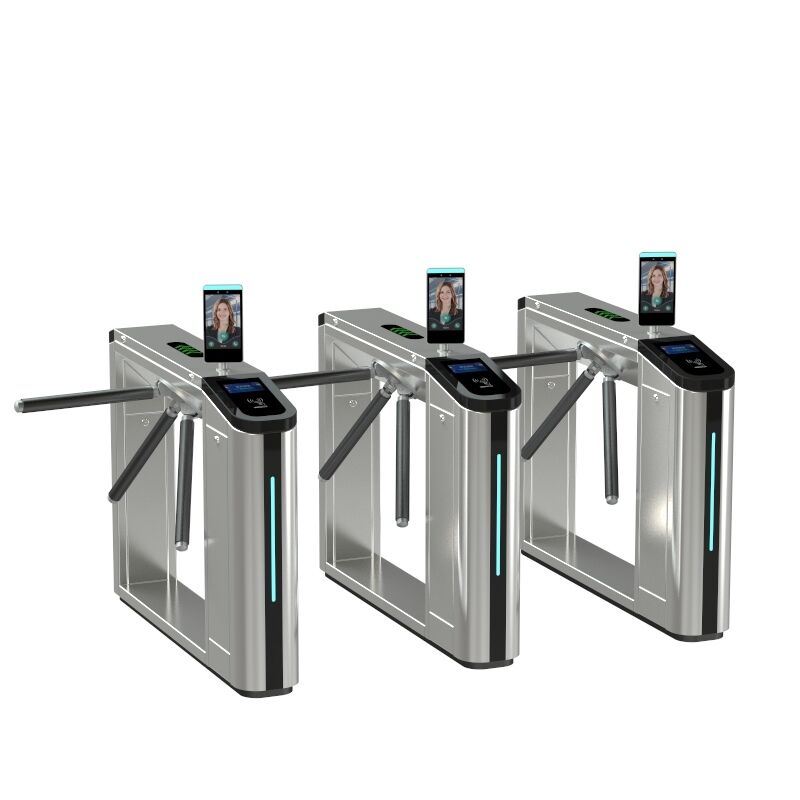

The Kemaisi intelligent turnstile is specifically designed for timed billing amusement venues, using QR code wristbands for precise time-limited control – timing starts automatically the moment the wristband is scanned at entry, and the turnstile automatically blocks passage when the play time expires, eliminating the need for manual reminders. Operators can flexibly set an "overtime supplement ticket" rule, allowing customers to re-enter after purchasing a supplement ticket at the front desk or a self-service kiosk. The配套 wristbands feature anti-tamper and tear-proof properties: once forcibly opened or torn, the QR code is immediately damaged and becomes invalid, preventing the wristband from being transferred to another person at the source. Customers scan their own QR codes to pass through, eliminating manual ticket checking. Even during peak hours, passage remains smooth and congestion-free, significantly reducing on-site staff pressure. All passage data is synchronised to the cloud in real time. The system automatically records entry time, exit time, and remaining time for each wristband. Operators can view the number of people inside and ticketing status at any time via a mobile phone or computer. The mechanism uses a unique mechanical structure, operating smoothly with low noise and a long service life. When power fails, the gate automatically unlocks and switches to mechanical mode, complying with fire evacuation requirements. The system also has an automatic reset function: after gaining access permission, if the user does not pass within the set time, the permission is automatically cancelled and the system resets.
Timing starts automatically from the moment the wristband is scanned at entry. When the play time expires, the turnstile automatically blocks passage, requiring no manual intervention from staff. Operators can flexibly set overtime supplement ticket rules, allowing re-entry after purchase, achieving fully automated ticketing management.
The wristbands feature anti-tamper and tear-proof properties. Once forcibly opened or torn, the QR code is immediately damaged and becomes invalid. One wristband per person effectively prevents visitors from transferring wristbands to others or sharing one ticket among multiple people, firmly protecting ticket revenue.
Visitors scan their own wristband QR codes to pass through the turnstile throughout the entire process, with no manual ticket checking or tearing required. Entry remains fast and smooth even during peak hours, significantly reducing on-site staff pressure and allowing the team to focus on in-venue service and safety management.
All passage data is synchronised to the cloud in real time. The system automatically records entry time, exit time, and remaining time for each wristband. Operators can view real-time occupancy, ticket sales, and remaining inventory at any time via a mobile phone or computer, providing accurate data support for flow control decisions and promotional campaigns.
The internal mechanism adopts a unique mechanical design, operating smoothly with extremely low noise, without disturbing the joyful atmosphere of the amusement venue. It maintains excellent performance under high-frequency start-stop cycles, significantly reducing maintenance costs.
In the event of a sudden power failure, the gate automatically unlocks and switches to mechanical free-passage mode, ensuring unobstructed emergency evacuation and fully complying with fire safety regulations. The system also features an automatic reset function: after gaining access permission, if the user does not pass within the set time, the permission is automatically cancelled and the system resets, preventing QR code screenshots from being reused or misappropriated.
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. The cabinet is made from corrosion-resistant SUS304 stainless steel. An IP65 waterproof version is available for outdoor environments.
Absolutely. It supports face recognition, RFID cards, fingerprint scanners, QR code readers, barcode scanners, and other biometric devices.
The tripod arm can automatically drop (optional), allowing people to exit safely during emergencies.
Yes. We offer OEM and ODM services including custom logos, packaging, cabinet design, firmware, and software integration.
Yes. The turnstile supports dry contact, RS485, TCP/IP, and can integrate with most access control software and hardware platforms.
