| Brand Name: | Kemaisi |
| Model Number: | KMS-G6526 |
| MOQ: | 1 pcs |
| Price: | USD500-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Indoor children ' s playgrounds , trampoline parks , and amusement parks commonly face ticketing loopholes such as paper tickets being easily transferable or multiple people using the same ticket in rotation , directly eroding operators ' revenue . Manual ticket checking is inefficient , causing congestion at entrances during peak hours and significantly diminishing the visitor experience . The Kemaisi intelligent turnstile is specifically designed for timed billing amusement venues , effectively preventing ticket sharing through flexible entry and exit frequency management . Operators can configure multiple modes according to their business strategies , for example , " single entry plus one exit for toilet use " or " multiple entries and exits " , which not only meets the actual needs of families but also prevents one ticket from being used by several people in rotation . The specially designed QR code wristband used has anti-tamper and tear-proof features : once forcibly opened or cut , the QR code inside the wristband is immediately damaged and becomes invalid , preventing further passage . This avoids ticket revenue loss caused by wristbands being easily removed and transferred to others , or being used again after deliberate damage . Customers scan their own QR codes to pass through , eliminating manual ticket checking . Even during peak hours , passage remains smooth and congestion-free , significantly reducing on-site staff pressure . All passage data is synchronised to the cloud in real time . The system automatically records the entry time , exit time , and remaining usage count for each wristband . Operators can view the number of people inside and ticketing status at any time via a computer . The turnstile mechanism uses a unique mechanical structure , operating smoothly with low noise and a long service life . When power fails , the gate automatically unlocks and switches to mechanical free passage mode , fully complying with fire evacuation requirements .
Operators can configure multiple ticketing modes according to their business strategies – " single entry plus one exit for toilet use " meets the actual needs of families , while " multiple entries and exits " is suitable for all-day play tickets . The system strictly enforces preset usage counts , preventing one ticket from being used by several people in rotation and protecting ticket revenue .
The specially designed QR code wristband features anti-tamper and tear-proof properties . Once forcibly opened or cut , the QR code is immediately damaged and becomes invalid , preventing further passage . This effectively avoids ticket revenue loss caused by wristbands being removed , transferred to others , or used again after deliberate damage .
Visitors scan their own wristband QR codes to pass through the turnstile throughout the entire process , with no manual ticket checking required . Entry remains fast and smooth even during peak hours , significantly reducing on-site staff pressure and allowing the team to focus on in-venue service and safety management .
All passage data is synchronised to the cloud in real time . The system automatically records entry time , exit time , and remaining usage count for each wristband . Operators can view real-time occupancy and ticketing sales status at any time via a computer , providing accurate data support for flow control decisions and promotional campaigns .
The internal mechanism adopts a unique mechanical design , operating smoothly with extremely low noise , without disturbing the joyful atmosphere of the amusement venue . It maintains excellent performance under high-frequency start-stop cycles , significantly reducing maintenance costs .
In the event of a sudden power failure , the gate automatically unlocks and switches to mechanical free-passage mode , fully opening the passage to ensure rapid and unobstructed evacuation of people in emergencies , fully complying with fire safety regulations .

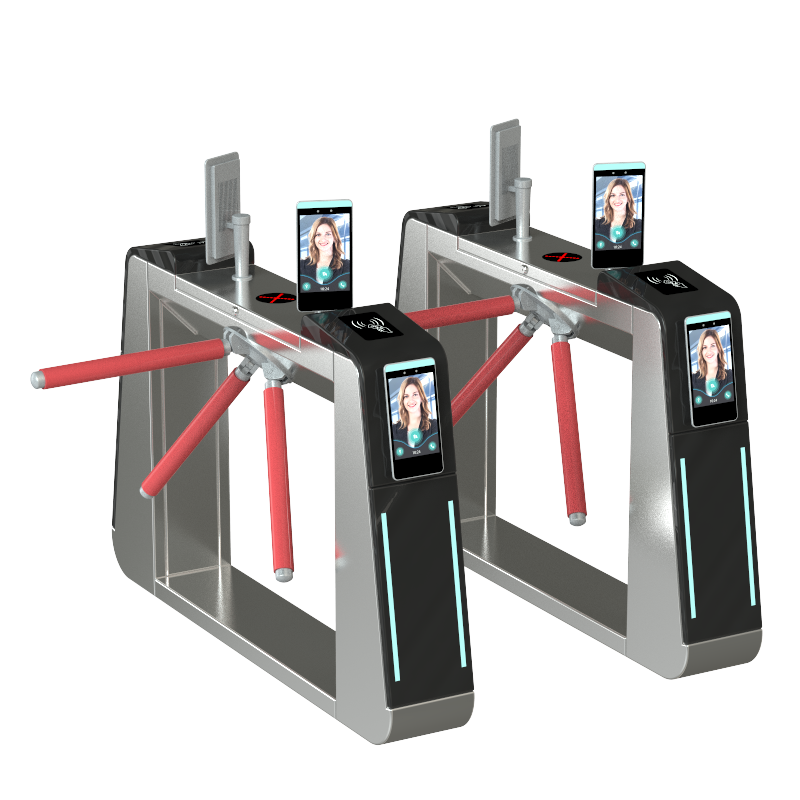

| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
A smart tripod turnstile is a waist-high pedestrian access gate that uses rotating tripod arms and integrates with access control technologies such as RFID cards, face recognition, QR codes, and fingerprint authentication.
Yes. The KMS-G6526 supports face recognition terminals, RFID card readers, fingerprint scanners, QR code readers, barcode scanners, and mobile access credentials.
The standard model is designed for indoor or covered outdoor use. Outdoor weatherproof versions are available upon request.
Yes. It can be configured for single-direction or bi-directional pedestrian control.
Yes. We offer custom branding, cabinet design, communication protocol integration, software customization, and project-specific engineering solutions.
