| Brand Name: | Kemaisi |
| Model Number: | KMS-G6528 |
| MOQ: | 1 pcs |
| Price: | USD440-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Exhibition halls often face severe overcrowding and prominent safety hazards during free admission days or popular special exhibitions . On site , there is no accurate means of counting the number of people . Staff can only estimate by sight , unable to know the real time number of people inside , let alone determine whether the capacity limit has been exceeded , and thus cannot decide when to stop allowing entry . The Kemaisi intelligent turnstile provides a complete visitor flow control solution for venues : it supports online ticket purchase followed by fast QR code , RFID card , or mobile NFC scanning for entry , with a throughput speed of over 30 people per minute . It can also be configured with multi lane flow distribution to achieve differentiated permission management for VIPs , members , and ordinary reservation visitors . Sensors inside the turnstile separately count entry and exit numbers , accurately calculating the real time number of people inside and dynamically displaying remaining capacity . When the number reaches a preset threshold , an automatic alarm is triggered . The system can be configured with a “ one out , one in ” rotation mechanism , or directly close the entry lanes and switch to one way exit mode , achieving precise flow limiting . The backend provides a data dashboard , presenting refined data such as peak entry hours , visitor flow trends , dwell time heat levels in specific exhibition areas , and average visit duration in real time . The mechanism uses a unique mechanical structure , operating smoothly with low noise and a long service life . When power fails , the gate automatically unlocks and switches to mechanical mode , complying with fire safety requirements . It also features automatic reset and infrared anti tailgating functions .
Supports multiple ticket carriers such as QR code , RFID card , and mobile NFC scanning . Throughput speed can reach over 30 people per minute . Multi lane flow distribution can be configured to achieve differentiated permission management for VIPs , members , and ordinary reservation visitors , effectively alleviating entrance congestion .
Sensors inside the turnstile separately count entry and exit numbers , accurately calculating the real time number of people inside and remaining capacity . When the number reaches a preset threshold , an automatic alarm is triggered , helping managers respond in a timely manner and eliminating the risk of overcrowding .
A precise “ one out , one in ” rotation logic can be set to ensure controllable numbers . Alternatively , the entry lanes can be directly closed and switched to one way exit mode to achieve mandatory flow limiting , ensuring venue safety .
Provides an intuitive backend data dashboard , allowing management to view operational data in real time , such as peak entry hours , visitor flow trends , dwell time heat levels in specific exhibition areas , and average visit duration . This provides a decision making basis for scheduling , booth layout , and ticketing strategies .
The unique mechanical structure ensures smooth operation , low noise , high reliability , and a long service life , reducing maintenance frequency .
When power fails , the gate automatically opens to mechanical free passage mode , ensuring unobstructed emergency evacuation of people and meeting fire safety regulations .
If the authorised user does not pass within the set time after gaining access permission , the system automatically cancels the authorisation and resets . Built in infrared detection effectively identifies and prevents tailgating , enhancing passage security .

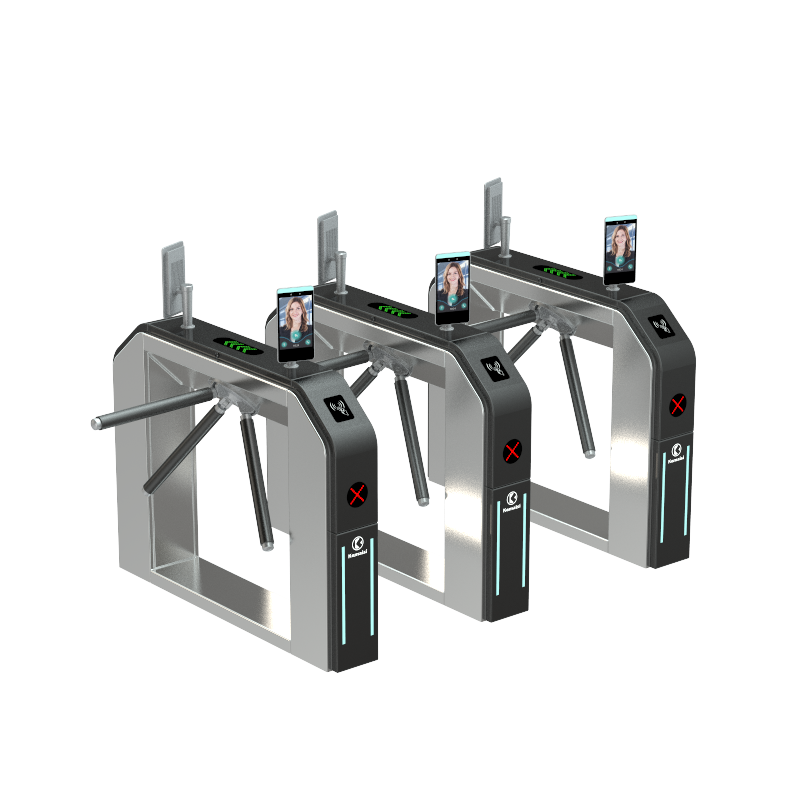

| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1300mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
The KMS-G6528 supports RFID cards, face recognition, fingerprint scanners, QR codes, barcode readers, and mobile credentials.
Yes. It supports TCP/IP, RS485, Wiegand, and relay output, making it compatible with most access control and time attendance platforms.
The standard version is designed for indoor or covered outdoor environments. Outdoor weatherproof customization is available upon request.
Yes. The turnstile can be configured for either one-way or two-way pedestrian access.
Yes. We provide customized branding, cabinet design, software integration, communication protocol development, and project-specific solutions.
Looking for a reliable Tripod Turnstile Manufacturer?
Contact us today to receive:
Factory Direct Pricing
OEM & ODM Customization
Technical Consultation
Fast Production
Worldwide Shipping
Professional After-Sales Support
Our experienced engineering team is ready to help you build a secure, intelligent, and efficient pedestrian access control system tailored to your project.
