| Brand Name: | Kemaisi |
| Model Number: | KMS-G6739 |
| MOQ: | 1 pcs |
| Price: | USD650-USD1300 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

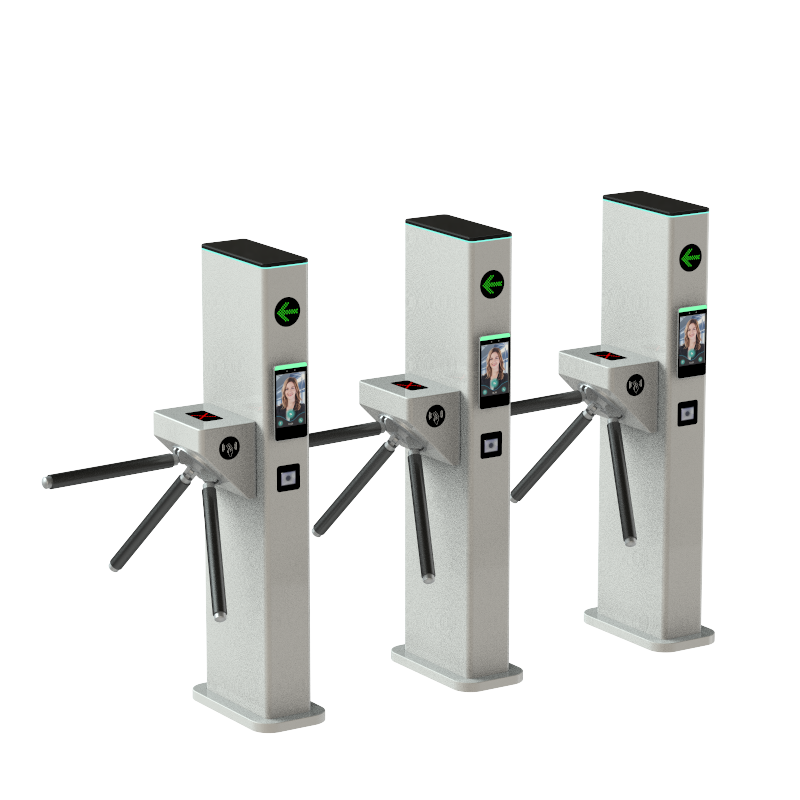

During free admission days or popular special exhibitions , exhibition halls often face overcrowding and prominent safety hazards . On site , there is no accurate means of counting the number of people . Staff can only estimate by sight , unable to know the real‑time number of people inside , let alone determine whether the capacity limit has been exceeded , and thus cannot decide when to stop allowing entry . The Kemaisi intelligent turnstile provides a complete visitor flow control solution for venues : it supports online ticket purchase followed by fast QR code , RFID card , or mobile NFC scanning for entry , with a throughput speed of over 30 people per minute . Multi‑lane flow distribution can be configured to achieve differentiated lane management for VIPs , members , and ordinary reservation visitors . Sensors inside the turnstile separately count entry and exit numbers , accurately calculating the real‑time number of people inside and dynamically displaying remaining capacity . When the number reaches a preset threshold , an automatic alarm is triggered . The system can be configured with a “ one out , one in ” rotation mechanism , or directly close the entry lanes and switch to one‑way exit mode , achieving precise flow limiting . The mechanism uses a unique mechanical structure , operating smoothly with low noise and a long service life . When power fails , the gate automatically unlocks and switches to mechanical mode , complying with fire safety requirements . It also features an automatic reset function : after gaining access permission , if the user does not pass within the set time , the permission is automatically cancelled and the system resets .
Supports online ticket purchase followed by QR code , RFID card , or mobile NFC scanning for entry , with a throughput speed of over 30 people per minute . Multi‑lane flow distribution can be configured to achieve differentiated lane management for VIPs , members , and ordinary reservation visitors . VIPs enjoy exclusive express lanes , enhancing the overall visitor experience .
Sensors inside the turnstile separately count entry and exit numbers , accurately calculating the real‑time number of people inside and dynamically displaying remaining capacity . When the number reaches a preset threshold , an automatic alarm is triggered , notifying management immediately to initiate flow control measures . The system can be configured with a “ one out , one in ” rotation mechanism to achieve dynamic balance of venue occupancy . Alternatively , the entry lanes can be directly closed and switched to one‑way exit mode , forcefully controlling incoming visitor flow and eliminating the risk of overcrowding and stampedes at the source .
The internal mechanism adopts a unique mechanical design , operating smoothly with extremely low noise , without disturbing the exhibition hall atmosphere . It maintains excellent performance under high‑frequency start‑stop cycles , significantly reducing maintenance costs .
In the event of a sudden power failure , the gate automatically unlocks and switches to mechanical free‑passage mode , fully opening the passage to ensure rapid and unobstructed evacuation of visitors in emergencies , fully complying with fire safety regulations .
After gaining passage permission , if the visitor does not pass through the turnstile within the set time , the system automatically cancels the authorisation and resets the gate . This effectively prevents permission from being misappropriated via screenshots , reused , or exploited for tailgating , ensuring every passage is safe and controlled .
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 450mm*230mm*1800mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. The turnstile supports face recognition terminals through Wiegand, RS485, TCP/IP, and dry contact interfaces.
Yes. The standard model is designed for indoor and covered outdoor installations. An IP65-rated waterproof version is available for exposed environments.
Absolutely. The turnstile supports standard communication protocols and integrates with most third-party access control and attendance management systems.
Depending on the configuration, the tripod arm can automatically unlock or drop, allowing free passage for emergency evacuation.
Yes. We offer OEM and ODM services, including customized dimensions, finishes, branding, and access control integration.
Looking for a trusted Column Tripod Turnstile Manufacturer, RFID Tripod Turnstile Supplier, or Smart Pedestrian Access Control Factory?
Contact us today to receive detailed specifications, project consultation, customization options, and competitive factory pricing. Our team is ready to help you create a secure, efficient, and intelligent entrance control solution.
