| Brand Name: | Kemaisi |
| Model Number: | KMS-G61121 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Residential communities , office buildings , and industrial parks handle large volumes of pedestrian traffic every day . However , traditional access control models have prominent pain points : residents who forget their access cards are locked out – resulting in a very poor experience ; while delivery and courier personnel can enter and exit freely , creating serious security risks . The Kemaisi intelligent turnstile provides an integrated solution for property management scenarios – combining turnstiles , access control , elevators , and visitor management into a single system , enabling intelligent end‑to‑end control from the entrance to the target floor . It supports multiple access methods such as card swiping , QR code , facial recognition , and mobile NFC , allowing residents to choose according to their preferences , completely eliminating the worry of forgotten cards . The system effectively enhances the building ‘ s technological image and professional appeal , attracting high‑quality residents . The mechanism uses a unique mechanical structure , operating smoothly with low noise and a long service life . When power fails , the gate automatically unlocks and switches to mechanical mode , complying with fire evacuation requirements . It also features an automatic reset function : after gaining access permission , if the user does not pass within the set time , the permission is automatically cancelled and the system resets , ensuring safe and orderly passage .
The system integrates turnstiles , access control , elevators , and visitor management into one platform . After passing through the turnstile , residents automatically trigger the elevator to arrive at their floor ; visitors receive temporary permissions after making a reservation . This achieves a seamless , contactless experience from the entrance to the destination , eliminating the need for property management to handle multiple systems separately .
Supports various methods such as card swiping , QR code , facial recognition , and mobile NFC . Residents can choose according to their habits . A simple tap on the phone or a facial scan is all it takes to pass through the turnstile – the access card is no longer the only credential , completely solving the embarrassment of being locked out due to a forgotten card .
The modern , high‑tech design combined with intelligent access experience effectively enhances the building ‘ s professional image and security level . High‑quality residents are more attracted to safe and convenient living and working environments , making the intelligent turnstile a key feature for attracting premium tenants .
The internal mechanism adopts a unique mechanical design , operating smoothly with extremely low noise , without disturbing the daily tranquillity of the community . It maintains excellent performance under high‑frequency start‑stop cycles , significantly reducing maintenance costs .
In the event of a sudden power failure , the gate automatically unlocks and switches to mechanical free‑passage mode , fully opening the passage to ensure rapid and unobstructed evacuation of people in emergencies , fully complying with fire safety regulations .
After gaining passage permission , if the resident or visitor does not pass through the turnstile within the set time , the system automatically cancels the authorisation and resets the gate . This effectively prevents permission from being misappropriated via screenshots , reused , or exploited for tailgating , ensuring every passage is safe and controlled .

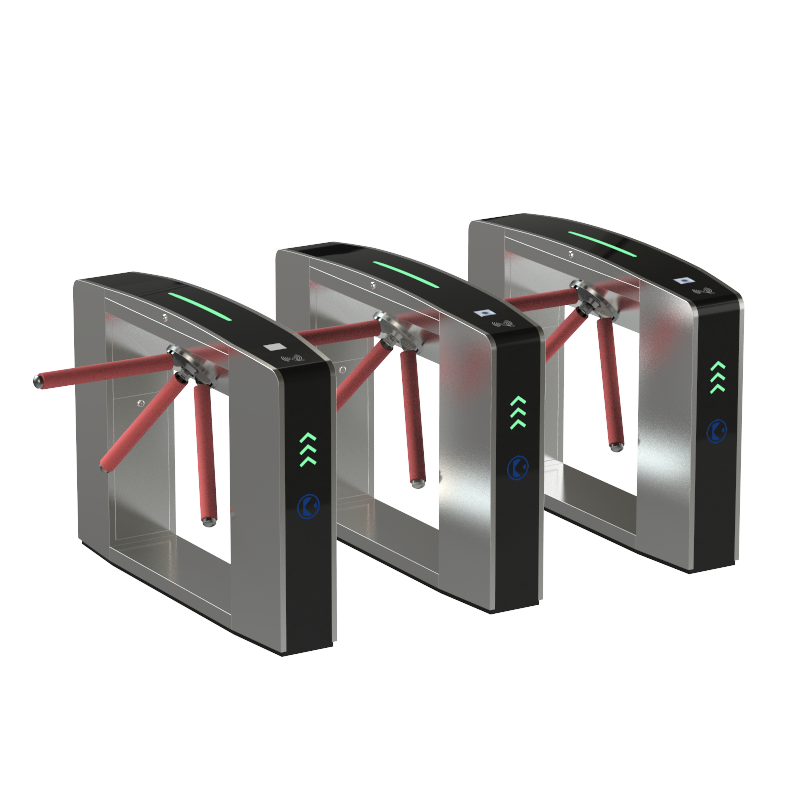

| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*260mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. It supports face recognition terminals through Wiegand, TCP/IP, RS485, and dry contact interfaces.
Yes. The standard model is designed for indoor and covered outdoor use. An IP65-rated waterproof version is available for fully exposed installations.
Yes. The turnstile supports standard communication protocols and is compatible with most third-party access control, attendance, and visitor management systems.
Depending on the selected configuration, the tripod arms automatically unlock or drop, allowing safe emergency evacuation.
Absolutely. We provide OEM and ODM services, including cabinet dimensions, surface finishes, branding, authentication modules, and software integration.
Looking for a trusted Luxury Tripod Turnstile Manufacturer, Bridge Tripod Turnstile Supplier, or Smart Pedestrian Access Control Factory?
Contact us today for detailed product specifications, OEM customization, project consultation, and competitive factory pricing. Our team is ready to deliver secure, reliable, and intelligent access control solutions for projects worldwide.
