| Brand Name: | Kemaisi |
| Model Number: | KMS-T5510 |
| MOQ: | 1 pcs |
| Price: | USD1000-USD2000 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

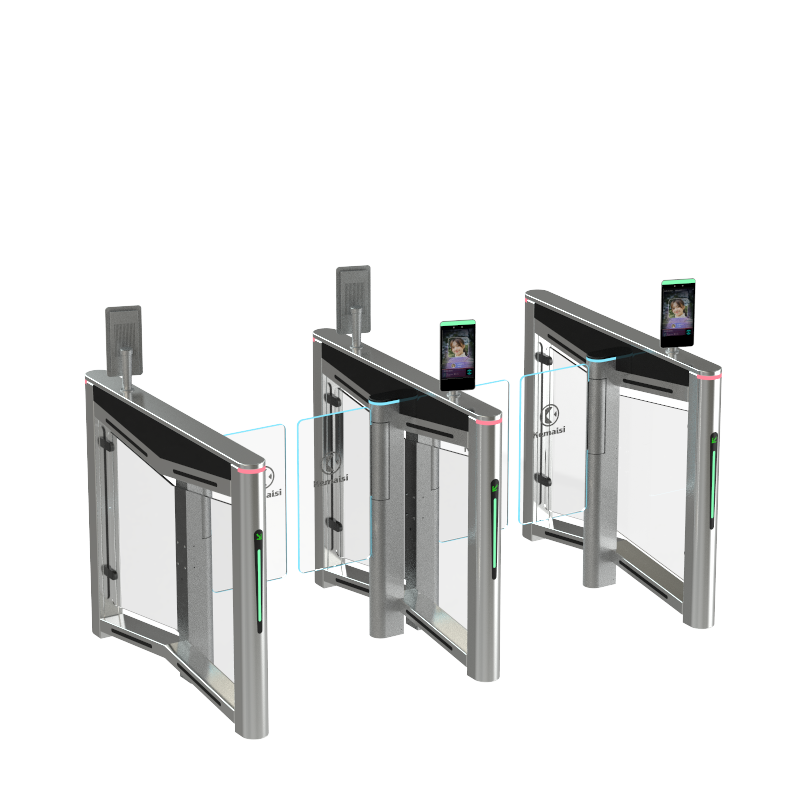

Gyms experience heavy daily foot traffic . Traditional management often faces two major points : revenue loss due to membership card abuse – card lending , resale of second hand cards , or one card being used by multiple people in rotation , so actual entries far exceed the number of paying members . During morning and evening peaks , congestion occurs at the front desk . Manually checking member photos is time consuming and laborious . Members become impatient , staff are under great pressure , and this directly affects renewal rates . This intelligent turnstile provides a complete solution : when members enter via facial recognition or QR code scanning , timing starts automatically ; when they exit , timing ends automatically . It supports multiple billing models including pay by time , per visit deduction , unlimited access within a period , and stored value . At entry , dual verification of “ facial recognition plus membership card ” is used . The system automatically compares the archived photo . If identification fails , entry is prohibited , eliminating card abuse at the source . The device has built in fault self diagnosis and alarm functions for easy daily maintenance . The operating status can be programmed on site via the built in keypad on the main control board . It is also equipped with multiple safety protections such as an audible and visual alarm ( immediate alert for unauthorised entry or tailgating ) and an anti crash locking mechanism ( the swing arm automatically locks when no opening signal is received ) . This turnstile is an ideal choice for gyms to improve operational efficiency and protect membership revenue .
Timing starts when entering via facial recognition or QR code scanning , and automatically stops when exiting . The system charges according to actual duration ( pay by time mode ) or simply records duration ( period pass / per visit mode ) . It supports per visit cards , period passes , stored value cards , and casual visitor temporary tickets , meeting different member needs .
At entry , dual verification of facial recognition plus membership card is used , with real time comparison of the archived photo . If identification fails , entry is prohibited , effectively eliminating card lending , resale , and sharing , protecting membership revenue .
Self service facial recognition or QR code scanning enables fast passage , eliminating manual photo checks . This reduces queue waiting times , improves member experience , reduces staff pressure , and helps increase renewal rates .
Built in self diagnosis module triggers an automatic alarm when an abnormality occurs . The operating status can be programmed on site via the keypad on the main control board , flexibly adapting to management needs for different time periods or activities .
Unauthorised entry or tailgating immediately triggers an audible and visual alarm , effectively deterring violators and ensuring order at the gym entrance .
When no valid opening signal is received , the swing arm automatically locks , preventing forced opening by external force and blocking entry by unauthorised individuals .
| Product Name | Speed gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200*100*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 600-1500mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 80W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. Our speed gate supports integration with most third-party access control systems via RS485, TCP/IP, dry contact, Wiegand, and other communication protocols.
The gate supports RFID cards, facial recognition, fingerprint, QR codes, NFC, Bluetooth, mobile credentials, and visitor management systems.
Absolutely. It is designed for continuous operation and can efficiently manage high pedestrian flow during morning and evening peak hours.
The gate can automatically unlock or open according to your emergency configuration, allowing safe evacuation during power outages or fire alarms.
Yes. We offer different passage widths to accommodate standard pedestrian access, wheelchair users, and special accessibility requirements.
Yes. We provide OEM and ODM services, including customized logos, cabinet dimensions, finishes, software integration, and packaging.
This model is primarily designed for indoor office environments. Outdoor versions with higher weather protection ratings are also available upon request.
