| Brand Name: | Kemaisi |
| Model Number: | KMS-T5808 |
| MOQ: | 1 pcs |
| Price: | USD2500-USD5000 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

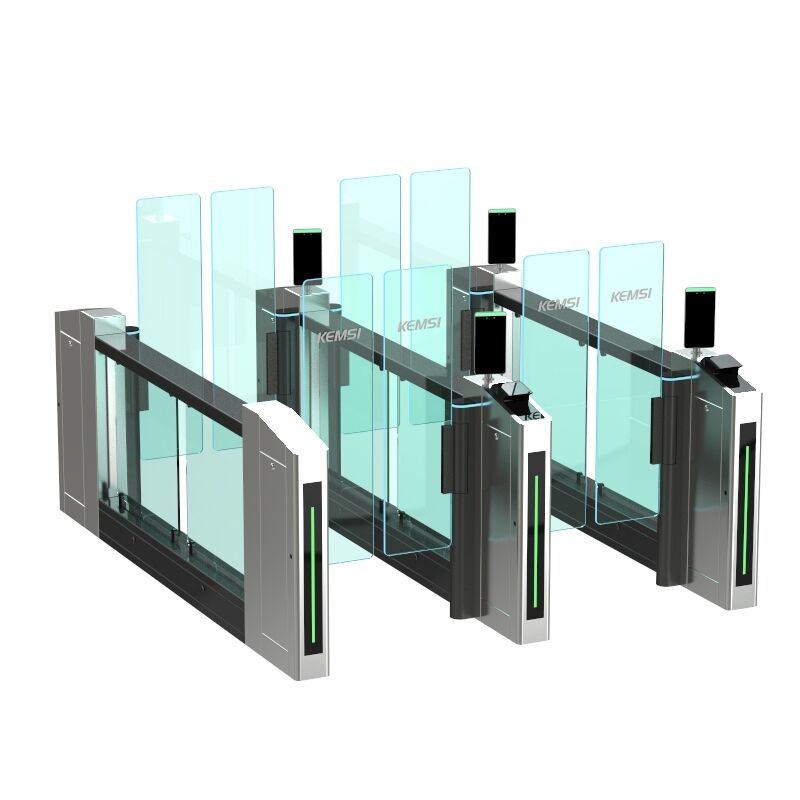

This AB door is specifically designed for high security places such as airports and customs . It uses a dual verification mechanism : a person must first pass through the first door access verification . After entering the passage , the system monitors the status inside the passage in real time . The second door will only allow verification to open when the first door is closed and it is confirmed that there is no tailgater . This logic achieves “ zero tailgating ” at a physical level , meeting stringent security requirements . This device deeply integrates mechanical , electronic , microprocessor control , and various identification technologies . It can flexibly combine multiple opening methods such as fingerprint , facial recognition , card swiping , password , second generation ID card , QR code , iris recognition , and palm print recognition , adapting to different security levels and user habits . It is also equipped with a gentle anti pinch mechanism ( the swing arm rebounds when encountering resistance , force ≤ 2 Kg ) , an audible and visual alarm ( immediate alert for unauthorised entry or tailgating ) , and an anti crash locking mechanism ( the swing arm automatically locks when no opening signal is received ) . This AB door is an ideal choice for high security areas .
The person must first pass through the first door . Only after the passage is closed and no one is tailgating can the second door be opened , eliminating tailgating and meeting high security requirements such as those of airports and customs .
Compatible with various opening methods such as fingerprint , facial recognition , card swiping , password , second generation ID card , QR code , iris recognition , and palm print recognition , flexibly configurable to adapt to different security levels .
When the swing arm encounters resistance during reset , it automatically rebounds or the motor stops , with a maximum impact force not exceeding 2 kg , ensuring the safety of people passing through .
Unauthorised entry or tailgating immediately triggers an audible and visual alarm , effectively deterring violators and maintaining passage order .
When no valid opening signal is received , the swing arm automatically locks , preventing forced impact by external force and ensuring passage security .
| Product Name | Speed gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 2600mm*150mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 600mm-1500mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 150W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 12 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Choosing the right access control solution is essential for improving building security and operational efficiency. Our intelligent speed gate turnstile combines advanced technology, durable construction, and modern design to deliver a complete pedestrian security solution.
Whether you need access control for an office building, airport, gym, commercial center, or smart facility, our speed gate system provides reliable performance and a professional entrance experience.
Looking for a reliable speed gate turnstile manufacturer for your project?
Contact us today for a free quote and professional access control solution.
Our team can help you with:
✔ Product selection
✔ Customized design
✔ Access control integration
✔ Project recommendations
✔ Installation guidance
Get your customized speed gate turnstile solution today and upgrade your entrance security system.
