| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7503 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

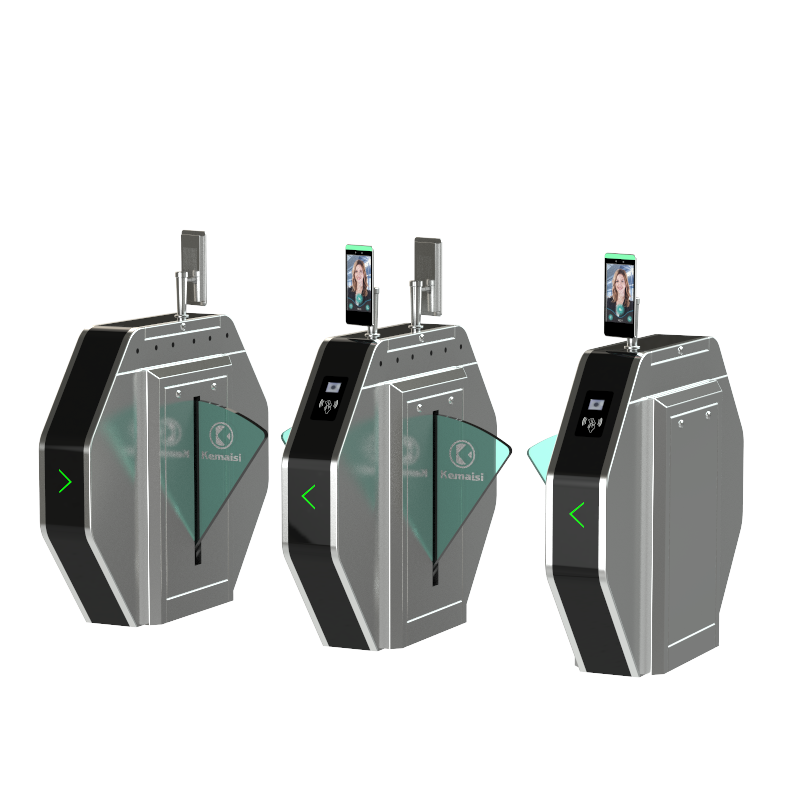

Traditional office buildings use access cards for entry , but cards are easily lost , creating security risks . Attendance records rely on data exported from punch clocks , and administrative staff spend significant time and effort on statistics . This wing barrier equipped with an attendance management system completely changes this situation : the turnstile is installed at the elevator entrance , and employees automatically clock in and out when they pass through . Reports can be exported with a single click from the backend , requiring no additional actions . It supports two in one passage via facial recognition or card swiping , allowing employees to enter and exit completely without a card . The device features fine workmanship , comprehensive functions , and a high end appearance . It integrates mechanical , electronic , microprocessor control , and various identification technologies . It is compatible with card readers for IC cards , ID cards , fingerprints , and more . Optional modules such as alarms and direction indicators can be added to achieve intelligent passage control . The anti pinch function ensures that when the swing arm encounters resistance , it automatically rebounds with a force ≤ 2 Kg . It has an automatic reset function : if no passage occurs within 10 seconds after the gate opens , the permission is automatically cancelled . In the event of a power outage , the turnstile automatically triggers a fire alarm and the gate opens immediately , ensuring rapid evacuation of people and complying with fire safety regulations . This wing barrier is an ideal solution for improving security and attendance efficiency in office buildings .
The turnstile is installed at the elevator entrance . Employees automatically record clock in and clock out times the moment they pass . Reports can be exported with a single click from the backend . Administrators do not need to compile daily statistics , greatly improving efficiency .
Supports both facial recognition and card swiping verification methods . Employees can pass using facial recognition , completely eliminating the security risks and card replacement hassle caused by lost access cards .
Compatible with card readers for IC cards , ID cards , fingerprints , and more . Optional modules such as alarm devices and direction indicators can be added to meet the intelligent upgrade needs of office buildings .
When the swing arm encounters resistance during reset , it automatically rebounds or the motor stops , with a maximum impact force not exceeding 2 kg , ensuring employee passage safety .
If no one passes within 10 seconds after the gate opens , the system automatically cancels the current permission , requiring re verification , effectively preventing tailgating or unintentional waste .
In the event of a power outage , the turnstile triggers a fire alarm and the gate opens immediately , ensuring rapid evacuation of people and fully complying with fire safety regulations .
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Choosing the right pedestrian access control system helps organizations improve security, reduce management costs, and create a smarter entrance experience.
The KMS-Y7503 smart flap barrier turnstile gate combines:
✔ Facial recognition technology
✔ Intelligent access control
✔ High-speed pedestrian management
✔ Durable stainless steel construction
✔ Flexible system integration
✔ Modern architectural design
It is an ideal solution for businesses and facilities looking for a reliable automatic turnstile gate manufacturer and access control partner.
