| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7503 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

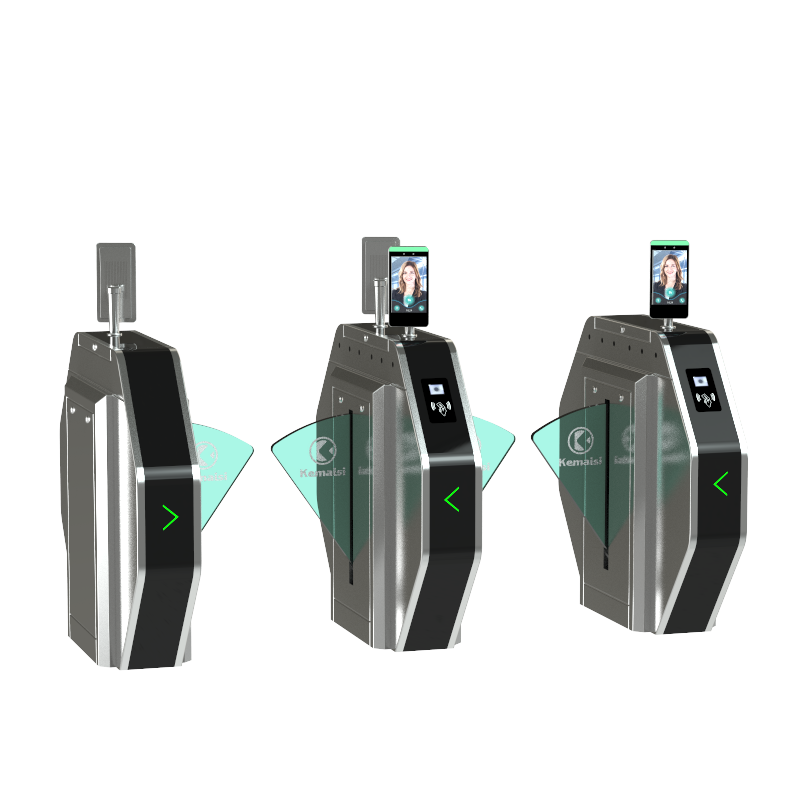

Traditional office buildings use access cards for entry , but cards are easily lost , creating security risks . Attendance records rely on data exported from punch clocks , and administrative staff spend significant time and effort on statistics . This wing barrier equipped with an attendance management system completely changes this situation : the turnstile is installed at the elevator entrance , and employees automatically clock in and out when they pass through . Reports can be exported with a single click from the backend , requiring no additional actions . It supports two in one passage via facial recognition or card swiping , allowing employees to enter and exit completely without a card . The device features fine workmanship , comprehensive functions , and a high end appearance . It integrates mechanical , electronic , microprocessor control , and various identification technologies . It is compatible with card readers for IC cards , ID cards , fingerprints , and more . Optional modules such as alarms and direction indicators can be added to achieve intelligent passage control . The anti pinch function ensures that when the swing arm encounters resistance , it automatically rebounds with a force ≤ 2 Kg . It has an automatic reset function : if no passage occurs within 10 seconds after the gate opens , the permission is automatically cancelled . In the event of a power outage , the turnstile automatically triggers a fire alarm and the gate opens immediately , ensuring rapid evacuation of people and complying with fire safety regulations . This wing barrier is an ideal solution for improving security and attendance efficiency in office buildings .
The turnstile is installed at the elevator entrance . Employees automatically record clock in and clock out times the moment they pass . Reports can be exported with a single click from the backend . Administrators do not need to compile daily statistics , greatly improving efficiency .
Supports both facial recognition and card swiping verification methods . Employees can pass using facial recognition , completely eliminating the security risks and card replacement hassle caused by lost access cards .
Compatible with card readers for IC cards , ID cards , fingerprints , and more . Optional modules such as alarm devices and direction indicators can be added to meet the intelligent upgrade needs of office buildings .
When the swing arm encounters resistance during reset , it automatically rebounds or the motor stops , with a maximum impact force not exceeding 2 kg , ensuring employee passage safety .
If no one passes within 10 seconds after the gate opens , the system automatically cancels the current permission , requiring re verification , effectively preventing tailgating or unintentional waste .
In the event of a power outage , the turnstile triggers a fire alarm and the gate opens immediately , ensuring rapid evacuation of people and fully complying with fire safety regulations .
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
A flap barrier turnstile is an automatic pedestrian gate that uses retractable glass wings to control access. It allows authorized users to pass after identity verification while preventing unauthorized entry.
Yes. The KMS-Y7503 supports facial recognition terminals, enabling contactless access control and improving security efficiency.
Depending on configuration, the turnstile can support:
Face recognition
RFID cards
QR codes
Fingerprint recognition
Third-party access control systems
It is widely used in:
Office buildings
Airports
Metro stations
Schools
Universities
Gyms
Factories
Government facilities
Yes. We provide customized solutions including:
Appearance design
Lane width adjustment
Access control integration
Software connection
Logo customization
Yes. With fast opening speed and reliable motor performance, it is designed for locations with frequent pedestrian movement.
Choosing the right pedestrian access control system helps organizations improve security, reduce management costs, and create a smarter entrance experience.
The KMS-Y7503 smart flap barrier turnstile gate combines:
✔ Facial recognition technology
✔ Intelligent access control
✔ High-speed pedestrian management
✔ Durable stainless steel construction
✔ Flexible system integration
✔ Modern architectural design
It is an ideal solution for businesses and facilities looking for a reliable automatic turnstile gate manufacturer and access control partner.
