| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7513 |
| MOQ: | 1 pcs |
| Price: | USD650-USD1300 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Traditional apartments use access cards . When residents forget their cards , they are locked out – resulting in a very poor experience . Delivery and courier staff can enter and exit freely , creating serious security risks . The Kemaisi intelligent wing barrier provides multiple access methods such as card swiping , QR code , facial recognition , and mobile NFC . Residents no longer need to worry about forgetting their access card and can easily return home . Meanwhile , delivery and courier personnel must scan a QR code and register their information before entering , effectively controlling external visitors , enhancing the building ‘ s technological and professional image , and attracting high quality tenants . The device features fine workmanship , comprehensive functions , and a high end appearance . It integrates mechanical , electronic , microprocessor control , and various identification technologies . It is compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more . Optional modules such as safety protection , alarms , and direction indicators can be added to achieve intelligent passage control . The turnstile has a memory function : during continuous card swiping , it accurately remembers the number of swipes and the number of people passing , greatly improving passage efficiency during peak hours . It supports network based remote operation and password protected remote locking , facilitating remote management . The anti pinch function ensures that when the swing arm encounters resistance , it automatically rebounds with a force ≤ 2 Kg , ensuring passage safety .
Delivery and courier personnel must scan a QR code and register their information before entering , effectively controlling external visitors , reducing security risks , and improving the overall security level of the community .
The modern intelligent turnstile combined with multiple recognition technologies enhances the apartment ‘ s technological atmosphere and professional grade , helping to attract high quality tenants and increase the property ‘ s brand value . Compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more . Optional modules such as safety protection , alarms , and direction indicators can be added to meet the intelligent upgrade needs of apartments .
During continuous card swiping , it accurately records the number of swipes and the number of people passing , avoiding repeated authorisation . Passage becomes smoother during morning and evening peaks , reducing queue waiting times .
Supports network based remote operation , facilitating off site parameter adjustments and communication . It has a password based remote locking function , allowing restriction of unauthorised operations at any time , enhancing management flexibility .
When the swing arm encounters resistance , it automatically rebounds or the motor stops , with a maximum impact force not exceeding 2 kg , providing safe passage for the elderly , children , and residents carrying items .

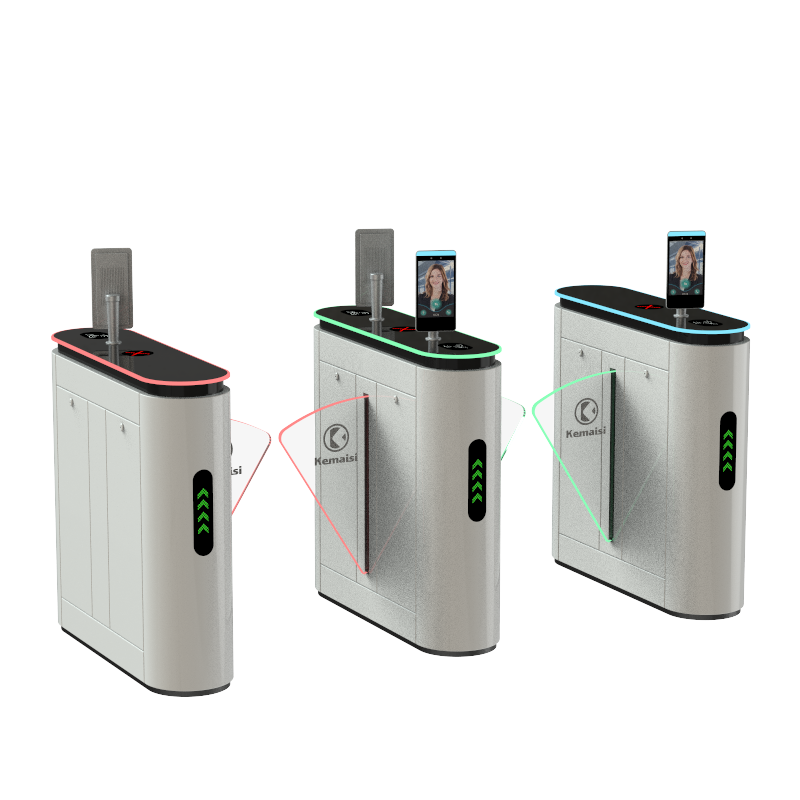

| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1000mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
A wing gate turnstile, also called a flap barrier gate, is an automatic pedestrian access control system that uses retractable acrylic wings or flaps to control entry and exit. It is commonly used in buildings requiring secure and efficient pedestrian management.
Yes. This model supports facial recognition terminals, allowing users to pass through without physical contact. It can also work with RFID cards, QR codes, and other identification methods.
Wing gate turnstiles are widely used in:
Office buildings
Schools
Airports
Shopping malls
Gyms
Residential communities
Government facilities
Yes. The system uses identity verification and infrared sensors to prevent unauthorized access and detect tailgating behavior.
Yes. The wing gate turnstile supports integration with most third-party access control, attendance, and visitor management systems.
No. The modular design makes installation simple, and the stainless steel structure requires minimal maintenance for long-term operation.
Choosing the right pedestrian access control system helps businesses improve security, optimize visitor management, and create a smarter entrance experience.
Our smart wing gate turnstile with facial recognition combines:
✔ Advanced biometric identification
✔ Reliable access control technology
✔ High-speed pedestrian flow management
✔ Elegant modern design
✔ Easy system integration
✔ Long service life
It is an ideal solution for organizations looking for a secure, intelligent, and efficient entrance management system.
