| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7517 |
| MOQ: | 1 pcs |
| Price: | USD9200-USD2000 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

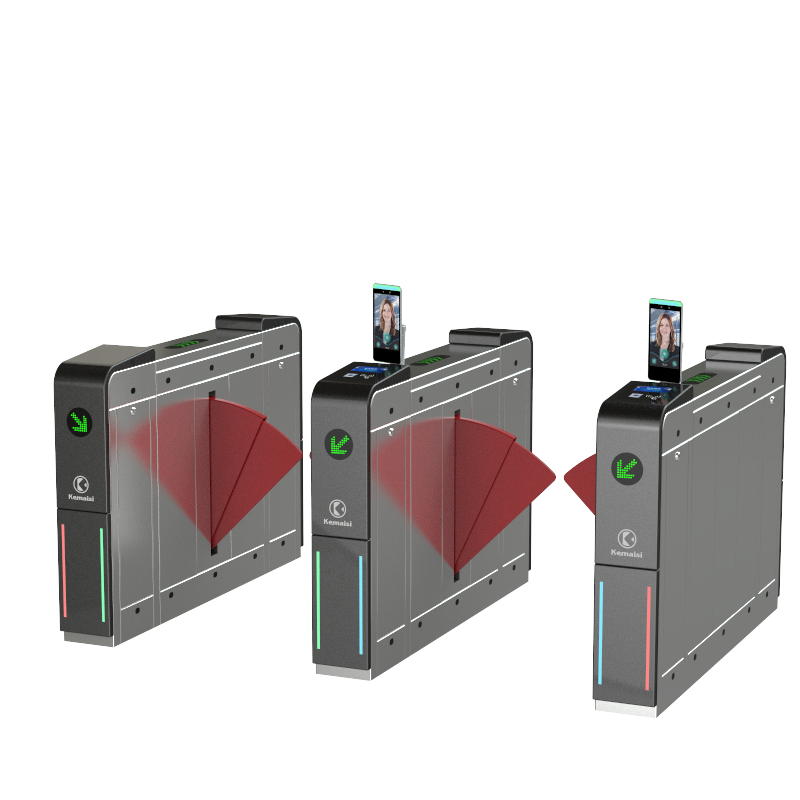

Traditional visitor management relies on manual registration at the reception desk , which is not only inefficient but also leaves an unprofessional impression on visitors . Temporary visitor cards pose risks of loss and security breaches . The Kemaisi intelligent turnstile completely changes this model : visitors make an online reservation and receive a dynamic QR code , then scan the code to pass through – a completely paperless process . The system grants permissions strictly according to the reserved time slot , and expired codes automatically become invalid . At the same time , the turnstile supports two in one facial recognition and card swiping , allowing both employees and visitors to pass using facial recognition without needing to carry any card . The device integrates mechanical , electronic , microprocessor control , and various identification technologies . It is compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more , and optional modules such as safety protection , alarms , and direction indicators can be added to achieve intelligent passage control . Whether in technology companies , large and medium sized office buildings , or high end clubs , the Kemaisi intelligent turnstile significantly improves passage efficiency and security levels , showcasing a professional image .
Visitors make an online reservation and receive a dynamic QR code , then scan the code to pass . Permissions are precisely controlled by time slot , and expired codes automatically become invalid , eliminating security risks caused by lost or copied access cards .
Supports multiple methods such as facial recognition , card swiping , and QR code , either in combination or as standalone options . Employees can pass using facial recognition without carrying any card . Visitors can pass by scanning a code or using facial recognition , meeting different scenario requirements .
The device features fault self diagnosis and alarm functions for quick maintenance . The audible and visual alarm system accurately detects unauthorised entry and tailgating , effectively enhancing passage security .
If no passage occurs within 10 seconds after the gate opens , the system automatically cancels the current permission and closes the gate , preventing tailgating or ineffective occupancy , improving passage turnover efficiency .
In the event of an emergency power failure , the turnstile automatically triggers fire mode , sounds an audible and visual alarm , and immediately opens the gate , ensuring rapid and safe evacuation of people and complying with fire safety regulations .
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
A wing gate turnstile is an automatic pedestrian access control gate that uses retractable acrylic barriers or wings to allow or restrict passage. It is commonly used with access control systems for secure entrance management.
Yes. This model can be equipped with a facial recognition terminal for contactless identity verification and intelligent access control.
The wing gate can support multiple authentication methods, including:
Face recognition
RFID cards
QR codes
Fingerprint identification
Third-party access control systems
It is suitable for indoor environments such as:
Office buildings
Universities
Airports
Metro stations
Factories
Gyms
Residential communities
Government facilities
Yes. The system can be connected with fire alarm systems. During emergencies, the barrier can automatically open to ensure safe evacuation.
No. The turnstile is designed for easy installation and maintenance. Our technical team can provide installation guidance and after-sales support.
