| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7525 |
| MOQ: | 1 pcs |
| Price: | USD650-USD1300 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

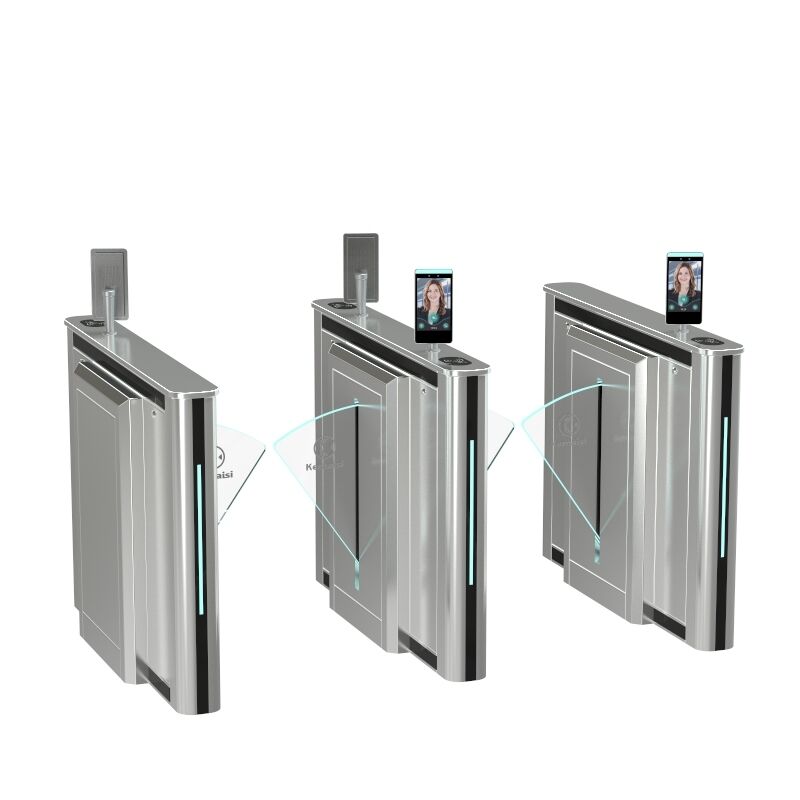

The Kemaisi intelligent wing barrier is specifically designed for indoor playgrounds , trampoline parks , and children ‘ s amusement parks , and is used with QR code wristbands . When a customer enters , they scan the wristband QR code to start timing . The system precisely controls the play duration . When the time expires , the turnstile automatically blocks further passage . The front desk or a self service kiosk can be configured with an “ overtime supplement ticket ” rule , allowing passage again after the supplement ticket is purchased . Customers scan their own QR code for ticket verification , eliminating manual ticket checking . During peak hours , congestion is effectively avoided , and staff pressure is reduced . The system automatically records the entry time , exit time , and remaining time for each wristband . Operators can view the current number of people inside and ticket sales data at any time via a mobile phone or computer , enabling real time management . This wing barrier features fine workmanship , comprehensive functions , and a high end appearance . It has a memory function ( accurately recording the number of card swipes and passages , improving passage efficiency ) . The anti pinch function ensures that when the swing arm encounters resistance , it automatically rebounds with a force ≤ 2 Kg . The automatic reset function cancels the access permission if no passage occurs within 10 seconds after the gate opens . In the event of a power outage , it automatically triggers a fire alarm and the gate opens immediately , ensuring rapid evacuation of people , fully complying with fire safety regulations .
The wristband QR code automatically starts timing from the moment it is scanned at the entrance . When the time expires , the turnstile blocks passage . It supports an “ overtime supplement ticket ” rule ( passage is reopened after a supplement ticket is purchased ) , effectively managing play duration and avoiding overtime disputes .
Customers scan their own wristband QR codes to pass through the turnstile – no manual ticket checking required . No congestion during peak hours , greatly reducing staff pressure and improving parent satisfaction .
The system automatically records entry time , exit time , and remaining time for each wristband . Operators can view the number of people inside and ticketing data at any time via a mobile phone or computer , supporting operational decisions .
During continuous card swiping , it accurately remembers the number of swipes and the number of people passing , avoiding repeated authorisation . Passage becomes smoother during peak hours , reducing queue waiting times .
When the swing arm encounters resistance , it automatically rebounds , with a maximum impact force not exceeding 2 kg , ensuring child safety . If no passage occurs within 10 seconds after the gate opens , the permission is automatically cancelled , preventing tailgating .
In the event of a power outage , it automatically triggers a fire alarm and the gate opens immediately , ensuring rapid evacuation of people and fully complying with fire safety regulations .
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
A speed wing turnstile is an automatic pedestrian access control gate that uses retractable wings to control entry and exit. It provides fast, secure, and intelligent access management for buildings and public facilities.
Yes. The speed wing gate can integrate with facial recognition terminals, allowing users to enter through contactless identity verification.
The system supports multiple options, including:
Face recognition
RFID cards
QR codes
Fingerprint readers
Mobile access systems
Yes. The built-in infrared sensors detect obstacles and prevent the wings from closing when someone is passing through.
Yes. The wing turnstile supports integration with many third-party access control systems and security platforms.
It is commonly installed in:
Office buildings
Airports
Schools
Universities
Gyms
Shopping malls
Residential communities
Government facilities
With intelligent access control technology, reliable mechanical performance, and modern industrial design, our automatic wing turnstile gates help businesses improve security, optimize pedestrian flow, and build smarter entrance management systems.
Whether you need a solution for an office lobby, transportation facility, campus, or commercial project, we provide professional customization and complete access control solutions.
Looking for a reliable speed wing turnstile gate manufacturer?
Contact us today for:
✅ Free product consultation
✅ Customized turnstile solutions
✅ Project recommendations
✅ Competitive factory pricing
✅ Technical support
Request your free quote now and upgrade your pedestrian access control system with our intelligent speed wing turnstile solution.
