| Brand Name: | Kemaisi |
| Model Number: | KMS-Z217 |
| MOQ: | 1 pcs |
| Price: | USD2500-USD5000 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

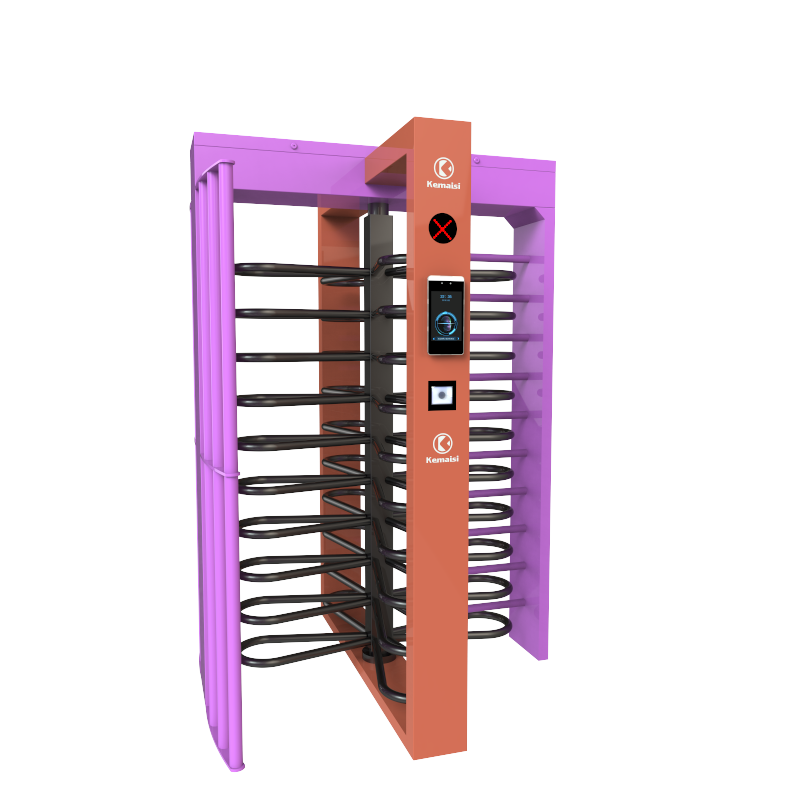

The Z217 rotating turnstile is specifically designed for high‑security applications such as construction sites, industrial parks, and campuses. Its full‑height enclosed structure prevents climbing or crawling through, virtually eliminating unauthorised intrusion. The entire unit is constructed from stainless steel, offering waterproof, UV‑resistant, cold‑resistant, and heat‑resistant properties, ensuring reliable operation both indoors and outdoors in all weather conditions. It seamlessly integrates with identification systems including facial recognition terminals and card readers, enabling an upgrade to an intelligent access control and attendance terminal. When a worker enters the site by swiping a card or using facial recognition, the system automatically records the entry time. Upon exit, the worker is identified again, and the system automatically calculates the total working duration (exit time minus entry time), with the option to deduct preset periods such as lunch breaks. The resulting attendance report can be directly exported and interfaced with the payroll system, completely eliminating manual errors and buddy‑punching cheating, thus realising unattended and highly efficient management.
The full‑height rotating turnstile structure completely prevents climbing or crawling through, offering a security level far superior to swing gates or wing barriers.
The entire unit is waterproof, UV‑resistant, cold‑resistant, and heat‑resistant, with a high IP rating. It withstands heavy rain, intense sunlight, or freezing temperatures.
The unique mechanism design ensures smooth operation with minimal noise, low mechanical wear, and an extended service life.
Upon power failure, the gate automatically unlocks and switches to mechanical mode, allowing free passage – fully compliant with fire safety regulations.
If the authorised user does not pass within the preset time after gaining permission, the turnstile automatically cancels the permission and returns to its initial state, preventing permission abuse.
Equipped with bright two‑way arrow indicator lights showing clear red/green status signals, effectively guiding pedestrian flow and avoiding congestion.
Automatically calculates working hours, deducts lunch breaks, generates reports, and interfaces with the payroll system – eliminating buddy‑punching and significantly reducing management costs.
| Product Name | Full Height Turnstile |
| Product Size | 1500mm*1500mm*2200mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 600mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
| Barrier material | 304 stainless steel round tube / 201 stainless steel with baked paint |
| Passage frame | 304 stainless steel / 201 stainless steel with baked paint |
A full height turnstile gate is a high-security pedestrian access control barrier that uses full-height rotating arms to prevent unauthorized entry. It is commonly used in places requiring strict security management.
A tripod turnstile only controls access at waist height, while a full height turnstile provides a complete barrier that prevents climbing over or bypassing, making it more suitable for high-security environments.
Yes. The full height turnstile supports integration with facial recognition, fingerprint scanners, RFID readers, QR code systems, and other access control technologies.
Yes. With a durable stainless steel structure and weather-resistant design, it can be installed in outdoor environments such as stadium entrances, factories, and construction sites.
The traffic capacity depends on the model and access management settings. It is designed for continuous pedestrian flow in high-volume applications.
Yes. The system can be connected with fire alarm systems and emergency controls to allow rapid evacuation when required.
Choosing the right pedestrian security gate is essential for protecting your facility. Our full height turnstile system combines mechanical strength, smart access control compatibility, and reliable performance to deliver a professional security entrance solution.
Whether you need access control for a factory, stadium, government building, transportation station, or restricted facility, this high-security turnstile provides an effective way to manage pedestrian access.
Looking for a reliable full height turnstile gate supplier?
Contact us today for:
✔ Free product consultation
✔ Customized access control solutions
✔ Competitive factory pricing
✔ Technical support
✔ Project-based recommendations
Request your free quote now and improve your facility security with our professional full height turnstile access control system.
