| Brand Name: | Kemaisi |
| Model Number: | KMS-Z2137 |
| MOQ: | 1 pcs |
| Price: | USD1200-USD2400 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

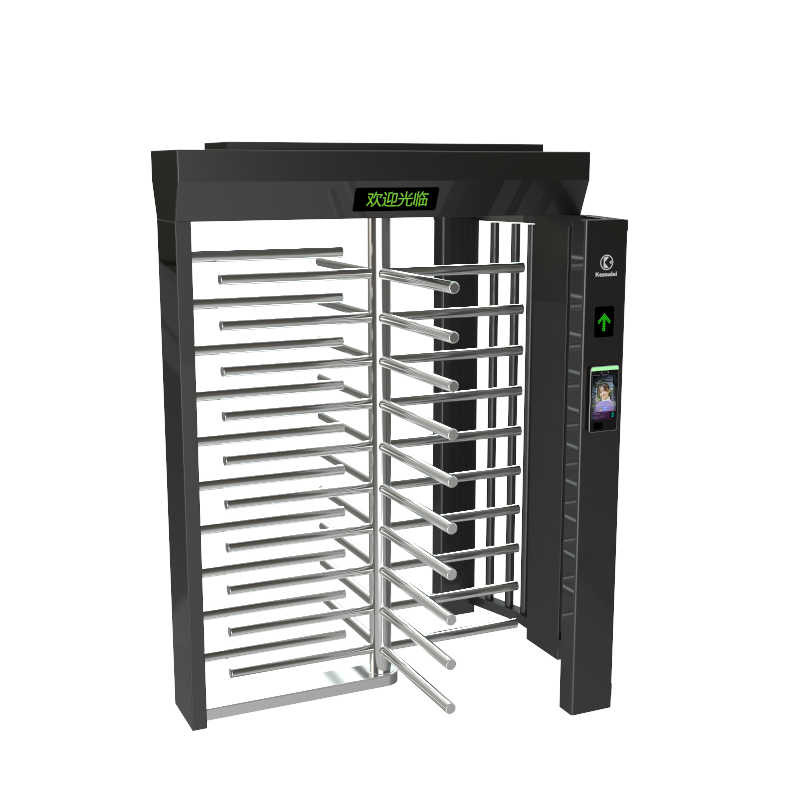

The Z2137 rotating turnstile is specifically designed for high security applications such as construction sites , industrial parks , and campuses . Its full height enclosed stainless steel structure prevents climbing or crawling through , virtually eliminating unauthorised intrusion at a physical level . The entire unit is waterproof , UV resistant , cold resistant , and heat resistant , ensuring stable operation both indoors and outdoors in all weather conditions . The core anti tailgating system consists of an infrared light grid and high precision sensors working together to monitor the number of passing individuals in real time – one valid authentication allows only one person to pass . If anyone attempts to follow closely behind , the turnstile immediately sounds an alarm and automatically locks . The system can also be set with a “ passage without authentication ” mode , triggering an alarm and notifying security when an unauthorised person forces entry . The device is equipped with a backup battery and an electromagnetic clutch mechanism . When power fails , the barrier arms automatically open to an unlocked state , leaving the passage completely clear , ensuring rapid evacuation of workers in emergencies such as fire or collapse , eliminating the safety hazard of a blocked exit .
The stainless steel full height rotating structure cannot be climbed over or crawled through , effectively blocking unauthorised persons from entering , suitable for high security locations .
The body is waterproof , UV resistant , cold resistant , and heat resistant , withstanding heavy rain , intense sunlight , or freezing temperatures . Long term stable operation indoors and outdoors with low maintenance costs .
Infrared light grid plus high precision sensors monitor the number of passing individuals in real time – one authentication allows only one person to pass . Tailgating immediately triggers an alarm and locks the turnstile , preventing multiple people from slipping through together .
A “ passage without authentication ” rule can be set . When an unauthorised person forces entry , an automatic alarm is triggered and security is notified , enhancing active defence capabilities .
Built in backup battery and electromagnetic clutch mechanism . When power fails , the barrier arms automatically open and remain in an unlocked state , leaving the passage completely clear , ensuring rapid evacuation of workers and eliminating the risk of a blocked emergency exit .
| Product Name | Full Height Turnstile |
| Protection Grade | IP43, IP54 |
| Communication Interface | I/O,RS485 |
| Traffic Speed | 30 People/Minute |
| Channel Width | 600mm |
| Rotation Angle Per Step | 90° |
| Barrier Material | 304 Stainless Steel Round Tube / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1750mm*1300mm*2300mm |
| Working Voltage | 220V±10% |
| Ambient Temperature | -20℃-65℃ |
| Relative Temperature | ≤95% Not Condensing |
| Work Environment | Indoor And Outdoor |
| Product Power | 50W |
| Access Control Type | RFID/IC/ID Card. Face/Iris Recognition/Fingerprint Identification.QR Code. Mobile Phone/NFC. Password. Remote Door Opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
A full height turnstile is a high-security pedestrian access control gate that extends from the floor to the top of the passageway. It prevents unauthorized access by creating a complete physical barrier.
A tripod turnstile only blocks the lower body area and is suitable for general access control. A full height turnstile provides complete height protection and offers much higher security.
Yes. The stainless steel structure makes it suitable for outdoor environments such as stadiums, factories, construction sites, and parking entrances.
Yes. This full height turnstile can integrate with facial recognition devices, fingerprint readers, RFID systems, and other biometric access control technologies.
The capacity depends on the access control system and operating mode. Generally, it can support continuous pedestrian flow for medium and high-volume applications.
Yes. Custom options include:
· Different access control systems
· Stainless steel finishes
· Lane configurations
· Logo customization
· Communication interfaces
Looking for a reliable full height turnstile gate supplier for your security access control project?
Our professional team provides customized solutions for:
· Stadium security entrances
· Factory employee access control
· Industrial facilities
· Construction sites
· Government projects
· High-security areas
Contact us today to get a free quotation, product specifications, installation guidance, and professional access control recommendations.
