| Brand Name: | Kemaisi |
| Model Number: | KMS-B8512 |
| MOQ: | 1 pcs |
| Price: | USD350-USD700 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Gyms often face congestion at the front desk during morning and evening peaks . Members wait in line to scan codes and have their photos checked manually , which is time consuming and leads to a poor experience , hurting renewal rates . At the same time , managers find it difficult to accurately track member activity – who comes three times a week , who has churned , who tends to work out at 8 p . m . Marketing campaigns without data support become little more than guesswork . This intelligent turnstile provides a complete solution : members enter via facial recognition or QR code scanning , and timing starts automatically ; when they exit , timing ends automatically . It supports multiple billing models including pay by time , per visit deduction , unlimited access within a period , and stored value . The system synchronises in real time with the membership backend : members whose membership has expired , is in arrears , or is frozen are automatically blocked from entry , and access is restored immediately upon renewal – perfectly suited for 24 / 7 unattended operation . More importantly , the system automatically generates member activity reports ( weekly / monthly activity rates , average workout duration , peak hour distribution , churn alerts ) , which can be filtered by class type , branch , or time period . These reports help optimise class schedules , precisely target renewal offers , identify high value members , and evaluate the appeal of instructor led classes . The device integrates mechanical , electronic , microprocessor control , and various identification technologies . It is compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more , and optional modules such as safety protection , alarms , and direction indicators can be added to achieve intelligent passage control .
Timing starts when entering via facial recognition or QR code scanning , and automatically stops when exiting . The system charges according to actual duration ( pay by time mode ) or simply records duration ( period pass / per visit mode ) . It supports per visit cards , period passes , stored value cards , and casual visitor temporary tickets , meeting different member needs .
Real time synchronisation with the membership management backend . Members whose membership expires , falls into arrears , or is frozen are automatically blocked from entry with a voice prompt : “ Membership expired , please contact the front desk ” . Access is automatically restored upon renewal without reissuing a card , suitable for 24 / 7 unattended operation .
Automatically generates activity reports : weekly / monthly activity rates , average workout duration , peak hour distribution , member churn alerts . Reports can be filtered by class type , branch , or time period . They help optimise class schedules , precisely target renewal offers , identify high value members for personalised retention , and evaluate the appeal of instructor led classes .
Self service facial recognition or QR code scanning enables fast passage , eliminating manual photo checks . This reduces queue waiting times , improves member experience , reduces front desk staff pressure , and helps increase renewal rates .
Integrates mechanical , electronic , and microprocessor control technologies . Compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more . Optional modules such as safety protection devices , alarms , and direction indicators can be added , flexibly meeting future upgrade needs of the gym .

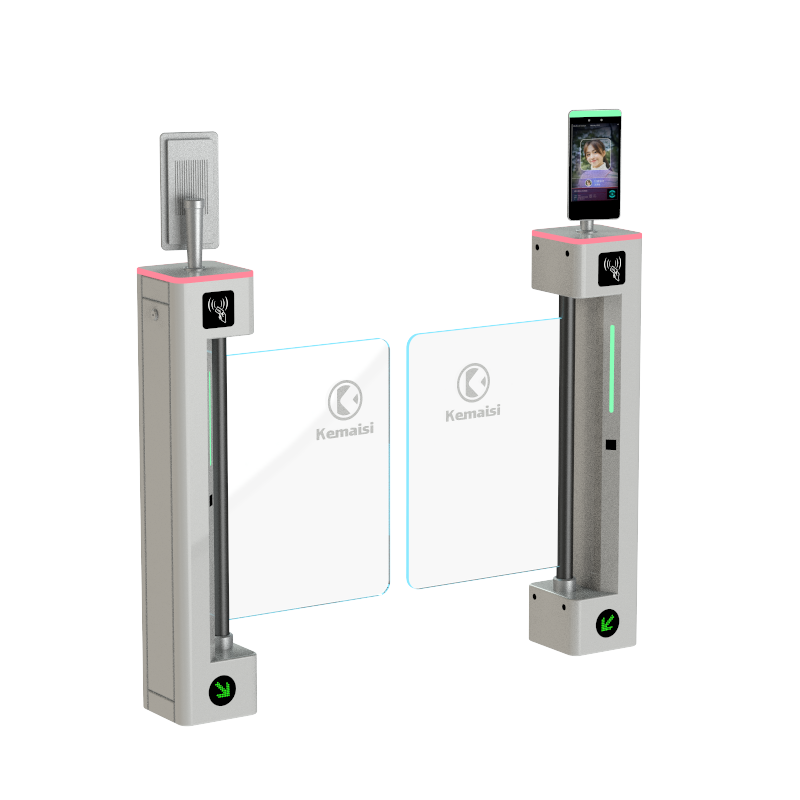

| Product Name | Swing Turnstile |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 200mm*200mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-1000mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Weight | 40-65KG |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| LED indicator lights | 2 |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes, this swing barrier is designed for outdoor applications. Its stainless steel housing and protective design provide excellent durability against weather conditions, making it suitable for entrances, gates, parks, and other outdoor areas.
The turnstile can work with different access control devices, such as RFID cards, QR code readers, fingerprint scanners, and facial recognition terminals. The system can be customized according to specific security and management needs.
Yes, the barrier is equipped with intelligent sensors that detect obstacles and prevent accidental collisions. The swing arms can stop or reopen automatically when an object or person blocks the passage.
The swing barrier controls pedestrian access by allowing only authorized users to pass through. It helps prevent unauthorized entry, improves visitor management, and provides a more organized and secure access environment.
Yes, the turnstile is designed for convenient installation and maintenance. The modular structure allows easy connection with access control systems, while high-quality components reduce maintenance requirements and ensure stable operation.
