| Brand Name: | Kemaisi |
| Model Number: | KMS-B8517 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Traditional cinema chains require ticket vending machines , which are expensive and often suffer from paper jams or paper shortages . Ticket checkpoints also need dedicated staff to tear ticket stubs , resulting in high labor costs . During holiday peaks , long queues cause audiences to frequently miss the beginning of the movie . This intelligent turnstile completely revolutionizes the process : after purchasing tickets through the cinema ‘ s app , viewers simply scan the QR code directly at the turnstile to enter , achieving a completely paperless passage . No ticket checkers are needed at the passage , fully freeing up manpower . Each QR code can only be scanned once and has anti copying properties , effectively eliminating ticket fraud and protecting ticket revenue . The device has built in fault self diagnosis and alarm functions for easy daily maintenance . The operating status can be programmed on site via the built in keypad on the main control board . The main board is equipped with an LCD screen that supports multiple languages , making parameter settings intuitive and fast . In the event of a power failure , the turnstile automatically triggers fire mode , sounds an alarm , and immediately opens the gate , ensuring unobstructed emergency evacuation of viewers . This turnstile is an ideal choice for cinemas to reduce costs , increase efficiency , and improve the viewing experience .
Viewers purchase tickets via the app and scan the QR code to enter directly , eliminating the need for ticket vending machines and the troubles of paper jams and shortages , reducing equipment procurement and maintenance costs . No ticket checkers are needed at the passage . The entire process is self service code scanning , greatly reducing labor expenses and easily handling holiday peaks .
One code per scan , with QR code anti copying properties , prevents one ticket from being used by multiple people or forged tickets , increasing cinema ticket revenue .
Built in self diagnosis module triggers an automatic alarm when an abnormality occurs , helping maintenance staff quickly locate problems and reducing downtime . Via the built in keypad on the main control board , turnstile operating parameters can be flexibly programmed on site to meet different cinema operational needs .
The main board is equipped with an LCD screen that supports switching between multiple languages . Parameter settings are intuitive and convenient , facilitating use in international environments or by different operators .
In the event of a power failure , the turnstile triggers fire mode , sounds an alarm , and automatically opens the gate , ensuring unobstructed emergency evacuation of people and complying with fire safety regulations .

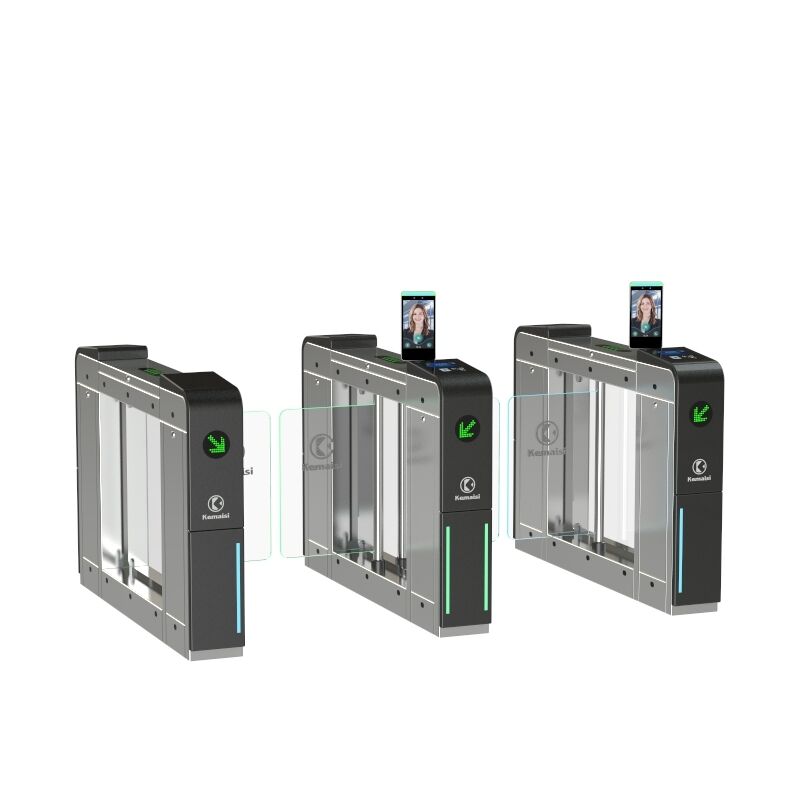

| Product Name | Swing Turnstile |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*200mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-1000mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Weight | 40-65KG |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| LED indicator lights | 2 |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. The gate supports TCP/IP, RS485, Wiegand, SDK, and API integration, making it compatible with most third-party access control systems.
Yes. Face recognition, RFID cards, QR codes, fingerprint, NFC, and mobile credentials can all be configured simultaneously.
The standard model is designed for indoor and covered environments. An IP65 outdoor version with enhanced weather protection is available upon request.
The brushless servo motor is rated for more than 10 million operating cycles, ensuring long-term reliability with minimal maintenance.
Yes. We provide OEM and ODM customization services including dimensions, logo, software, communication interfaces, access control modules, and housing finishes.
