| Brand Name: | Kemaisi |
| Model Number: | KMS-B8627 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Parks , scenic spots , zoos , and outdoor playgrounds often face visitor complaints due to ticket checking congestion during peak holidays . At the same time , they need to handle the tedious reconciliation of multiple channels such as online purchases , group buying , annual passes , and paper tickets . Manual ticket checking also easily leads to ticket evasion or ticketing disputes . This intelligent turnstile provides a one stop solution : it supports multiple credentials such as QR code , ID card , facial recognition , and annual pass , completing ultra fast ticket verification and passage within 1 second . The system integrates all ticketing channels , allowing managers to grasp real time ticketing and visitor flow data with just a mobile phone . The dual verification technology of dynamic QR code and facial recognition effectively prevents forged tickets or identity fraud . The device has built in fault self diagnosis and alarm functions for easy daily maintenance . The operating status can be programmed on site via the built in keypad on the main control board . In the event of a power failure , the turnstile triggers fire mode , sounds an alarm , and automatically opens the gate . The passage remains open after power loss and closes automatically when power is restored . In addition , the system has an automatic reset function : if no passage occurs within the set time after the gate opens ( default 10 seconds ) , the current permission is automatically cancelled , preventing tailgating or misuse .
Supports multiple credentials such as QR code , ID card , facial recognition , and annual pass . Verification and gate opening are completed within 1 second , effectively reducing queue congestion during holidays and improving visitor satisfaction .
Integrates data from all ticketing channels including online platforms , group buying , annual passes , and paper tickets . A single mobile phone allows real time viewing of ticketing and visitor flow information , eliminating tedious reconciliation .
Dual verification of dynamic QR code and facial recognition eliminates forged tickets or identity fraud , protecting scenic spot ticket revenue .
Built in self diagnosis module triggers an automatic alarm when an abnormality occurs . The operating status can be programmed on site via the keypad on the main control board , flexibly adapting to different visitor flow scenarios .
In the event of a power failure , the turnstile triggers fire mode , sounds an alarm , and automatically opens the gate . The passage remains open to ensure emergency evacuation , and closes automatically when power is restored . If no passage occurs within 10 seconds after the gate opens , the permission is automatically cancelled , effectively preventing tailgating .

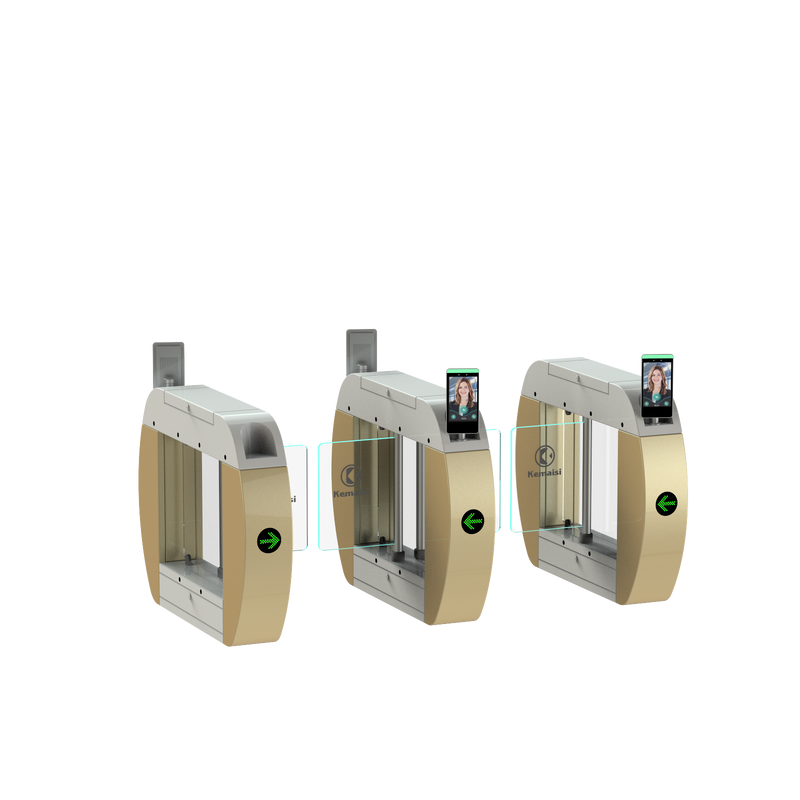

| Product Name | Swing Turnstile |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*200mm*900mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-800mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Weight | 40-65KG |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| LED indicator lights | 2 |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. It supports face recognition, RFID cards, QR codes, fingerprint readers, NFC, Bluetooth credentials, and third-party authentication devices.
Yes. Standard lane widths range from 600 mm to 900 mm, with wider lanes available for wheelchair access and luggage passage.
Yes. An optional IP65 waterproof version is available for outdoor and semi-outdoor environments.
The gate supports TCP/IP, RS485, Wiegand, Dry Contact, and API integration, making it compatible with most access control systems.
Yes. We provide customized dimensions, colors, branding, software integration, and packaging to meet project-specific requirements.
