| Brand Name: | Kemaisi |
| Model Number: | KMS-B8662 |
| MOQ: | 1 pcs |
| Price: | USD650-USD1300 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

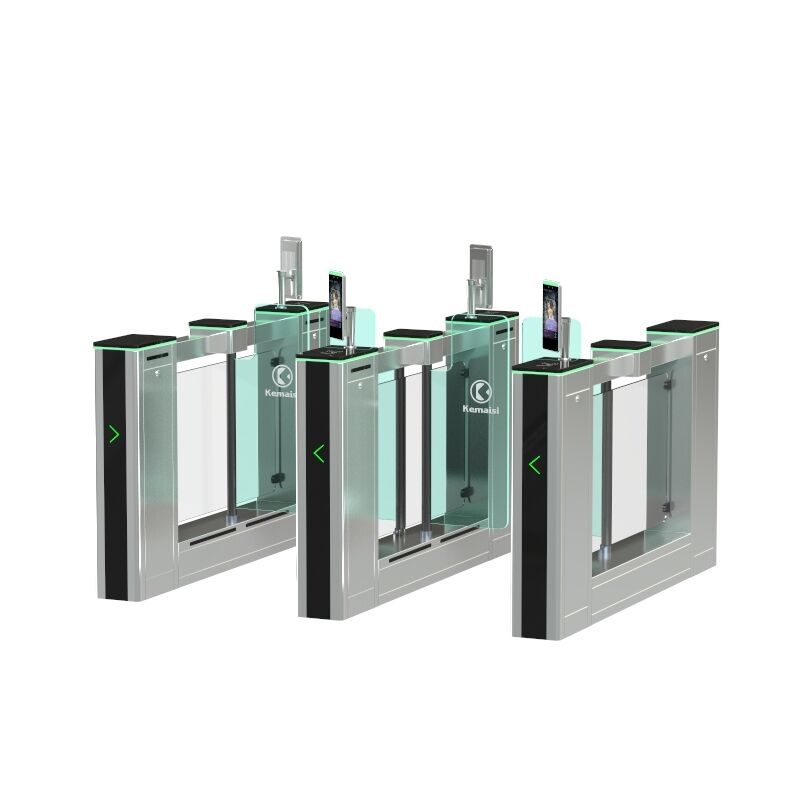

In places such as technology companies , large and medium sized office buildings , high end communities , and smart campuses , traditional visitor management relies on manual registration at the reception desk . This is not only inefficient but also leaves an unprofessional impression on visitors . Temporary visitor cards or access cards are often at risk of being lost , creating security hazards . This intelligent turnstile provides a new solution : visitors make an online reservation and receive a dynamic QR code , then scan the code to pass through the turnstile – a completely paperless process with no front desk intervention . The system grants passage permissions strictly according to the reserved time slot , and expired QR codes automatically become invalid , effectively enhancing the security level . Employees and regular occupants can also choose to pass using facial recognition , completely eliminating the need for physical cards . The device has built in fault self diagnosis and alarm functions for easy daily maintenance . The operating status can be programmed on site via the built in keypad on the main control board . The main board is equipped with an LCD screen with a Chinese display , making parameter settings intuitive and fast . In the event of a power failure , the turnstile triggers fire mode , sounds an alarm , and automatically opens the gate . The passage remains open after power loss and closes automatically when power is restored . In addition , the system has an automatic reset function : if no passage occurs within the set time after the gate opens ( default 10 seconds ) , the current permission is automatically cancelled , preventing tailgating or misuse . This turnstile is an ideal choice for improving entrance management efficiency and professional image .
Visitors make an online reservation and receive a dynamic QR code , then scan the code to pass through the turnstile , completely replacing manual front desk registration and temporary cards , enhancing reception efficiency and the company ‘ s professional image . Passage is only allowed during the reserved time slot . Expired QR codes automatically become invalid , eliminating overtime stays or unauthorised entry , significantly strengthening the security level .
Supports facial recognition verification . Employees and regular occupants can pass by using facial recognition , completely eliminating the security risks and card replacement hassle caused by lost access cards .
Built in self diagnosis module triggers an automatic alarm when an abnormality occurs . The operating status can be programmed on site via the keypad on the main control board , flexibly adapting to management needs for different time periods or special events . The main board is equipped with an LCD screen with a multilingual display , making parameter settings intuitive and convenient , lowering the operational threshold and facilitating quick configuration by on site personnel .
In the event of a power failure , the turnstile triggers fire mode , sounds an alarm , and automatically opens the gate . The passage remains open to ensure emergency evacuation , and closes automatically when power is restored . If no passage occurs within 10 seconds after the gate opens , the permission is automatically cancelled , effectively preventing tailgating or misuse .
| Product Name | Swing Turnstile |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1700mm*200mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-1000mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Weight | 40-65KG |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| LED indicator lights | 2 |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. It supports facial recognition, RFID cards, QR codes, fingerprint readers, NFC, Bluetooth, and mobile credentials.
Yes. Standard lane widths range from 600 mm to 900 mm, with wider lanes available for wheelchair and luggage access.
Yes. An IP65-rated outdoor version is available for outdoor and semi-outdoor applications.
The gate supports TCP/IP, RS485, Wiegand, Dry Contact, and API integration, ensuring compatibility with most access control systems.
Yes. We offer complete customization, including dimensions, branding, hardware configuration, software integration, and packaging.
