| Brand Name: | Kemaisi |
| Model Number: | KMS-B8803 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
Residential communities experience frequent entries and exits every day . Under the traditional access control model , residents who forget their access cards are often locked out , resulting in a very poor experience . Meanwhile , delivery and courier personnel can enter and exit freely , creating serious security risks . This intelligent turnstile supports multiple access methods such as card swiping , QR code , facial recognition , and mobile NFC . Residents can easily return home by using facial recognition or scanning a QR code , completely eliminating the worry of forgotten cards . Outsiders must be authorised before entering , effectively blocking unauthorised personnel and enhancing the community security level . The modern appearance combined with intelligent recognition technology significantly enhances the building ‘ s technological image and professional appeal , helping to attract high quality residents . The device is equipped with an anti pinch mechanism : when the swing arm encounters resistance , it automatically rebounds , with a force not exceeding 2 kg . Unauthorised entry or tailgating immediately triggers an audible and visual alarm . When no opening signal is received , the swing arm automatically locks to prevent forced entry . If no passage occurs within the set time after the gate opens ( default 10 seconds ) , the system automatically cancels the current permission , preventing misuse . This turnstile is a reliable choice for improving the entry experience and security management level of residential communities .
Supports various verification methods such as card swiping , QR code , facial recognition , and mobile NFC . Residents no longer need to carry an access card , completely eliminating the embarrassment of being locked out due to a forgotten card , while also accommodating different user groups such as the elderly and children . The modern minimalist design combined with intelligent recognition technology enhances the community ‘ s technological atmosphere and professional grade , increasing the property ‘ s brand value and helping to attract quality residents .
When the swing arm encounters resistance during reset , it automatically rebounds or the motor stops , with a maximum impact force not exceeding 2 kg , providing a safe passage environment for the elderly , children , and residents carrying items .
Unauthorised entry or tailgating immediately triggers an audible and visual alarm , effectively deterring violators and ensuring entrance order and resident safety . When no valid opening signal is received , the swing arm automatically locks , preventing forced opening by external force and blocking entry by unauthorised individuals .
If no one passes within 10 seconds after the gate opens , the system automatically cancels the current permission , requiring re verification , effectively preventing a single authorisation from being exploited for tailgating or wasted unintentionally .

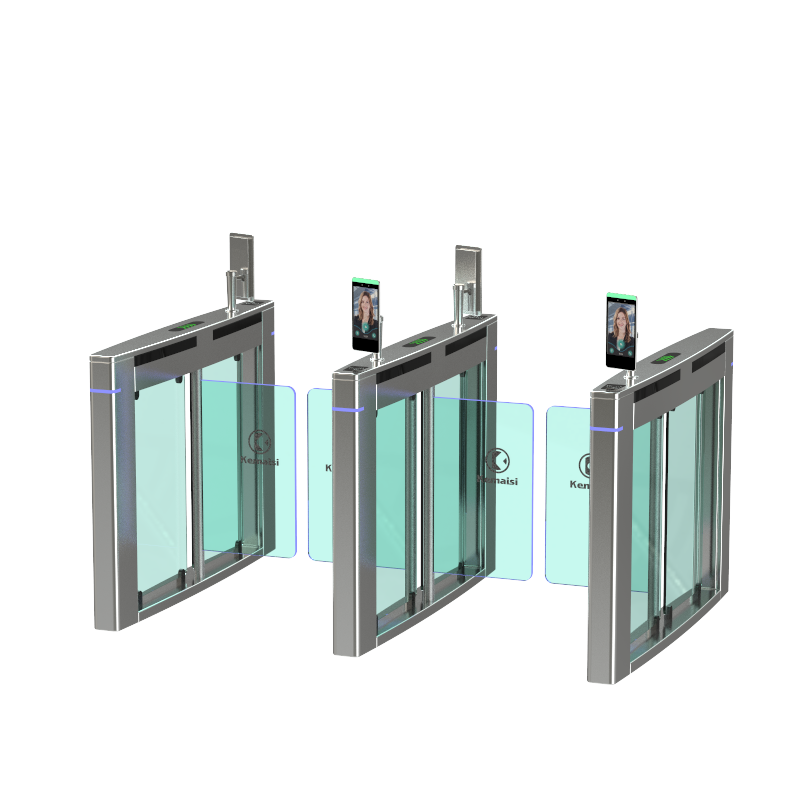

| Product Name | Swing Turnstile |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*150mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-1000mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Weight | 40-65KG |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| LED indicator lights | 2 |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. It supports facial recognition, RFID cards, QR codes, fingerprint readers, NFC, Bluetooth, and mobile credentials.
Yes. Standard passage widths range from 600 mm to 900 mm, with wider lanes available for wheelchair and luggage access.
Yes. An optional IP65-rated waterproof version is available for outdoor applications.
The gate supports TCP/IP, RS485, Wiegand, Dry Contact, and API integration, ensuring compatibility with most mainstream access control systems.
Yes. We provide customized dimensions, branding, hardware configurations, software integration, and packaging.
Looking for a trusted Slim Speed Gate Turnstile Manufacturer, Swing Barrier Gate Supplier, or Pedestrian Access Control Solution Provider?
KEMAISI delivers intelligent entrance control systems for distributors, contractors, and system integrators worldwide.
Contact us today for:
Factory Direct Pricing
OEM & ODM Customization
Product Catalog
Technical Consultation
Fast Worldwide Shipping
Professional After-Sales Support
