| Brand Name: | Kemaisi |
| Model Number: | KMS-P321 |
| MOQ: | 1 pcs |
| Price: | USD700-USD1400 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

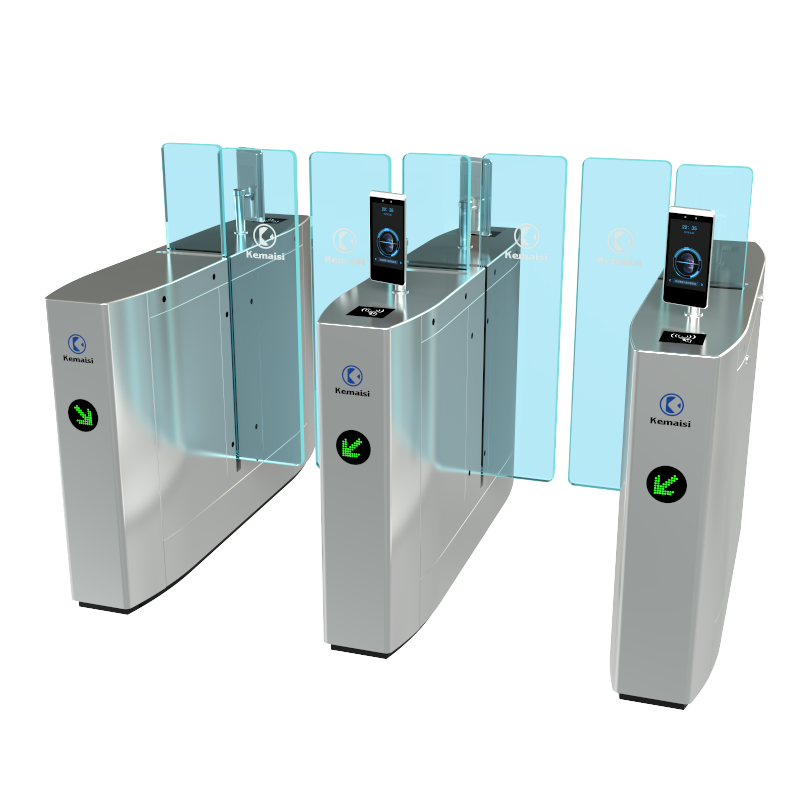

The Kemaisi smart passage turnstile is specifically designed for high end environments such as office buildings , enabling a completely paperless visitor experience . Visitors make an online reservation and receive a dynamic QR code , then scan the code to pass through the turnstile , eliminating paper registration and temporary cards . The system grants passage permissions strictly according to the reserved time slot , and expired QR codes automatically become invalid , effectively enhancing the security level . The device features fine workmanship , comprehensive functions , and a high end appearance . It integrates mechanical , electronic , microprocessor control , and various identification technologies . It is compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , and more , and optional modules such as safety protection , alarm devices , and direction indicators can be added to achieve intelligent passage control . Built in fault self diagnosis and alarm functions make daily maintenance simple . The operating status can be programmed on site via the built in keypad on the main control board . The main board is equipped with an LCD screen that supports multiple display modes , making operation intuitive and fast .
Visitors make an online reservation and receive a dynamic QR code , then scan the code to pass through the turnstile , completely replacing paper registration and temporary cards , enhancing the company ‘ s professional image .
Passage is only allowed during the reserved time slot . Expired QR codes automatically become invalid , eliminating overtime stays or unauthorised entry , strengthening the security level .
Fine workmanship , comprehensive functions , and a high end appearance make it perfectly suitable for high end scenarios such as office buildings and technology parks , enhancing the building ‘ s technological image .
Integrates mechanical , electronic , and microprocessor control technologies . Compatible with card readers for IC cards , ID cards , barcode cards , fingerprints , etc . Optional modules such as alarms and direction indicators can be added for flexible expansion .
Built in fault self diagnosis and alarm functions quickly locate abnormalities . The keypad on the main control board supports on site programming of the operating status , reducing maintenance difficulty .
The main board is equipped with an LCD screen that provides multiple display modes . Parameter settings are intuitive and fast , facilitating operation in different languages or scenarios .
| Product Name | Sliding Turnstile |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*350mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 25 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-600mm |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared sensor | 4 pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width> 100ms; R$485 or TCP/IP |
A Sliding Gate Turnstile is an automated pedestrian access control gate that uses motorized glass barriers to control entry and exit. It is commonly used in office buildings, transportation hubs, and commercial facilities.
Yes. It supports face recognition, RFID cards, fingerprint readers, QR codes, barcode scanners, and mobile credentials.
Yes. It can be configured for single-direction or bi-directional operation based on your project requirements.
Yes. Standard passage widths range from 550 mm to 900 mm, with wider lanes available for wheelchair or ADA-compliant access.
Yes. The gate supports TCP/IP, RS485, and Wiegand communication protocols, allowing seamless integration with access control platforms, visitor management systems, and building management software.
Yes. We offer full OEM and ODM customization, including logo branding, cabinet dimensions, software integration, communication protocols, and project-specific designs.
