| Brand Name: | Kemaisi |
| Model Number: | KMS-G618 |
| MOQ: | 1 pcs |
| Price: | USD235-USD470 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
In highly sensitive workshops such as semiconductor packaging, chip testing, precision optics, and aerospace electronics, static electricity carried by employees can reach several thousand volts. Contact with precision components can cause invisible damage, directly leading to lower yields, customer claims, or even quality incidents. Traditional management relies only on a sign reading “Please touch the static discharge ball”. Employees in a hurry often forget or skip the step, making electrostatic protection ineffective. Once a quality complaint arises, it is impossible to trace accountability. The Kemaisi intelligent electrostatic turnstile completely solves this point through mandatory testing. Employees must pass through the test pad next to the turnstile; the gate opens only when the static value is within the acceptable range, physically preventing non-compliant personnel from entering the workshop. If the test fails, the system gives a voice prompt: “Static excessive – please use the static discharge ball”. The employee presses the configured static discharge ball for 3 to 5 seconds and then retests. If the result is acceptable, passage is granted. All passage records are automatically saved, including employee ID, time, static value, pass or fail result, and whether the discharge ball was used. The quality department can retrieve reports at any time for customer complaint tracing and internal audits. The body is made of 304 stainless steel, which is waterproof, UV resistant, cold resistant, and heat resistant. The mechanism operates smoothly with low noise, is robust and durable, providing a reliable first line of defence for high-end manufacturing workshops.
Employees must complete the static value test on the pad next to the turnstile. The gate opens only when the value is acceptable. Those who fail cannot enter. This physically enforces the electrostatic protection procedure, completely replacing the uncontrollable mode of “self-disciplined touching”.
When the test fails, the system automatically gives a voice prompt: “Static excessive – please use the static discharge ball”. The employee presses the built-in static discharge ball for 3 to 5 seconds and then retests. The entire process requires no manual intervention, allowing quick resumption of passage without affecting work efficiency.
Every passage record is automatically saved, including employee ID, test time, static value, pass or fail status, and whether the discharge ball was used. The quality department can export reports at any time for accurate complaint tracing, internal audits, and continuous improvement, making management evidence-based.
The body is made of 304 stainless steel, offering waterproof, UV resistant, cold resistant, and heat resistant properties, withstanding complex workshop environments. The internal mechanism uses a unique mechanical structure, operating smoothly with low noise and an ultra-long service life, ensuring sustained reliability under high-frequency testing and passage.
| Product Name | ESD Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*280mm*980mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |

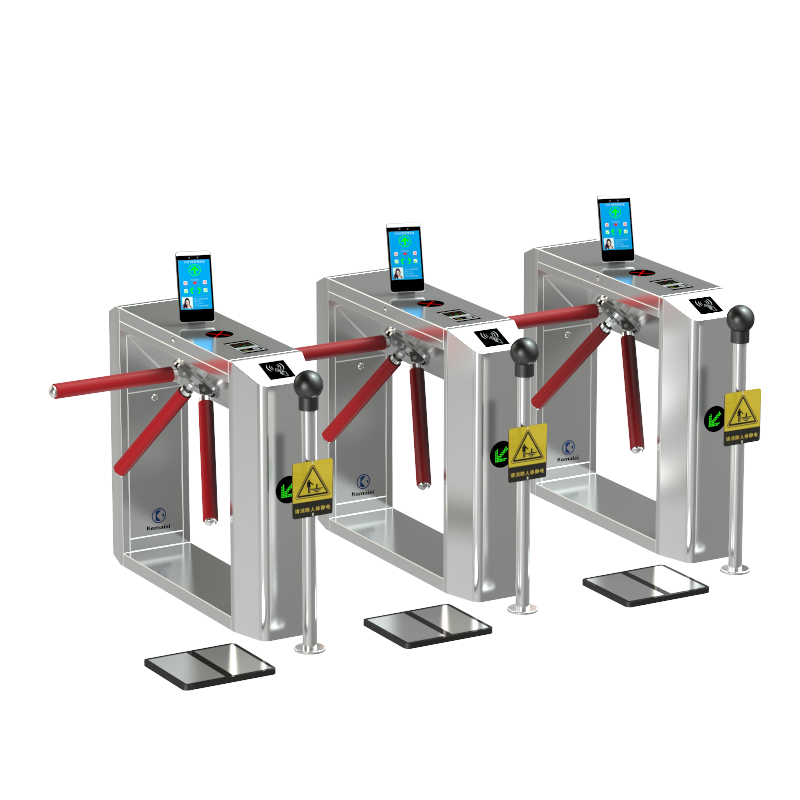

An ESD tripod turnstile combines electrostatic discharge testing with tripod barrier access control. Users must pass ESD grounding verification before the turnstile unlocks.
The system supports wrist strap testing, dual wrist strap testing, footwear resistance testing, heel grounder testing, and combined ESD verification.
Yes. It supports face recognition, RFID cards, fingerprint scanners, QR codes, barcode readers, and other authentication methods.
Yes. The controller supports TCP/IP, RS485, and Dry Contact communication, making integration with MES, ERP, HR, and access control platforms straightforward.
Yes. We provide OEM and ODM services, including branding, hardware customization, software integration, communication protocol development, and project-specific solutions.
Looking for a reliable ESD Tripod Turnstile Manufacturer or ESD Access Control System Supplier?
We provide:
Factory Direct Pricing
Professional Technical Support
OEM & ODM Services
Product Datasheets
Global Shipping
Integration Assistance
Fast Project Quotations
Contact us today to discuss your ESD protection and access control requirements.
