| Brand Name: | Kemaisi |
| Model Number: | KMS-G6305 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

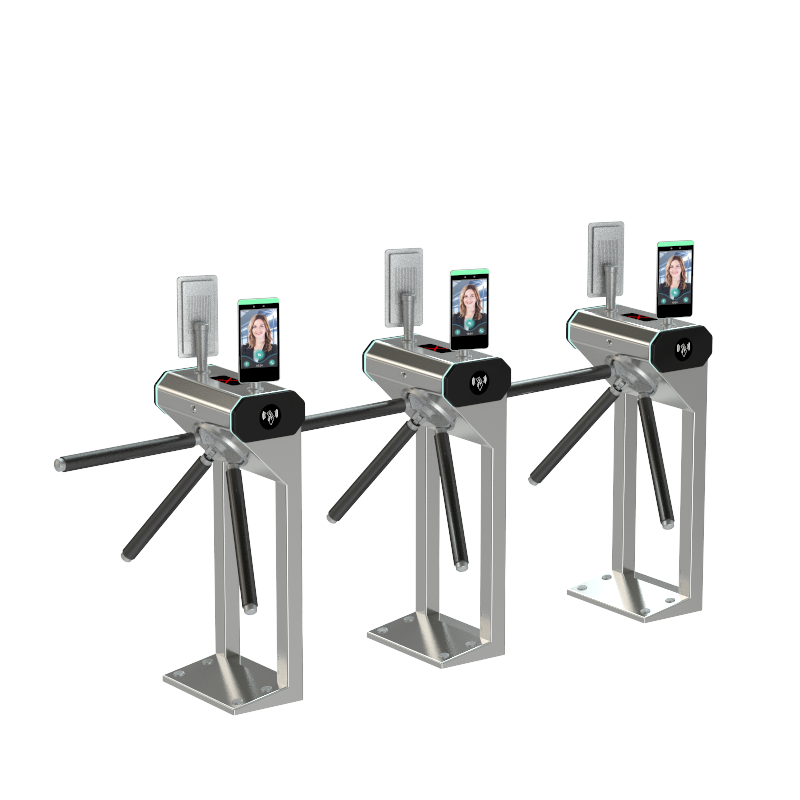

Exhibition halls handle large volumes of pedestrian traffic every day , but traditional management models have prominent points : overcrowding during holidays leads to severe overcapacity and high stampede risks ; the number of people inside can only be estimated by staff visually , making it impossible to accurately count the real-time number of people inside , let alone determine when to stop allowing entry . The Kemaisi intelligent turnstile provides a one-stop visitor flow management solution for exhibition halls : it supports online ticket purchase followed by fast QR code , RFID card , or NFC-enabled mobile phone scanning for entry , with a throughput speed of over 30 people per minute , quickly processing queuing crowds even during peak hours . Sensors inside the turnstile accurately count every entry and exit record , calculating the current number of people inside the venue in real time , and automatically triggering a capacity alert when the preset threshold is reached . The system can also enable a dynamic flow limiting mechanism – setting a precise “ one out , one in ” rotation logic , or directly closing the entry lanes and switching to one-way exit mode , completely eliminating the risk of overcrowding . The mechanism uses a unique mechanical structure , operating smoothly with low noise and a long service life . The entire unit is waterproof , UV resistant , cold resistant , and heat resistant , allowing deployment both indoors and outdoors , providing safe , intelligent , and reliable passage protection for various exhibition halls .
Supports online ticket purchase followed by QR code , RFID card , or NFC-enabled mobile phone scanning for entry , with flexible compatibility across multiple media . Throughput speed can reach over 30 people per minute , quickly dispersing visitor flow even during peak hours , greatly improving the visitor entry experience .
Sensors inside the turnstile separately count entry and exit numbers , accurately calculating the current number of people inside the venue in real time , completely eliminating visual estimation . Remaining capacity is dynamically updated , and when the preset threshold is reached , the system automatically triggers an alert , notifying management immediately .
The system can be set with a precise “ one out , one in ” rotation logic to achieve dynamic balance of venue occupancy ; or it can directly close the entry lanes and switch to one-way exit mode , forcefully controlling incoming visitor flow and eliminating stampede risks at the source .
The internal mechanism uses a unique mechanical structure with a reliable design , operating smoothly with low noise , suitable for venues such as exhibition halls that have requirements for environmental noise . Maintains excellent performance even under high-frequency start-stop cycles , significantly reducing maintenance costs .
The entire unit is designed to be waterproof , UV resistant , cold resistant , and heat resistant , withstanding outdoor sun , rain , or extreme temperature changes . Whether indoors or for temporary outdoor exhibitions , it can be flexibly deployed and operate reliably .
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 440mm*260mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
A tripod turnstile is a pedestrian access control gate with three rotating arms that allows one person to pass at a time after successful authentication.
Yes. It supports face recognition terminals, RFID cards, fingerprint readers, QR code scanners, barcode readers, and mobile credentials.
The standard model is designed for indoor or covered outdoor use. Weatherproof customization is available for exposed outdoor environments.
Yes. The turnstile can be configured for single-direction or bi-directional operation.
Yes. We provide custom branding, cabinet modifications, communication protocol integration, and software customization based on project requirements.
