| Brand Name: | Kemaisi |
| Model Number: | KMS-G6507 |
| MOQ: | 1 pcs |
| Price: | USD500-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |
During holidays , ticket checking queues at major scenic spots stretch for a long way . Manual ticket checking is inefficient , leaving visitors discouraged . Paper tickets are easily forged or lost , and ticket evasion and disputes are rampant , directly eroding scenic spot revenue . The Kemaisi intelligent turnstile for scenic spots is tailor-made for cultural tourism scenarios . It supports multiple ticket verification methods such as QR code , ID card , facial recognition , and annual pass , enabling 1‑second ultra‑fast passage and freeing visitors from queuing . The system uses dual verification technology combining dynamic QR codes and facial recognition , effectively preventing screenshot fraud and ticket scalping . The housing is made of 304 stainless steel , offering corrosion resistance and impact resistance , maintaining a like‑new appearance even after long‑term outdoor use . The unique mechanical structure ensures smooth operation , low noise , and long service life , significantly reducing maintenance costs . In the event of a power failure , the gate automatically opens to mechanical free‑passage mode , ensuring unobstructed emergency evacuation of visitors and fully complying with fire safety regulations . It is suitable for parks , scenic spots , outdoor playgrounds , and other cultural tourism venues , improving visitor satisfaction through intelligent passage and protecting ticket revenue through rigorous anti‑counterfeiting .
Supports multiple media such as QR code , ID card , facial recognition , and annual pass , compatible with online and offline ticketing channels . Verification and gate opening are completed within 1 second , quickly processing visitor flow during peak hours and eliminating long queues .
Dynamic QR code and facial recognition dual verification make screenshots unusable and identity fraud impossible . Each ticket is valid for one use by the holder only , technically blocking scalping and ticketing disputes .
The housing is made of 304 stainless steel , offering corrosion resistance , impact resistance , and UV resistance , maintaining its appearance despite long‑term sun and rain exposure . No frequent maintenance is required , adapting to various outdoor scenic area environments .
The internal mechanism adopts a unique mechanical design , operating smoothly with extremely low noise , without disturbing the scenic atmosphere . It remains reliable under high‑frequency start‑stop cycles , significantly reducing scenic area operation and maintenance costs .
In the event of a sudden power failure , the gate automatically opens and switches to mechanical free‑passage mode , fully opening the passage , ensuring rapid and unobstructed evacuation of visitors in emergencies , fully complying with fire safety regulations .

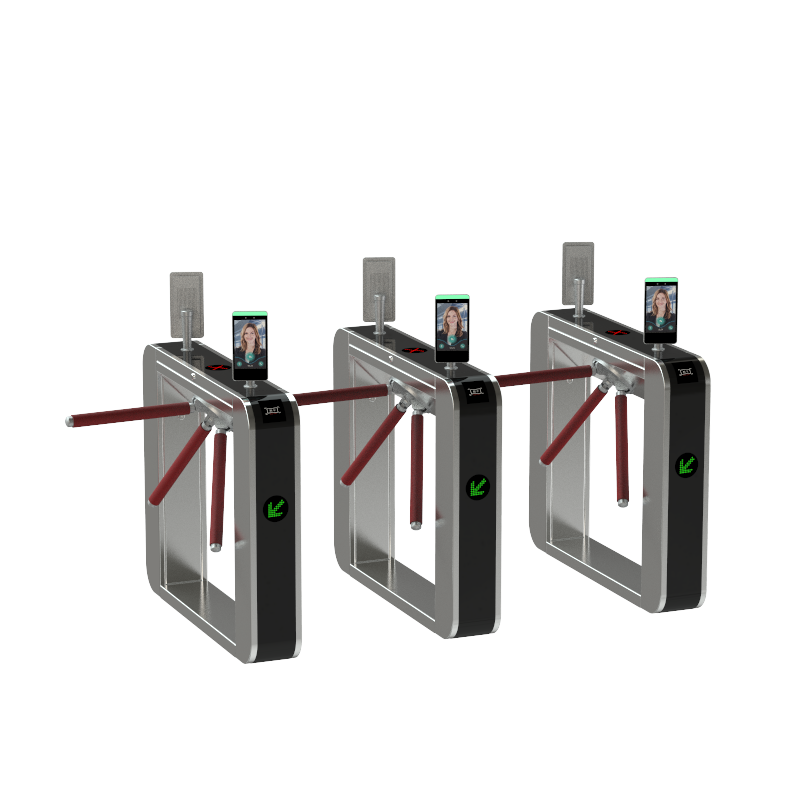

| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550mm-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
An Open Frame Tripod Turnstile is a waist-high access control gate featuring a modern open-frame cabinet and three rotating arms that allow only one authorized person to pass at a time.
Yes. It supports face recognition terminals, RFID card readers, fingerprint scanners, QR code readers, barcode scanners, and mobile access credentials.
The standard model is suitable for indoor and covered outdoor installations. Weather-resistant customization is available for outdoor environments.
Yes. The turnstile can be configured for single-direction or bi-directional pedestrian control.
Yes. We provide comprehensive OEM and ODM solutions, including branding, cabinet customization, software integration, and communication protocol development.
