Tripod Turnstile
Created with Pixso. Smart Tripod Turnstile Gate With Face Recognition For Access Control

Smart Tripod Turnstile Gate With Face Recognition For Access Control

Brand Name: Kemaisi
Model Number: KMS-G6511
MOQ: 1 pcs
Price: USD650-USD1300
Delivery Time: 5-14 work days
Payment Terms: T/T
Detail Information
Place of Origin:
Guang Dong China
Certification:
CE | RoHS
Product Name:
Tripod Turnstile
Passage Frame:
304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size:
420mm*320mm*1700mm
Channel Width:
550mm-600mm
Rotation Angle Per Step:
120°
Product Power:
50W
Packaging Details:
Wooden Case Package
Supply Ability:
1000peices/Month
Product Description

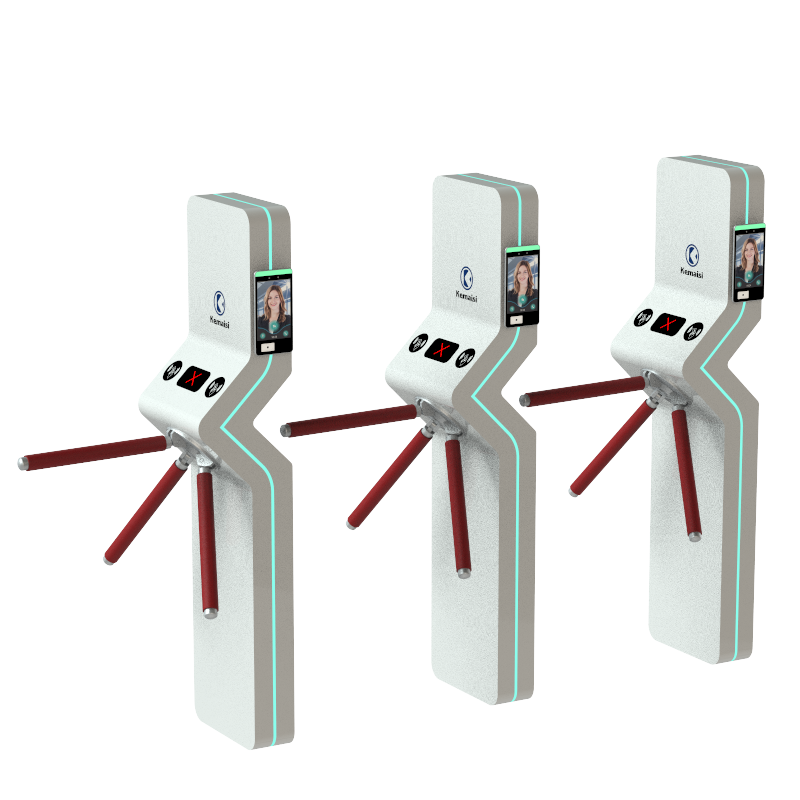

Smart Tripod Turnstile Gate With Face Recognition For Access Control

Product Description


Traditional office building access control relies on access cards , which are easily lost or copied , creating security risks . Attendance records require manual compilation or export from punch clocks , and administrative staff spend significant time and effort on monthly statistics , resulting in low efficiency . The Kemaisi intelligent turnstile is deployed at the lobby entrance , achieving “ passage as attendance ” – each time employees enter or exit , the system automatically records clock-in and clock-out times , and managers can generate attendance reports with a single click from the backend , completely eliminating tedious manual statistics . The device supports two-in-one facial recognition and card swiping , allowing employees to pass using facial recognition without carrying an access card , enhancing both security and user experience . The entire unit is made of 304 stainless steel , which is robust , durable , and offers waterproof , UV-resistant , cold-resistant , and heat-resistant properties . The mechanism uses a unique mechanical structure , operating smoothly with low noise and an ultra-long service life . In the event of a power failure , the gate automatically unlocks and switches to mechanical free-passage mode , fully complying with fire evacuation requirements . The system also features an automatic reset function : after gaining permission , if the user does not pass within the set time , the authorisation is automatically cancelled and the gate resets , preventing tailgating or abuse . It is suitable for technology companies , large and medium-sized office buildings , high-end communities , and office buildings .


Features and Advantages

1 . Passage as attendance , greatly improving administrative efficiency

Each time employees pass through the turnstile , the system automatically records timestamps and matches shift rules . Managers can export attendance reports with a single click from the backend , showing lateness , early departures , and overtime at a glance , completely freeing up administrative staff .


2 . Facial recognition passage , eliminating the need for access cards

Supports both facial recognition and card swiping , allowing employees to pass quickly using facial recognition without carrying an access card . This not only solves the problems of lost or forgotten cards but also eliminates the security risk of cards being copied or stolen .


3 . Smooth and low-noise mechanism , ultra-long service life

The internal mechanism adopts a unique mechanical design , operating smoothly with extremely low noise , without disturbing the lobby office environment . It maintains excellent performance under high-frequency start-stop cycles , significantly reducing maintenance costs .


4 . Automatic gate opening on power failure , worry-free fire evacuation

In the event of a sudden power failure , the gate automatically unlocks and switches to mechanical free-passage mode , fully opening the passage to ensure rapid and unobstructed evacuation in emergencies , fully complying with fire safety regulations .


5 . 304 stainless steel body , adaptable to all environments

The entire unit is made of 304 stainless steel , which is robust , durable , corrosion-resistant , and impact-resistant . It is also waterproof , UV-resistant , cold-resistant , and heat-resistant . Whether installed in an indoor lobby or a semi-outdoor entrance , it maintains a like-new appearance even after long-term use .


Product NameTripod Turnstile
Barrier Material304 Stainless Steel / 201 Stainless Steel With Baked Paint
Passage Frame304 Stainless Steel / 201 Stainless Steel With Baked Paint
Product Size420mm*320mm*1700mm (Sizes Can Be Customized)
Traffic Speed30 People/Minute, Normally Open 40 People/Minute
Service Life≥5 Million Times
Channel Width550mm-600mm
Rotation angle per step120°
Working VoltageAC220V±10%/50HZ 50W
Relative Temperature≤95% Not Condensing
Product Power50W
Opening Time0.5 Seconds
Ambient Temperature-30℃-70℃
Work EnvironmentIndoor And Outdoor
Protection GradeIP43, IP54
Access Control TypeRFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening
Communication InterfaceRelay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP


Smart Tripod Turnstile Gate With Face Recognition For Access Control


Frequently Asked Questions

1. What authentication methods does this tripod turnstile support?

In addition to built-in facial recognition, the system can be customized to support IC/ID cards, QR code scanning, and fingerprint recognition to meet diverse management requirements.


2. How does the barrier respond during power outages or emergencies?

The turnstile features an automatic drop-arm mechanism during power failures. In emergencies, the arm drops down immediately to clear an unhindered evacuation pathway for safety compliance.


3. How are attendance records managed and exported?

All log data syncs in real time to the management platform. Administrators can access the software via a web browser to review logs and instantly export reports in Excel format.


4. How complex is the installation and site setup?

The gate utilizes a modular design for straightforward installation. It simply requires a flat ground surface, standard power supply, and a local network connection to get up and running quickly.


5. Is this turnstile suitable for outdoor installation?

This model is optimized for indoor lobbies. For semi-outdoor or outdoor environments, we recommend installing a protective canopy or opting for customized weatherproof models.
