| Brand Name: | Kemaisi |
| Model Number: | KMS-Y7526 |
| MOQ: | 1 pcs |
| Price: | USD620-USD1300 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

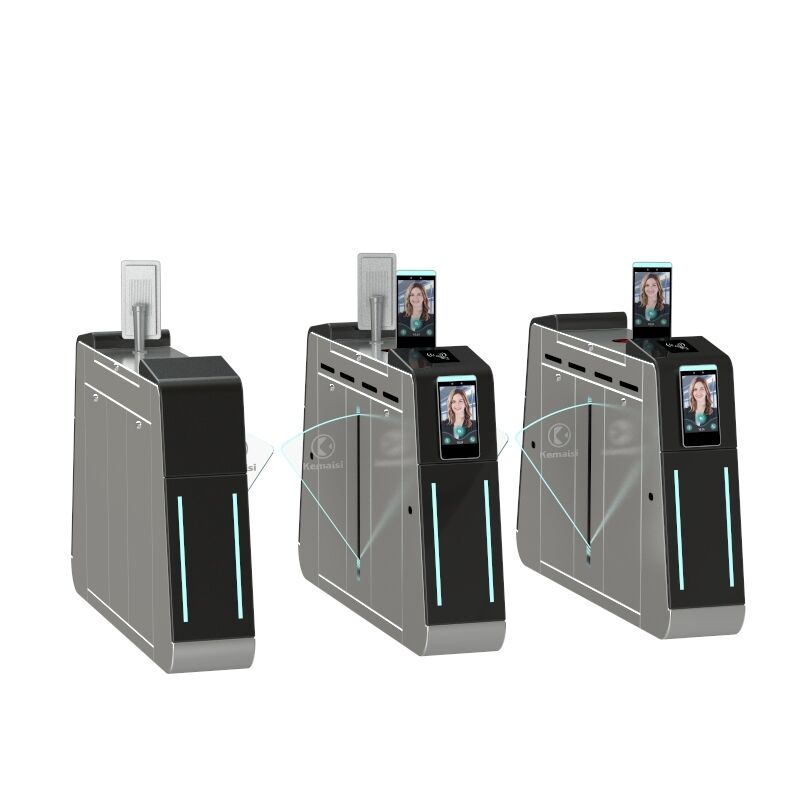

Wing Barrier for Amusement Park Entrance with QR Code Wristband Access Control
Product Description
Amusement parks, indoor playgrounds and trampoline parks need an entrance that is fast for families yet impossible to cheat. The Kemaisi intelligent wing barrier is purpose built for these park entrances and works with customised QR code wristbands. Visitors scan the wristband QR code both when entering and exiting, and operators can flexibly configure passage rules through the backend, for example single entry plus one exit for toilet use, or multiple entries and exits, effectively preventing one ticket from being shared by several people. The wristbands are anti tamper and tear proof: once forcibly opened or torn, the QR code automatically becomes invalid, so it cannot be transferred to another person. Self service QR code passage eliminates manual ticket checking, keeping the entrance smooth and congestion free even at peak hours. The anti pinch swing arm limits impact force to 2 kg, the system cancels unused permissions after 10 seconds to stop tailgating, and on power failure the gate triggers a fire alarm and opens automatically. Fine workmanship and comprehensive functions enhance the park technological and professional image and attract more family customers.
Operating Modes
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
Features and Advantages
1 . Flexible passage rules for park entrances
The backend can configure single entry plus one exit for toilet use, or multiple entries and exits, so operators prevent one ticket being shared by several people and protect ticket revenue.
2 . Anti tamper and tear proof wristband prevents transfer
Once the wristband is forcibly opened or torn, the QR code is immediately damaged and becomes invalid, fundamentally preventing the wristband from being transferred to others or reused.
3 . Self service QR code for fast park entry
Visitors scan their own QR codes to pass through, eliminating manual ticket checking. Entry stays smooth at peak hours, staff workload drops and parent satisfaction rises.
4 . Gentle anti pinch, safe for children and adults
When the swing arm meets resistance it automatically rebounds or the motor stops, with a maximum impact force not exceeding 2 kg, providing a safe passage environment for children and adults.
5 . Automatic reset and fire mode
If no one passes within 10 seconds after opening, the permission is cancelled to prevent tailgating. On power failure the gate triggers a fire alarm and opens automatically for rapid evacuation.
6 . Fine quality enhances the park technological image
Modern intelligent design and comprehensive functions convey a sense of technology, helping the park shape a professional, high end brand image and attract more family customers.
Product Specifications
| Product Name | QR Code Access Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*300mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP |
FAQ
Q1: Is this wing barrier suitable for an amusement park entrance?
Yes. It is designed for indoor playgrounds, trampoline parks and children amusement parks, using QR code wristbands for smooth, cheat proof entry and exit.
Q2: How does it stop ticket sharing?
Operators configure passage rules such as single entry plus one exit, and the anti tear wristband invalidates its QR code once opened, so a ticket cannot be shared or transferred.
Q3: Is it safe for children?
Yes. The anti pinch swing arm limits impact force to 2 kg, and on power failure the gate opens automatically in fire mode for safe evacuation.
Q4: What is the minimum order quantity and delivery time?
The MOQ is 1 pc and delivery is 5-14 work days. Sizes, wristband printing and access modules can be customized for your park.
