| Brand Name: | Kemaisi |
| Model Number: | KMS-Y71123 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

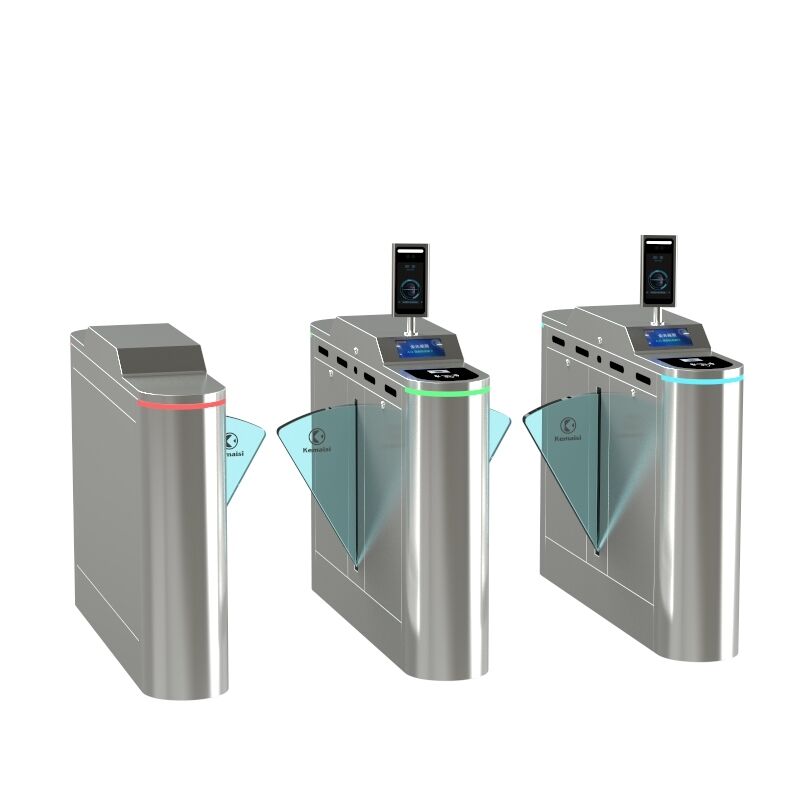

This outdoor wing barrier turnstile is designed for playgrounds , theme parks , scenic spots , stadiums , swimming pools and other outdoor entrances , providing reliable access control and ticket management in all weather conditions . Visitors enter by QR code ticket , facial recognition , RFID/IC/ID card , NFC or password , and the acrylic wings open quickly for smooth , orderly entry even during peak times . The housing uses 304 stainless steel with a weather resistant finish , protecting the mechanism from rain , dust and temperature changes for stable outdoor operation . Tickets , season passes , group passes and single entry passes can be managed flexibly , and the system records every entry and exit for easy ticketing statistics . Built in infrared sensors provide reliable anti tailgating protection , so only one authorised person passes at a time , while the anti crash design keeps the wings locked until a valid credential is presented . On a power failure the wing barrier automatically opens to an unlocked state for rapid and safe evacuation , and the emergency stop button on the side instantly unlocks all passages to meet fire and emergency requirements . If no passage occurs within the set time after opening , the system automatically cancels the current permission . The device offers fault self diagnosis and multiple communication interfaces , making daily operation , ticket management and system expansion easy .
Purpose built for playgrounds , theme parks , scenic spots and other outdoor venues , with stable operation in open air entrances under sun , rain and temperature changes .
The housing is made of 304 stainless steel with a weather resistant finish , protecting the mechanism and electronics from rain , dust and humidity for long term outdoor reliability .
Supports QR code tickets , season passes , group passes and single entry passes , and records every entry and exit in real time for easy ticketing and visitor statistics .
Visitors can verify by QR code , facial recognition , RFID/IC/ID card , NFC or password , and the wings open quickly for smooth , orderly entry during peak hours .
Built in infrared sensors accurately detect the position of each person and prevent tailgating , while the anti crash design keeps the wings locked until a valid credential is presented , protecting visitors and the device .
On power failure the wing barrier automatically opens for safe evacuation , and the emergency stop button instantly unlocks all passages . The fault self diagnosis module triggers an automatic alarm when an abnormality occurs , ensuring smooth daily operation .
| Product Name | Wing Gate |
| Barrier Material | Acrylic Swing Arm |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*300mm*1080mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Weight | 50-85KG |
| LED indicator | 2 pieces |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 100W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Infrared Sensor | 6 Pairs |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes . It is built for outdoor entrances with a 304 stainless steel housing and a weather resistant finish , so it operates stably in sun , rain and temperature changes at open air venues .
Visitors present a QR code ticket , season pass or group pass to the reader , and the system records each entry and exit in real time , making ticketing and visitor statistics easy for parks and scenic spots .
The wings open quickly and the lane can handle a high volume of visitors , keeping queues short even during peak hours at popular outdoor venues .
On power failure the wings automatically unlock , and the emergency stop button on the side instantly releases all passages , ensuring rapid and safe evacuation and meeting fire safety requirements .
Yes . Housing materials , passage width , access control configuration , logo branding and lane quantity can all be customized according to your project requirements .
Looking for a reliable outdoor entrance access control wing barrier turnstile gate manufacturer ? Contact us today for a free quotation and a professional access control solution .
