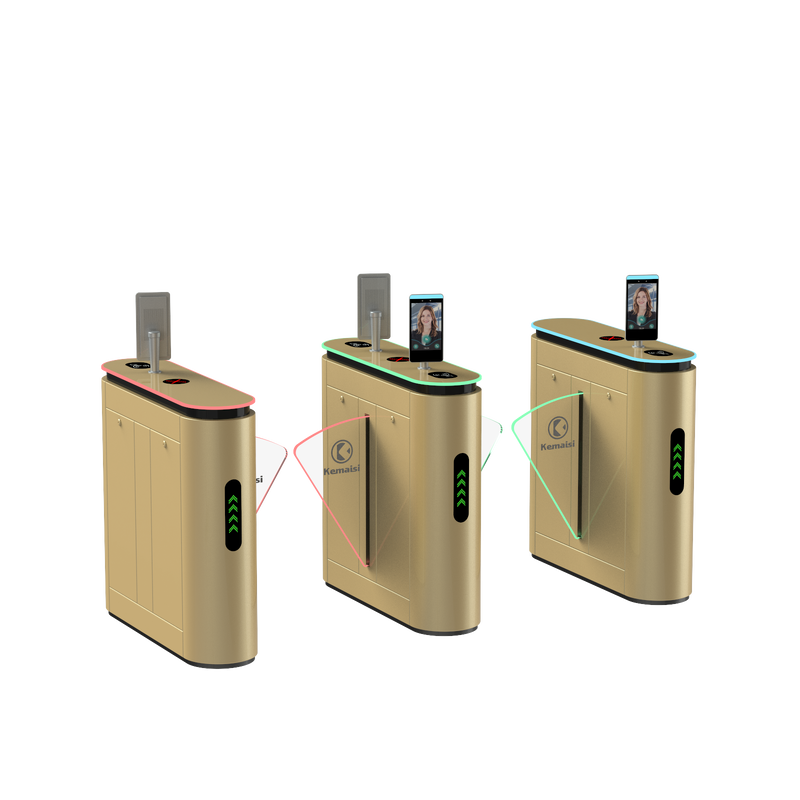

Anti Tailgating Access Control Wing Barrier Turnstile Gate

Product Description

This anti tailgating wing barrier turnstile is built to guarantee one person per valid credential at high traffic entrances . Six pairs of infrared sensors detect the exact position of every person in the passage , so if a second person tries to follow through without a valid credential , the wings will not open again and the attempted tailgating is blocked . The acrylic wings open in only 0.5 seconds , allowing 30 people per minute in normal mode and up to 40 people per minute in normally open mode , balancing security with smooth , fast passage . The system supports facial recognition , RFID/IC/ID card , QR code , NFC and password , and can be connected to various access control platforms through relay , RS485 or TCP/IP interfaces . The anti crash design keeps the wings locked until a valid credential is presented , protecting both users and the device . On a power failure the wing barrier automatically opens to an unlocked state for rapid and safe evacuation , and the emergency stop button on the side instantly unlocks all passages to meet fire and emergency requirements . If no passage occurs within the set time after opening , the system automatically cancels the current permission , further preventing misuse . The device offers fault self diagnosis and IP43 / IP54 protection , with 2 LED indicators for clear passage status .

Features and Advantages

1 . Reliable anti tailgating with 6 pairs of infrared sensors

Six pairs of infrared sensors accurately detect the position of each person in the passage and identify attempted tailgating , ensuring only one authorised person passes at a time .

2 . One person per valid credential

If a second person tries to follow through without a valid credential , the wings will not open again and the attempted tailgating is blocked , keeping the entrance strictly controlled .

3 . Fast pass with anti tailgating security

The acrylic wings open in 0.5 seconds , allowing 30 people per minute in normal mode and up to 40 people per minute in normally open mode , balancing security with efficient passage .

4 . Anti crash protection

When no opening signal is received , the swing arm automatically locks , preventing forced impact by external force and protecting both the device and the user .

5 . Dual protection : power failure and emergency stop

When power fails , the wing barrier automatically opens to an unlocked state , ensuring rapid and safe emergency evacuation . Pressing the emergency stop button on the side instantly unlocks all passages , fully meeting fire and emergency requirements .

6 . Fault self diagnosis and multi device compatibility

The built in fault self diagnosis module triggers an automatic alarm when an abnormality occurs , with 2 LED indicators for clear status and IP43 / IP54 protection , and can connect to various card readers and access control platforms .

Frequently Asked Questions (FAQ)

Q1: How does the anti tailgating function work?

Six pairs of infrared sensors detect the exact position of each person in the passage . Once one person has passed with a valid credential , a second person cannot follow through , so only one person passes per verification .

Q2: What happens if someone tries to follow through?

The system identifies the attempted tailgating and the wings will not open again without a new valid credential , blocking the unauthorised person while the lane closes behind the first user .

Q3: How fast can people pass with the anti tailgating function on?

The wings open in 0.5 seconds and the lane handles about 30 people per minute in normal mode , or up to 40 people per minute in normally open mode , while still preventing tailgating .

Q4: What happens during a power failure or an emergency?

On power failure the wings automatically unlock , and the emergency stop button on the side instantly releases all passages , ensuring rapid and safe evacuation and meeting fire safety requirements .

Q5: Can the design and lane quantity be customized?

Yes . Housing materials , passage width , access control configuration , logo branding and lane quantity can all be customized according to your project requirements .

Looking for a reliable anti tailgating wing barrier turnstile gate manufacturer ? Contact us today for a free quotation and a secure access control solution .
