Multi Function Passage Recognition Wing Barrier Turnstile Access Control System

Multi-Function Passage Recognition Wing Barrier Turnstile Access Control System

Product Introduction

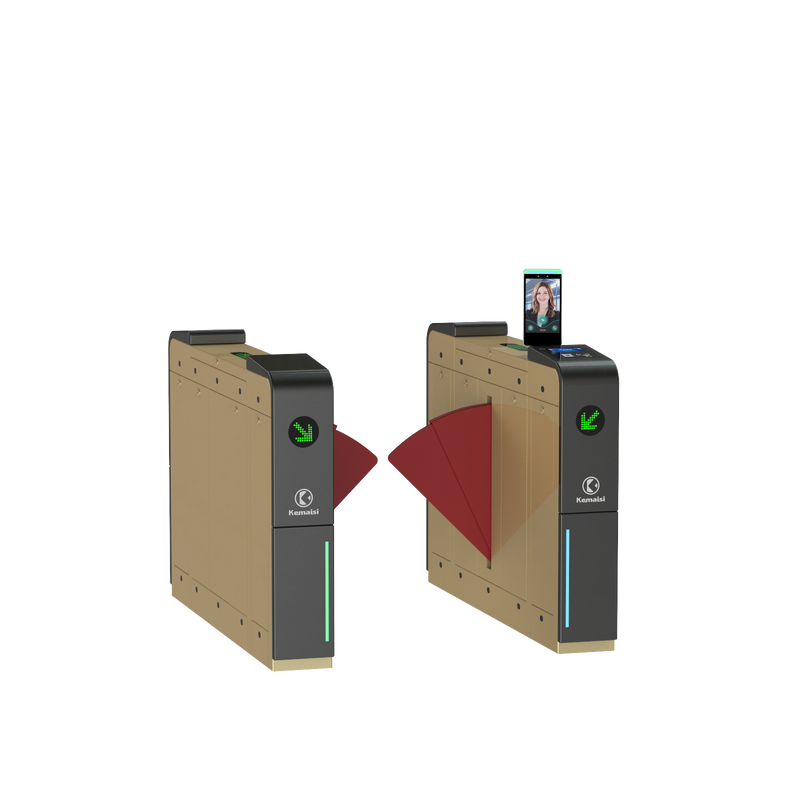

The Kemaisi multi-function passage recognition wing barrier turnstile integrates mechanical structure, electronic control, microprocessor logic and a full set of identification technologies into one compact lane. Instead of locking the site to a single verification method, it accepts face recognition, QR code, IC/ID card, fingerprint, iris, NFC mobile phone, password and remote door opening – so employees, visitors and VIP guests can each pass with the credential they already carry. Expired QR codes are invalidated automatically and the gate cancels an unused permission within 10 seconds, keeping the passage paperless and secure. With fine workmanship, comprehensive functions and a high-end appearance, it suits technology campuses, large and medium-sized office buildings and clubs, while optional safety, alarm and direction-indicator modules allow flexible expansion. Fault self-diagnosis, audible and visual anti-tailgating alarms, and automatic fire-mode door opening on power failure complete the package.

Product Advantages

1 . Multi-function passage recognition

One turnstile recognises face, QR code, IC/ID card, fingerprint, iris, NFC phone, password and remote door opening, letting you run several verification methods in the same lane instead of buying dedicated hardware for each one.

2 . Flexible credential switching

Employees can pass by face recognition without carrying a card, while visitors keep using QR codes or temporary cards. The two-in-one logic adapts to different passage habits and improves convenience for every user group.

3 . Paperless visitor management

Visitors reserve online in advance, receive a dynamic QR code and scan to enter – completely replacing manual reception-desk registration and lifting the professional image of the building. Permission is granted strictly against the reserved time slot and expired codes become invalid automatically.

4 . Fault self-diagnosis and anti-tailgating

A built-in diagnostic module raises an alarm on any abnormality. Unauthorised entry or tailgating immediately triggers an audible and visual alarm, and an unused permission is cancelled after 10 seconds, preventing a single authorisation from being exploited.

5 . Safe evacuation on power failure

In a sudden power failure the turnstile enters fire mode, sounds an alarm and opens the barrier automatically, ensuring rapid evacuation and compliance with fire-safety regulations.

Specifications

FAQ

Q1 . What passage recognition methods does this wing barrier turnstile support?

It supports RFID/IC/ID card, face recognition, iris recognition, fingerprint, QR code, mobile phone/NFC, password and remote door opening, and several of them can run in the same lane.

Q2 . Can it integrate with our existing access control system?

Yes. The turnstile offers relay switch signal, 12V level signal and 12V pulse signal interfaces as well as RS485 or TCP/IP communication, so it connects easily to most access control platforms and card readers.

Q3 . Is it suitable for both indoor and outdoor installation?

Yes. With the IP43 / IP54 protection grade and a working ambient temperature of -30℃ to 70℃, the turnstile is designed for indoor and outdoor use.

Q4 . What are the MOQ and delivery time?

The minimum order quantity is 1 piece, and the normal delivery time is 5-14 working days depending on the configuration and quantity. Custom sizes and materials are available on request.

Q5 . What about after-sales support?

Every unit is CE and RoHS certified and carries a fault self-diagnosis function for easy maintenance. Our engineering team provides installation guidance and technical support for the whole service life of the turnstile.
