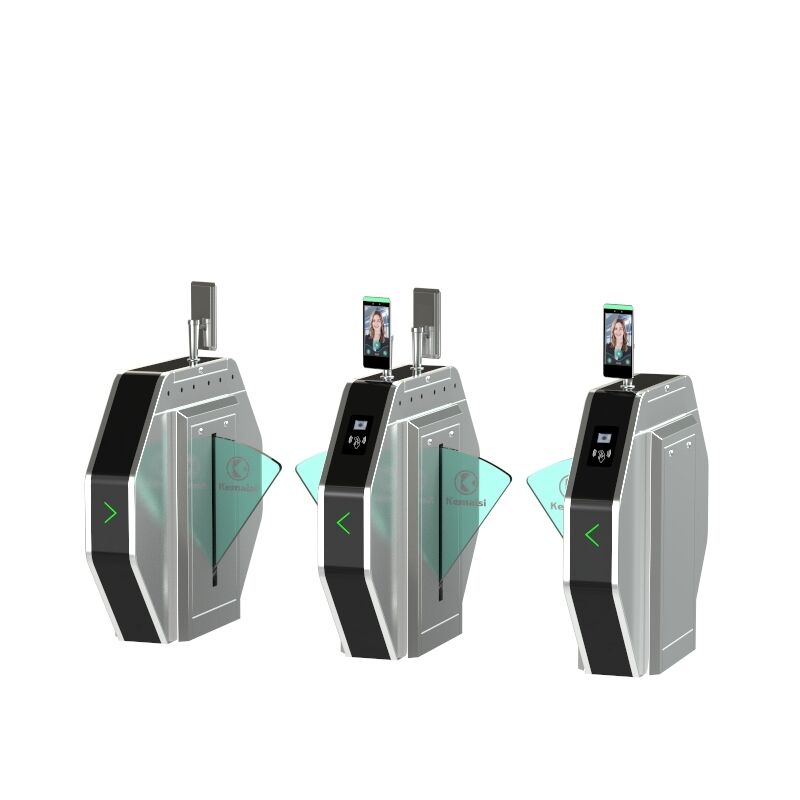

Safety Passage Wing Barrier Turnstile Gate for Secure Pedestrian Access Control

Product Introduction

This wing barrier is engineered as a safe, orderly pedestrian passage for buildings with constant foot traffic. The anti-pinch mechanism ensures that when the swing arm meets resistance during reset it automatically rebounds or the motor stops, with an impact force not exceeding 2 kg – protecting children and adults as they pass. An automatic reset function cancels the current permission if no one passes within 10 seconds of the gate opening, preventing tailgating and unintended access. Six pairs of infrared sensors monitor the channel, and unauthorised entry or tailgating immediately triggers an audible and visual alarm, while the swing arm locks when no opening signal is received to block forced entry. In the event of a power outage the turnstile automatically triggers a fire alarm and the gate opens immediately, ensuring rapid evacuation and full compliance with fire safety regulations. With fine workmanship, comprehensive functions and a high-end appearance, the unit integrates mechanical, electronic and microprocessor control with multiple identification technologies, and remains compatible with IC/ID card, fingerprint, QR code and facial recognition modules for intelligent, safe passage control.

Product Advantages

1 . Anti-pinch safety protection

If the swing arm meets resistance during reset it automatically rebounds or the motor stops, with a maximum impact force of no more than 2 kg – effectively preventing pinching injuries and guaranteeing safe passage for every user.

2 . Automatic reset prevents misuse

When no one passes within 10 seconds after the gate opens, the system automatically cancels the current permission and requires re-verification, effectively preventing tailgating and unintentional waste of an authorisation.

3 . Anti-tailgating alarm and anti-crash locking

Six pairs of infrared sensors detect every person in the channel. Unauthorised entry or tailgating immediately triggers an audible and visual alarm, and the swing arm automatically locks when no opening signal is received to prevent forced entry.

4 . Fire-mode auto opening on power failure

In the event of a power outage the turnstile triggers a fire alarm and the gate opens immediately, ensuring rapid evacuation of people and fully complying with fire safety regulations.

5 . Multi identification and flexible expansion

Compatible with card readers for IC cards, ID cards, fingerprints and QR codes, with optional alarm devices and direction indicators. Two-in-one facial recognition or card swiping lets users pass without carrying a card.

Frequently Asked Questions (FAQ)

Q1: How does the turnstile keep pedestrians safe?

The anti-pinch mechanism rebounds or stops the motor when the swing arm meets resistance, with a force not exceeding 2 kg. Six pairs of infrared sensors guard the channel, and an unused permission is cancelled after 10 seconds to prevent tailgating.

Q2: What happens during a power failure or emergency?

The turnstile automatically enters fire mode, sounds an alarm and opens the gate immediately for safe evacuation, and can be connected with fire alarm systems.

Q3: Can it integrate with our access control system?

Yes. It supports relay switch signal, 12V level signal and 12V pulse signal interfaces as well as RS485 or TCP/IP communication, and is compatible with facial recognition terminals, RFID/IC/ID readers, QR scanners and fingerprint devices.

Q4: What are the passage and safety specifications?

The standard cabinet is 1200mm*300mm*1000mm with a 550-600mm channel, a 0.5 second opening time, a traffic speed of 30 people per minute (40 normally open), IP43/IP54 protection and six pairs of infrared sensors.

Q5: What are the MOQ and delivery time?

The minimum order quantity is 1 piece and the normal delivery time is 5-14 working days. Custom sizes, materials and OEM/ODM services are available on request.
