Full Height Sliding Gate Turnstile Fast Passage Access Control 0.5 Second SUS304

Full Height Sliding Gate Turnstile For Fast Passage

Product Introduction

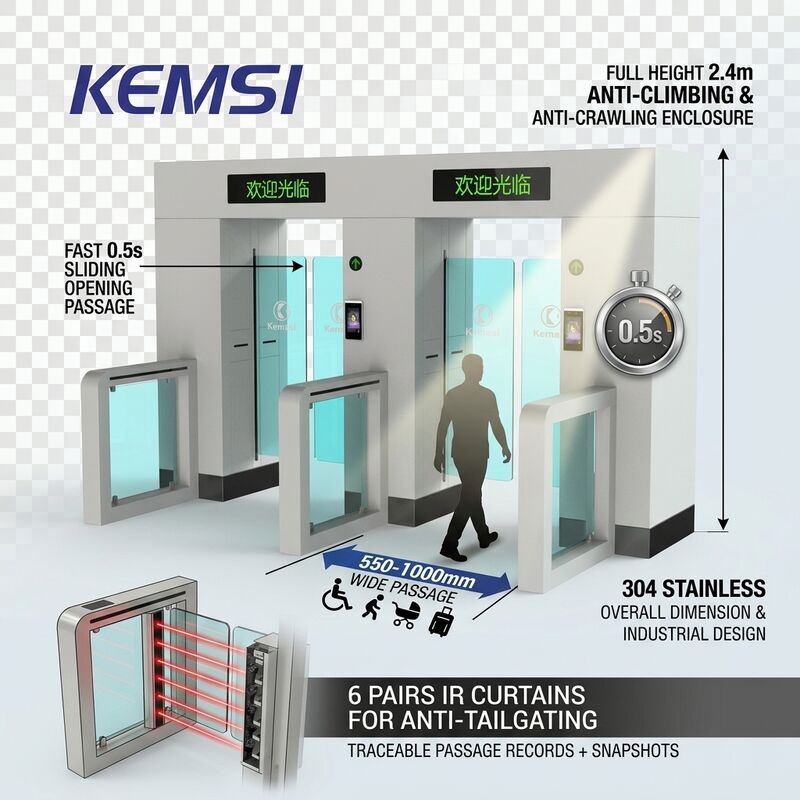

This full height sliding gate turnstile is designed for high security locations that also demand fast, comfortable passage. With a gate height of 2.4 meters, it adopts a fully enclosed or semi-enclosed structure from the ground to the top, completely eliminating the possibility of climbing over from above or crawling under from below. The gate uses a sliding opening and closing design, as opposed to traditional turnstiles, offering faster opening and closing speeds and a more comfortable, smooth passage experience. The frame is made of thickened 304 stainless steel for excellent impact resistance, vandal resistance and durability. The single channel width can be flexibly set from 550mm to 1000mm, easily accommodating barrier-free passage such as wheelchairs and strollers. The device is equipped with 6 pairs of infrared light curtains for industry-leading anti-tailgating precision, ensuring only one person passes at a time; if a tailgater does not exit the detection zone the gate refuses to open, and if someone stays in the channel beyond the set time the system triggers a voice prompt and reports to the monitoring center. All passage records are uploaded in real time, including personnel ID, time, identification method, passage status and on-site snapshots, making management fully traceable. Suitable for indoor and outdoor use, the device integrates mechanical, electronic, microprocessor control and multiple identification technologies, and is compatible with IC cards, ID cards, barcode cards and fingerprints, with optional alarm and direction indicator modules.

Product Advantages

1. Sliding opening design for faster and more comfortable passage.

Using a sliding movement instead of a traditional turnstile, the gate opens and closes quicker and more smoothly, providing a comfortable, seamless passage experience. The gate opens in 0.5 seconds and handles 30 people per minute in normal mode and up to 40 people per minute in normally-open mode.

2. 2.4 meter full height structure prevents climbing and crawling.

The gate height reaches 2.4 meters with a fully enclosed or semi-enclosed structure from ground to top, and the thickened 304 stainless steel frame provides strong impact and vandal resistance. Personnel cannot climb over or crawl under, physically preventing illegal intrusion at high security locations.

3. Adjustable channel width for barrier-free fast passage.

The single channel width can be flexibly adjusted from 550mm to 1000mm, allowing wheelchairs, strollers and large luggage to pass without obstruction, balancing security with fast, user-friendly passage.

4. Six pairs of infrared light curtains for anti-tailgating precision.

Six pairs of high density infrared light curtains provide industry-leading accuracy in detecting tailgating, ensuring only one person passes at a time. If a tailgater does not leave the sensing area the gate refuses to open, eliminating tailgating through technology.

5. Traceable passage records with personnel ID and on-site snapshots.

All passage records are uploaded in real time, including personnel ID, time, identification method, passage status and on-site capture photos. The management backend allows query and export at any time for security audits, exception tracing and personnel movement analysis.

6. Multi-modal identification and intelligent channel management.

Compatible with IC cards, ID cards, barcode cards, fingerprints, QR code and face recognition readers, with optional alarm and direction indicator modules, enabling intelligent channel management for fast and secure passage.

FAQ

How fast is the passage on this full height sliding gate turnstile?

The gate opens in 0.5 seconds and supports 30 people per minute in normal mode and up to 40 people per minute in normally-open mode. The sliding opening and closing design moves faster and more smoothly than traditional turnstiles, providing a comfortable, seamless passage experience.

What is the advantage of the sliding opening design?

Unlike traditional turnstiles, the gate uses a sliding movement with quicker and smoother action. The single channel width can be flexibly adjusted from 550mm to 1000mm, allowing wheelchairs, strollers and large luggage to pass without obstruction, balancing security with fast, user-friendly passage.

Does the 2.4 meter full height structure affect passage speed?

No. While the 2.4 meter fully enclosed or semi-enclosed structure from ground to top physically prevents climbing over or crawling under, the sliding design still delivers fast 0.5 second opening and 30-40 people per minute throughput for high security locations such as factories, industrial parks and data centers.

How does it prevent tailgating?

The gate is equipped with 6 pairs of high density infrared light curtains, achieving industry-leading anti-tailgating precision to ensure only one person passes at a time. If a tailgater does not leave the sensing area, the gate refuses to open, and if someone stays in the channel beyond the set time, the system triggers a voice prompt and reports to the monitoring center.

What identification methods are supported and are passage records traceable?

The turnstile is compatible with IC cards, ID cards, barcode cards, fingerprints, QR code and face recognition readers. All passage records are uploaded in real time, including personnel ID, time, identification method, passage status and on-site snapshots, making management fully traceable.

What is the minimum order quantity, price and delivery time?

MOQ is 1 piece, price ranges from USD3200 to USD6400 depending on configuration, and delivery is 5-14 working days. Customized sizes and identification modules are available on request.
