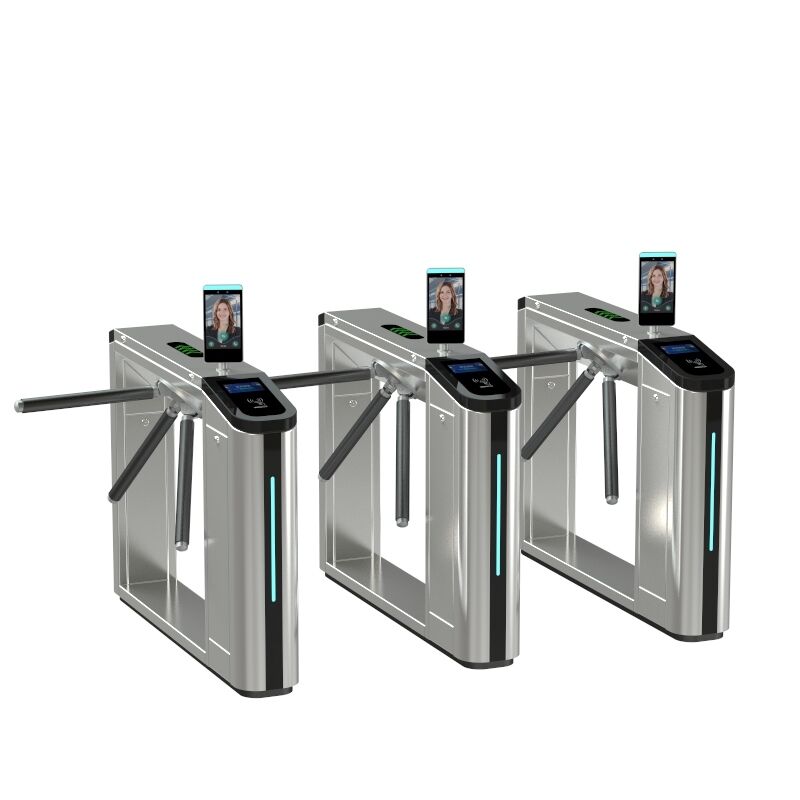

Indoor Playground Entrance Anti-Tailgating Tripod Turnstile
Product Description
The Kemaisi anti-tailgating tripod turnstile is designed for operators of indoor children’s playgrounds, trampoline parks and amusement parks, enabling intelligent management of ticketing and passage. The system uses QR code wristbands for precise time-limited control: timing starts automatically when the wristband is scanned at entry, and when the play time expires the turnstile automatically blocks further passage. Operators can flexibly set an “overtime supplement ticket” rule, allowing customers to enter again after buying a supplement ticket at the front desk or a self-service kiosk. The wristbands are anti-tamper and tear-proof: once forcibly opened or torn, the QR code is immediately damaged and becomes invalid, preventing the wristband from being passed to another person. Customers scan their own QR codes to pass, eliminating manual ticket checking, so passage stays smooth and congestion-free even at peak hours and on-site staff pressure is greatly reduced. All passage data is synchronised to the cloud in real time, and the system automatically records entry time, exit time and remaining time for each wristband, so operators can view the number of people inside and ticketing status from a phone or computer at any time. The built-in anti-tailgating detection accurately identifies unauthorised following and triggers an alarm, and the automatic reset function cancels unused authorisations to prevent tailgating or reuse. The mechanism runs smoothly with low noise and a long service life, and on a power failure the gate automatically unlocks to comply with fire evacuation requirements.
Product Advantages
1. Anti-tailgating detection with alarm
Infrared sensors accurately detect unauthorised following behind an authorised user and trigger an alarm, ensuring that only one person passes per valid authorisation and keeping passage orderly and secure.
2. Automatic reset to prevent misuse
After access permission is granted, if the user does not pass within the set time the system automatically cancels the authorisation and resets, preventing tailgating or reuse.
3. Precise time control with wristbands
Timing starts when the wristband QR code is scanned at entry, and the turnstile blocks passage once the time expires. An overtime supplement ticket rule balances revenue and experience.
4. Anti-tamper and tear-proof wristband design
Once the wristband is forcibly opened or torn, the QR code is immediately damaged and becomes invalid, preventing the wristband from being transferred or shared.
5. Self-service QR code for fast passage
Customers scan their own wristband QR codes to pass, eliminating manual ticket checking and avoiding congestion during peak hours while greatly reducing staff workload.
6. Real-time data synchronisation
The system records entry time, exit time and remaining time for each wristband, so operators can view the number of people inside and ticketing data at any time from a phone or computer.
7. Low-noise durable mechanism and power-failure unlocking
The unique mechanical structure ensures smooth, low-noise, reliable operation with a long service life, and on a power failure the gate automatically opens to mechanical free-passage mode for emergency evacuation.
![]()
Specifications
| Product Name | Indoor Playground Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP |
FAQ
Q1: How does this turnstile prevent tailgating?
A: Infrared sensors detect unauthorised following behind an authorised user and trigger an alarm, and the automatic reset function cancels unused authorisations, so only one person passes per valid authorisation.
Q2: How is play time controlled?
A: The system uses QR code wristbands, and timing starts when the wristband is scanned at entry. When the play time expires the turnstile automatically blocks passage, and an overtime supplement ticket rule can be set if needed.
Q3: Can a wristband be shared or transferred to another person?
A: No. The wristbands are anti-tamper and tear-proof; once forcibly opened or torn the QR code is immediately damaged and becomes invalid, so the wristband cannot be transferred.
Q4: What happens to the gate during a power failure?
A: On a sudden power failure the arms automatically unlock and switch to mechanical free-passage mode, keeping the lane open for rapid evacuation and meeting fire safety requirements.
Q5: What is the minimum order quantity and the delivery time?
A: The minimum order quantity is 1 pcs. Delivery time is 5-14 working days, with a monthly supply ability of about 1000 pieces.
