| Brand Name: | Kemaisi |
| Model Number: | KMS-G6507 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

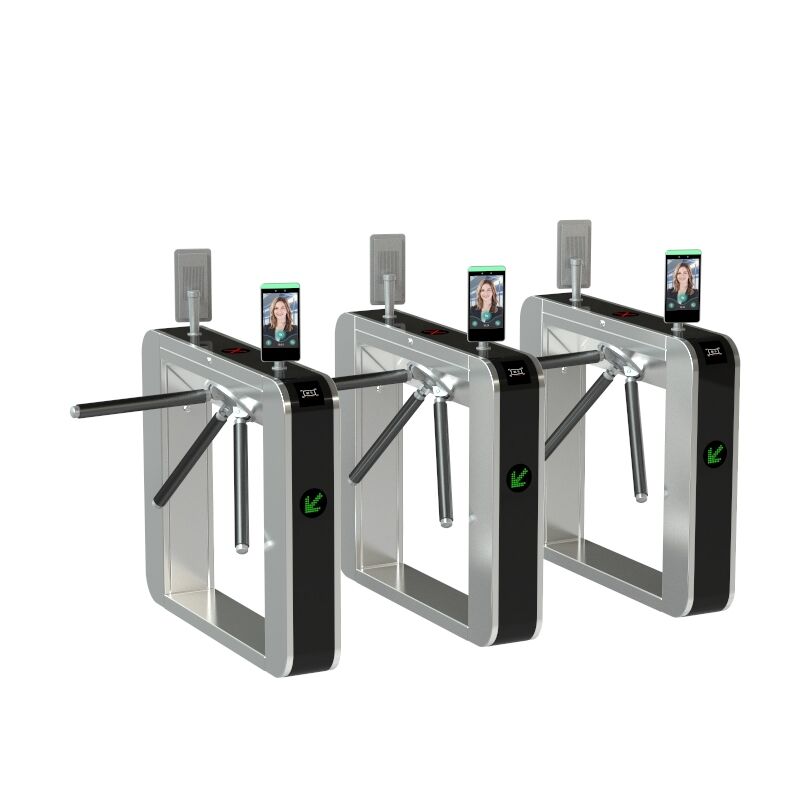

Park Entrance Tripod Turnstile Gate
Product Introduction
A park entrance is the busiest point on any holiday, where ticket queues stretch for hundreds of metres and manual checking slows every visitor down. Paper tickets are easily forged or lost, and ticket evasion or disputes quietly erode gate revenue. The Kemaisi park entrance tripod turnstile is built for outdoor cultural tourism venues. It accepts QR code, ID card, facial recognition and annual pass verification for 1-second ultra-fast passage, and combines dynamic QR codes with facial recognition to block screenshot fraud and ticket scalping. The 304 stainless steel housing resists rain, sun and impact, keeping a like-new appearance after years of outdoor use, while the brushless mechanism runs smoothly and quietly with a long service life. It is ideal for parks, scenic spots and outdoor playgrounds.
Product Advantages
1. 1-second ultra-fast passage for park entrances
QR code, ID card, facial recognition and annual pass media are all supported, compatible with online and offline ticketing channels. Verification and gate opening finish within 1 second, quickly clearing the visitor flow during peak holidays and eliminating long queues.
2. Dual-verification anti-counterfeiting
Dynamic QR code and facial recognition dual verification make screenshots unusable and identity fraud impossible. Each ticket is valid for one use by the holder only, technically blocking scalping and ticketing disputes at the park gate.
3. 304 stainless steel weatherproof body
The housing is made of 304 stainless steel, offering corrosion resistance, impact resistance and UV resistance, so it keeps its appearance despite long-term sun and rain exposure with no frequent maintenance, adapting to any outdoor park environment.
4. Brushless motor smooth low-noise mechanism
The brushless drive and unique mechanical design operate smoothly with extremely low noise, staying reliable under high-frequency start-stop cycles and significantly reducing park operation and maintenance costs.
5. Anti-tailgating 3-arm barrier
The turnstile accurately detects unauthorised following and triggers an alarm, while the robust 3-arm barrier resists impact and prevents forced entry, keeping one ticket per person at the park entrance.
6. Automatic gate opening on power failure
In the event of a sudden power failure, the gate automatically opens and switches to mechanical free-passage mode, ensuring rapid and unobstructed evacuation of visitors and fully complying with fire safety regulations.
7. Flexible operating modes for outdoor venues
Single passage in the set direction, bi-directional single passage, free passage in the set direction, or always free or locked can be configured to match the flow pattern of different park gates and event days.
| Product Name | Outdoor Playground Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1200mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
FAQ
Q1: Can this turnstile work outdoors all year round in rain and sun?
Yes. The 304 stainless steel housing is corrosion, impact and UV resistant with IP43/IP54 protection, so it maintains a like-new appearance and reliable operation through long-term outdoor exposure at park entrances.
Q2: How does it prevent ticket scalping and forged tickets?
It uses dynamic QR code plus facial recognition dual verification. A screenshot or shared ticket becomes unusable and identity fraud is impossible, so each ticket works for one use by the holder only.
Q3: How fast can each visitor pass during peak holidays?
Verification and gate opening complete within 1 second, with a traffic speed of 30 people per minute (40 people per minute in normally-open mode), clearing large park crowds quickly.
Q4: What happens during a power failure?
The gate opens automatically and switches to mechanical free-passage mode, ensuring rapid evacuation of visitors and compliance with fire safety regulations.
Q5: What entry methods and power supply are supported?
RFID/IC/ID card, face, iris and fingerprint recognition, QR code, mobile phone NFC, password and remote opening are all supported, powered by AC220V±10%/50HZ, and communicating over RS485 or TCP/IP. Size, channel width and finish can be customized. Contact us for a tailored quotation.
