| Brand Name: | Kemaisi |
| Model Number: | KMS-G6520 |
| MOQ: | 1 pcs |
| Price: | USD480-USD960 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

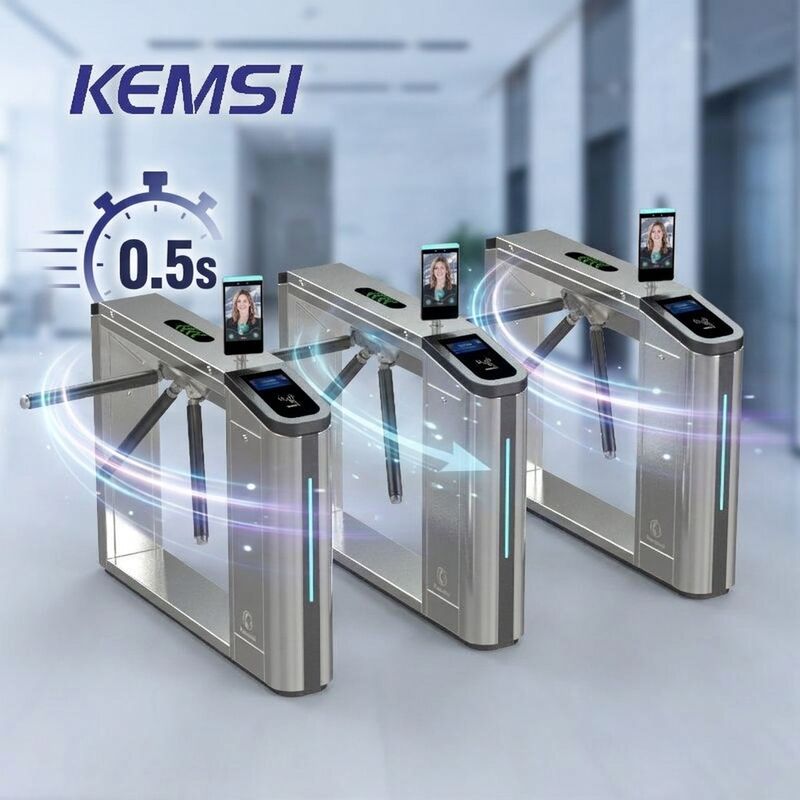

Fast Passage Tripod Turnstile Gate
Product Introduction
Slow gates are the number one cause of queues at busy entrances. Every extra second of waiting adds up during peak hours, frustrating visitors and forcing venues to hire more staff to manage the crowd. The Kemaisi fast passage tripod turnstile is built for speed: it opens in just 0.5 seconds and handles 30 people per minute, rising to 40 people per minute in normally-open mode, so crowds simply keep moving. Visitors scan a QR code, RFID card or NFC mobile phone and pass through without waiting for staff. The smooth, low-noise mechanism keeps traffic flowing even at the busiest times, and the robust 3-arm barrier maintains security against tailgating. Fast, quiet and reliable, it is the ideal choice for subways, office towers, stadiums and any high-traffic entrance.
Product Advantages
1. 0.5-second fast opening speed
The gate unlocks and opens in as little as 0.5 seconds after verification, removing the pause that causes queues at busy entrances and keeping a continuous, natural walking rhythm.
2. High throughput up to 40 people per minute
Traffic speed reaches 30 people per minute, rising to 40 people per minute in normally-open mode, quickly clearing large crowds during peak hours without congestion.
3. Self-service entry, no queuing or waiting
Visitors scan a QR code, RFID/IC/ID card, or NFC mobile phone and pass through by themselves, with no manual ticket checking, shortening the entry process for every single person.
4. Smooth low-noise mechanism for continuous flow
A unique mechanical structure operates smoothly with very low noise and stays reliable under high-frequency start-stop cycles, so fast passage never compromises durability.
5. Anti-tailgating 3-arm barrier
Speed never comes at the cost of security. The turnstile detects unauthorised following and triggers an alarm, while the robust 3-arm barrier resists impact and keeps one person per pass.
6. Automatic reset to prevent reuse
After access permission is granted, if the user does not pass within the set time the permission is cancelled and the system resets automatically, preventing QR code screenshots from being reused and keeping fast lanes secure.
7. Automatic gate opening on power failure
On a sudden power failure the gate unlocks automatically and switches to mechanical free-passage mode, ensuring unobstructed evacuation and full compliance with fire safety regulations.
| Product Name | Indoor Playground Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
FAQ
Q1: How fast can a person actually pass through this turnstile?
The gate opens in as little as 0.5 seconds, and the throughput reaches 30 people per minute, or 40 people per minute in normally-open mode, so queues clear quickly during peak hours.
Q2: Do visitors need staff to check their tickets?
No. Visitors scan a QR code, RFID/IC/ID card or NFC mobile phone and pass through by themselves, with no manual ticket checking required, which keeps the lane moving and frees up manpower.
Q3: Does fast passage weaken access security?
No. The anti-tailgating 3-arm barrier and the automatic reset function (which cancels unused permissions) keep the fast lane secure while maintaining high throughput.
Q4: Can the turnstile run continuously all day under heavy use?
Yes. The low-noise mechanism is designed for high-frequency start-stop cycles with a service life of 5 million operations, so it sustains fast passage all day with low maintenance.
Q5: What happens during a power failure?
The gate unlocks automatically and switches to mechanical free-passage mode for rapid evacuation. Size, channel width and finish can be customized. Contact us for a tailored quotation.
