| Brand Name: | Kemaisi |
| Model Number: | KMS-G6517 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

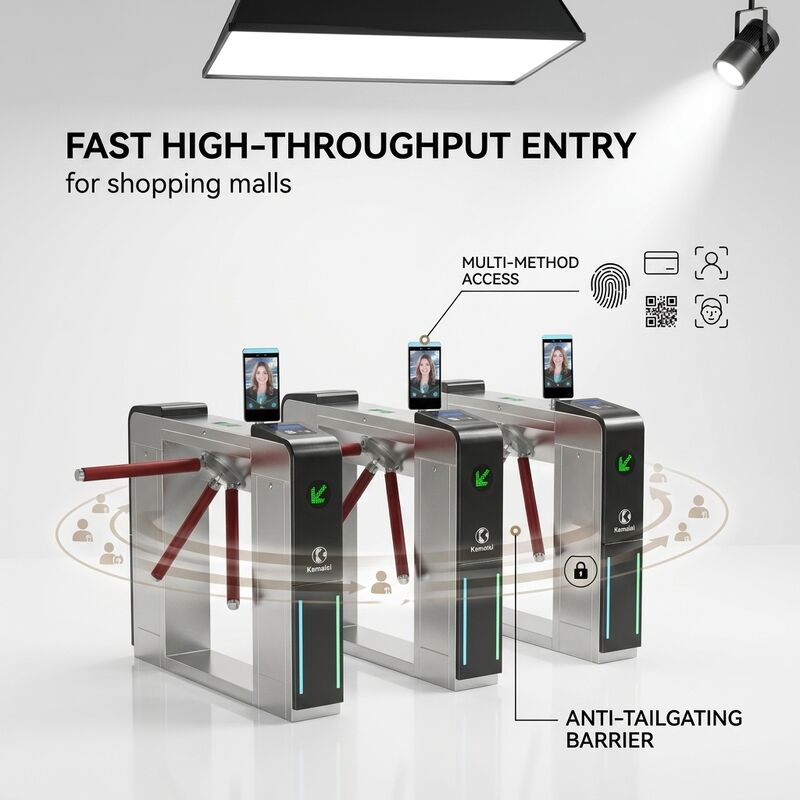

A shopping mall is one of the busiest pedestrian environments anywhere. Thousands of shoppers flow through the entrances every hour, and ordinary gates either slow that flow into queues or leave the doors wide open and uncontrolled. Managing staff, tenants, delivery personnel and after-hours access only adds to the challenge. The Kemaisi shopping mall access control tripod turnstile gate is designed for exactly this mix. Its fast 0.5-second opening and throughput of 30 to 40 people per minute keep shoppers moving at peak times, while multi-method verification through card, QR code, facial recognition and mobile NFC serves staff and tenants with whatever credential suits them. Built-in infrared sensors provide precise anti-tailgating detection so nobody slips in on someone else credential. The all-304 stainless steel body is robust, durable and finished with a modern high-tech look that lifts the mall image, and the low-noise mechanism keeps the lobby pleasant. On a power failure the gate unlocks automatically for safe evacuation. It is the ideal controlled entrance solution for shopping malls, department stores and retail complexes.
With a 0.5-second opening time and a throughput of 30 to 40 people per minute, the gate clears large shopper crowds quickly during weekends and holidays, eliminating long entrance queues and improving shopper experience.
Card swiping, QR code, facial recognition and mobile NFC are all supported in one device. Mall staff and tenants pass with the credential that suits them, and the system can be extended to visitors and deliveries as needed.
Built-in infrared sensors accurately detect tailgating and trigger an alarm, while the automatic reset cancels an unused permission so nobody slips through on another credential.
The entire unit is made of 304 stainless steel, robust, durable, corrosion and impact resistant, and waterproof, UV, cold and heat resistant. Its high-tech appearance enhances the mall professional image and suits both indoor and outdoor entrances.
The unique internal mechanical design runs smoothly with extremely low noise, keeping the mall lobby pleasant, and maintains excellent performance under high-frequency start-stop cycles for a service life of 5 million operations.
In the event of a sudden power failure the gate automatically unlocks and switches to mechanical free-passage mode, fully opening the passage for rapid, unobstructed shopper evacuation and full compliance with fire safety regulations.
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*320mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Yes. The fast 0.5-second opening and a throughput of 30 to 40 people per minute clear large shopper crowds quickly at weekends and holidays, keeping entrance queues short.
Card swiping, QR code, facial recognition and mobile NFC are all supported in one device, so staff, tenants and approved visitors can pass using whichever credential suits them.
Built-in infrared sensors detect tailgating in real time and trigger an alarm, and the automatic reset cancels any unused permission, so one credential admits only one person.
Yes. The 304 stainless steel body is weather resistant with IP43/IP54 protection, so it works reliably at indoor mall entrances and semi-outdoor gates. Size, channel width and finish can be customized.
The gate unlocks automatically and switches to mechanical free-passage mode for rapid, unobstructed evacuation, and it can be linked with fire alarm systems for emergency opening.
