| Brand Name: | Kemaisi |
| Model Number: | KMS-G6520 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

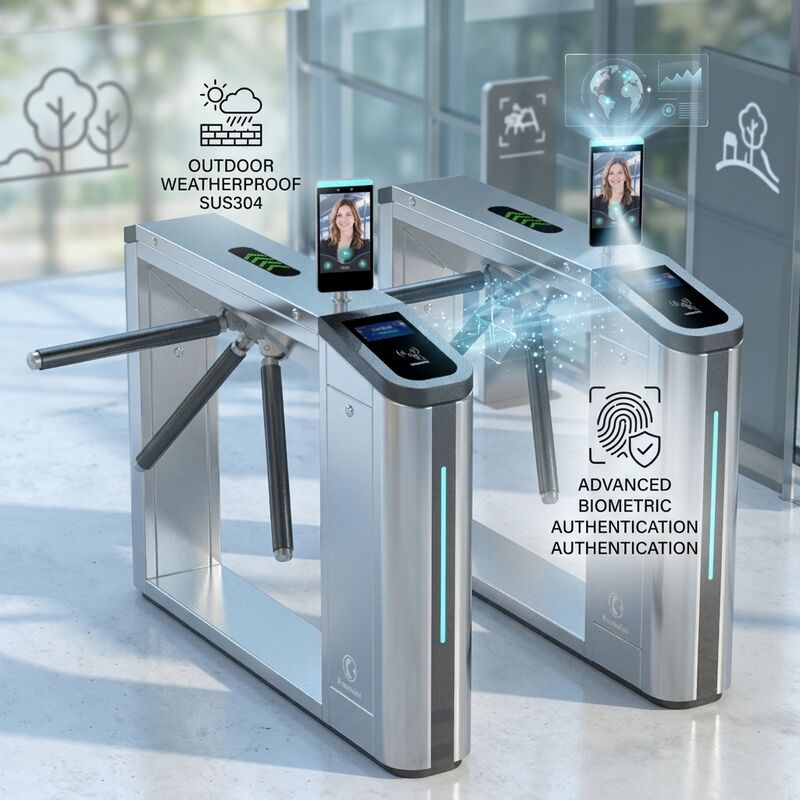

The Kemaisi KMS-G6520 park access control tripod turnstile is purpose-built for parks, scenic areas, botanical gardens and public recreation grounds, delivering dependable outdoor pedestrian access control around the clock. The cabinet is fabricated from SUS304 stainless steel with a baking-paint finish, providing corrosion and weather resistance for year-round outdoor deployment without extra shelter. Visitors verify their entry with a QR code ticket, IC/ID card, face recognition terminal or NFC device, and the tri-arm mechanism releases exactly one person per rotation to stop tailgating and ticket sharing. The brushless mechanism runs smoothly and quietly at 30-40 passages per minute, easily handling morning and holiday peaks, while the fail-safe design drops the arms automatically on power failure to meet fire evacuation rules. All passage data is synchronised to the cloud in real time, so park managers can monitor live visitor counts, ticket validation and flow peaks from a phone or computer, supporting accurate capacity control and staffing decisions.
The barrier is constructed from SUS304 stainless steel with a baked-paint finish, offering strong resistance to rain, UV, salt spray and temperature swings from -30℃ to 70℃. It can be installed at park entrances, walking trails and open plazas without additional shielding, keeping the mechanism reliable through every season.
The turnstile supports QR code tickets, RFID/IC/ID cards, face recognition, fingerprint and NFC mobile credentials, and can work with third-party ticketing and membership systems. Parks can mix ticket types freely and validate every visitor in under one second.
The mechanical tripod arm releases a single visitor for each valid credential and physically blocks the next person until a new authorisation is granted. This prevents ticket sharing, tailgating and unauthorised entry, protecting park ticket revenue and visitor-count accuracy.
With a passage speed of 30 people per minute (up to 40 in normally-open mode) and a service life of 5 million cycles, the turnstile absorbs morning and holiday rush hours while operating quietly, without disturbing the relaxed atmosphere of the park.
In the event of a sudden power failure, the tripod arm drops automatically and the gate switches to free-passage mode, ensuring unobstructed emergency evacuation and full compliance with fire safety regulations. An automatic reset cancels unused entry permissions to prevent reused credentials.
Every entry and exit is uploaded to the cloud in real time. Park managers can view live occupancy, ticket sales and remaining capacity on a phone or computer at any time, giving accurate data for crowd control, staffing and promotion planning.
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1400mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP |
Yes. The cabinet is made from corrosion-resistant SUS304 stainless steel with a baked-paint finish, and an IP65 waterproof version is available for exposed outdoor park entrances.
Visitors simply present a QR code ticket, RFID/IC/ID card, face recognition or NFC credential. The turnstile verifies the credential in under one second and releases one person per rotation.
Yes. The turnstile processes 30 people per minute, or 40 in normally-open mode, and the low-noise brushless mechanism is designed for high-frequency start-stop cycles during peak seasons.
The tripod arm drops automatically and switches to mechanical free-passage mode, allowing visitors to exit safely and complying with fire evacuation requirements.
Yes. We offer OEM and ODM services including custom logos, packaging, cabinet design, firmware and integration with third-party park ticketing and access control platforms.
