| Brand Name: | Kemaisi |
| Model Number: | KMS-G6528 |
| MOQ: | 1 pcs |
| Price: | USD440-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

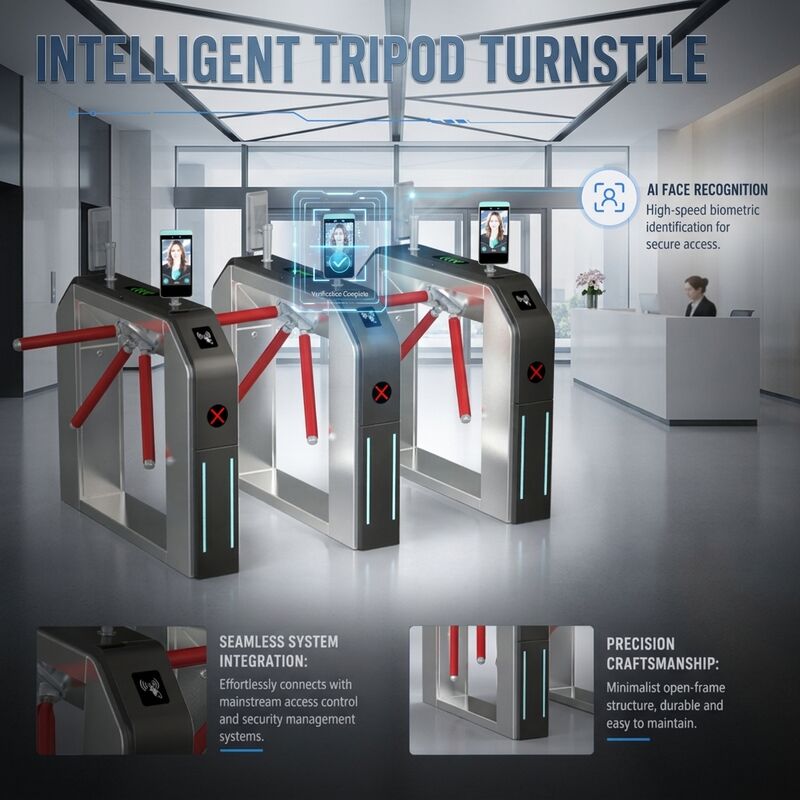

The Kemaisi KMS-G6528 visitor management system tripod turnstile is a complete reception and access control solution for office buildings, industrial parks, campuses and public institutions. Instead of signing a paper logbook at the front desk, visitors can pre-register online or at a self-service kiosk, scan their ID document, and receive a QR code or temporary card pass in seconds. The turnstile verifies the credential with QR code, RFID/IC card, face recognition or NFC and releases one visitor per passage, keeping the lobby flowing even during busy morning and lunch peaks. Every entry and exit is recorded automatically, so reception and security teams can see who is on site, when they arrived and when they left, and can trace records instantly. Authorised staff, VIPs and regular contractors can be given time-limited permissions, while the anti-tailgating tri-arm mechanism and infrared detection stop pass sharing and unauthorised entry. All visitor data is synchronised to the cloud and can be exported for reporting or integrated with existing HR and building management platforms. The mechanism uses a proven mechanical structure that runs smoothly and quietly, and when power fails the arms drop automatically to free the passage in line with fire safety regulations.
Visitors complete registration before arrival through a web form or self-service kiosk and instantly receive a QR code pass. Reception no longer prints or fills paper logs, and visitors pass through the turnstile in seconds with a single scan.
The system reads ID cards and passports to verify identity, then issues a time-limited QR code or temporary RFID pass that expires automatically after the visit. One-time passes cannot be reused, keeping site access strictly controlled.
The turnstile supports QR code, RFID/IC/ID card, face recognition, fingerprint and NFC credentials. Different permission groups can be set for employees, visitors, VIPs and contractors, with individual access areas and valid time windows.
Every entry and exit is recorded automatically and uploaded to the cloud. Security teams can view live occupancy, visitor lists and historical records on a phone or computer at any time, and export reports for compliance and audits.
The tri-arm mechanism releases one person per valid credential, and built-in infrared detection identifies and prevents tailgating. If an authorised visitor does not pass within the set time, the permission is cancelled and the system resets automatically.
The proven mechanical structure operates smoothly with low noise and a service life of 5 million cycles, reducing maintenance. On power failure the arms drop automatically to free the passage, complying with fire evacuation requirements.
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1300mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP |
It supports QR code passes, RFID/IC/ID cards, face recognition, fingerprint scanners, barcode readers and mobile NFC credentials, so visitors can be verified with the method that suits the site.
Yes. The turnstile supports TCP/IP, RS485, Wiegand and relay output, and can integrate with most visitor management, HR and building management platforms through open interfaces.
The tri-arm mechanism releases only one person per valid credential, combined with infrared anti-tailgating detection. Unused entry permissions are automatically cancelled after a set time to stop reuse.
Yes. The turnstile can be configured for one-way or two-way access. The standard version suits indoor or covered areas, and an outdoor weatherproof version is available on request.
Yes. We provide customized branding, cabinet design, software integration, communication protocol development and project-specific access control solutions.
