| Brand Name: | Kemaisi |
| Model Number: | KMS-G6545 |
| MOQ: | 1 pcs |
| Price: | USD470-USD940 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

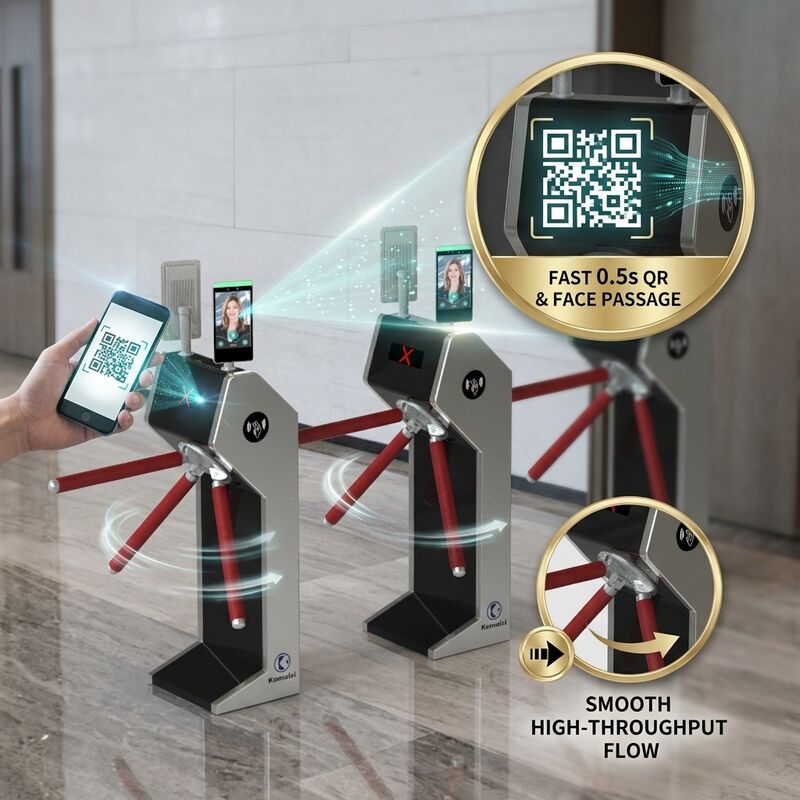

Traditional venues such as cinemas, theaters, stadiums and exhibition halls still rely on staff manually checking or tearing tickets, which raises labor costs and creates long queues during peak hours. The Kemaisi KMS-G6545 QR code recognition anti-tailgating tripod turnstile enables fully paperless, self-service entry. Visitors buy their ticket on a phone or at a kiosk and simply present the QR code at the turnstile; the high-speed scanner verifies it in about 0.5 seconds and the tri-arm releases one person per passage, with no ticket checker needed at the gate. Each QR code is valid for a single scan and carries anti-copy protection, so screenshots and reused ticket stubs are rejected, stopping ticket fraud at the source and protecting ticket revenue. The device is equipped with anti-tailgating and anti-crash functions that accurately detect unauthorised following and trigger an alarm, keeping the passage orderly and secure while reducing manual intervention. The proven mechanical structure runs smoothly with low noise and a service life of 5 million cycles, and on power failure the arms drop automatically to free the passage in line with fire evacuation requirements, making it ideal for 24/7 unattended venues.
Visitors buy tickets on their phones and scan the QR code directly at the turnstile for fast entry, with no manual verification needed at the gate. It is especially suited to 24-hour unattended venues and late-night sessions, significantly reducing operating costs.
Each QR code is valid for one scan only and features financial-grade anti-copy protection. Screenshots are unusable and one ticket admits one person, technically preventing stub reuse, screenshot forgery and scalping to secure ticket revenue.
The built-in QR code reader verifies a valid ticket in about 0.5 seconds and the turnstile handles 30 people per minute, or 40 in normally-open mode, keeping queues short during holiday and opening-time peaks.
Infrared sensors accurately detect tailgating and trigger an alarm, while the robust stainless steel body resists impact and forced entry, ensuring orderly passage, equipment safety and less manual intervention.
The unique internal mechanism runs smoothly with very low noise, without disturbing the venue atmosphere, and maintains excellent performance under high-frequency start-stop cycles with a 5 million cycle service life, reducing maintenance costs.
On a sudden power failure the gate automatically unlocks and switches to mechanical free-passage mode, fully opening the passage to ensure rapid, unobstructed evacuation and full compliance with fire safety regulations.
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 400mm*330mm*1100mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP |
A valid QR code is recognised in about 0.5 seconds and the tri-arm releases one person per passage, supporting a throughput of 30 people per minute, or 40 in normally-open mode.
No. Each QR code is valid for a single scan and features anti-copy protection, so screenshots and reused tickets are rejected, preventing ticket fraud and pass sharing.
Yes. The stainless steel cabinet is designed for outdoor environments, and IP65 waterproof versions are available upon request.
Absolutely. It supports standard communication protocols such as Wiegand, RS485, TCP/IP and dry contact, and is compatible with most third-party ticketing and access control systems.
Yes. We offer complete OEM and ODM services, including logo branding, cabinet dimensions, access control modules, software integration and customized finishes.
