| Brand Name: | Kemaisi |
| Model Number: | KMS-G6602 |
| MOQ: | 1 pcs |
| Price: | USD560-USD1100 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

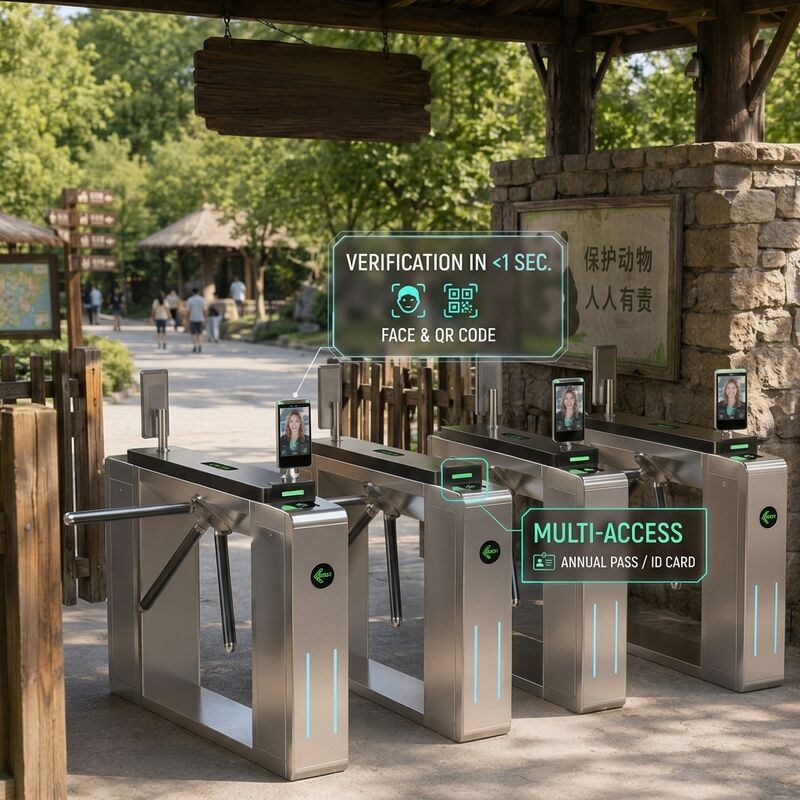

Scenic spots and tourist attractions often face severe ticket-checking congestion during peak holidays, causing visitor complaints, while manual checking is inefficient and easily leads to ticket evasion or disputes. The Kemaisi KMS-G6602 scenic area tripod turnstile delivers ultra fast ticket verification at the park entrance. It supports multiple credentials including QR code, ID card, facial recognition and annual pass, and completes verification and gate opening within one second, so queues keep moving even on the busiest days. The system provides unified management of multi-channel ticketing: online, offline, travel agency and group tickets all pass through one device, and tour group tickets can be verified in batches so several people pass together. The innovative dual verification of dynamic QR code plus facial recognition ensures that each QR code can only be scanned once and carries anti-copy protection, eliminating one-ticket-multiple-people behaviour and forged tickets. The cabinet is built from weather-resistant SUS304 stainless steel for outdoor scenic installations, the mechanism runs smoothly and quietly with a long service life, and when power fails the gate unlocks automatically to mechanical free-passage mode for safe, regulation-compliant evacuation.
Supports QR code, ID card, facial recognition and annual pass credentials, and completes verification and gate opening within one second, greatly reducing queue congestion during holidays and improving visitor satisfaction.
Integrates online, offline and travel agency ticketing channels into one pass-through device. Tour group tickets can be verified in batches so multiple people pass at once, simplifying group entry and improving operational efficiency.
Dynamic QR code plus facial recognition dual verification ensures each QR code is single-use and anti-copy, eliminating one ticket being used by multiple people and forged tickets, effectively protecting scenic spot ticket revenue.
The SUS304 stainless steel cabinet with baked-paint finish resists rain, UV and temperature swings from -30℃ to 70℃, suitable for outdoor scenic entrances and open plazas.
The unique mechanical structure ensures smooth and reliable operation, low noise and a service life of 5 million cycles, greatly reducing maintenance frequency and cost.
When power fails the gate automatically unlocks and switches to mechanical free-passage mode, ensuring unobstructed emergency evacuation and full compliance with fire safety regulations.
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 1500mm*230mm*1000mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP |
Yes. It is fully compatible with face recognition terminals through Wiegand, RS485, TCP/IP and dry contact interfaces, and can run dual verification of QR code plus face.
Yes. The cabinet is made from weather-resistant SUS304 stainless steel. The standard model suits covered outdoor use, and an IP65 waterproof version is available for exposed environments.
Yes. It supports unified management of online, offline and travel agency ticketing, batch verification for tour groups and annual pass access through a single device.
Depending on the selected configuration, the tripod arms automatically unlock or drop to allow free passage during emergency evacuation, in line with fire safety regulations.
Yes. We offer OEM and ODM services including cabinet dimensions, logo engraving, colour finishes and customized access control modules.
