| Brand Name: | Kemaisi |
| Model Number: | KMS-G6739 |
| MOQ: | 1 pcs |
| Price: | USD650-USD1300 |
| Delivery Time: | 5-14 work days |
| Payment Terms: | T/T |

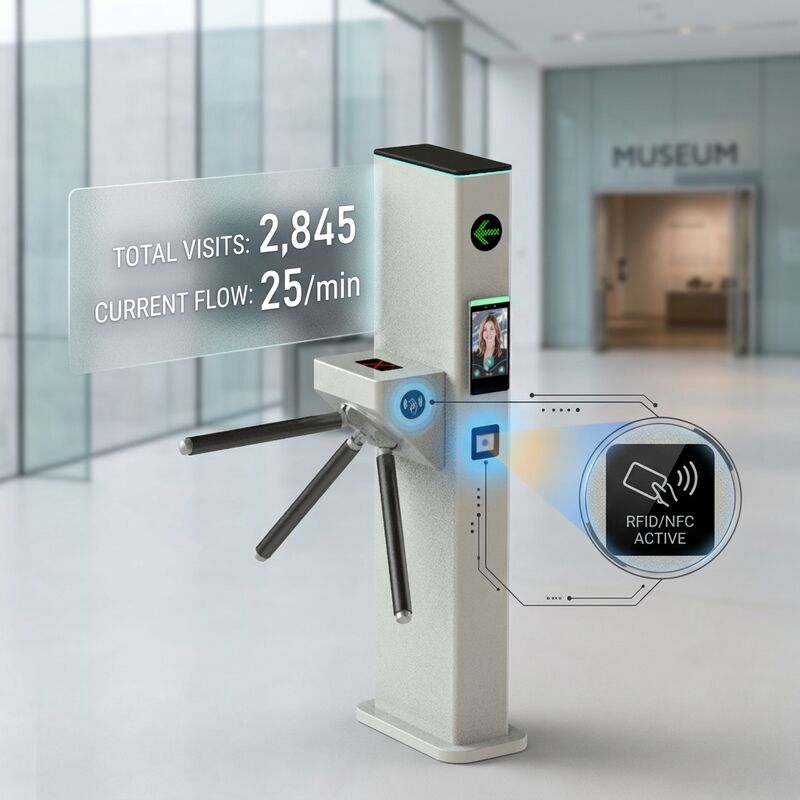

During free admission days or popular special exhibitions, exhibition halls and museums often face overcrowding and prominent safety hazards. On site there is no accurate means of counting visitors, so staff can only estimate by sight, unable to know the real-time number of people inside, judge whether the capacity limit has been exceeded, or decide when to stop allowing entry. The Kemaisi KMS-G6739 exhibition hall visitor flow control system tripod turnstile provides a complete solution. It supports online ticket purchase followed by fast QR code, RFID card or mobile NFC scanning for entry at over 30 people per minute, and multi-lane flow distribution for differentiated management of VIPs, members and ordinary reservation visitors. Sensors inside the turnstile separately count entry and exit numbers, accurately calculating the real-time number of people inside and dynamically displaying remaining capacity; when the number reaches a preset threshold an automatic alarm is triggered. The system can run a "one out, one in" rotation mechanism or close the entry lanes and switch to one-way exit mode for precise flow limiting. The mechanism runs smoothly with low noise and a service life of 5 million cycles, and on power failure the gate unlocks automatically to mechanical mode for safe evacuation, fully complying with fire safety requirements.
Supports online ticket purchase followed by QR code, RFID card or mobile NFC scanning for entry at over 30 people per minute. Multi-lane flow distribution enables differentiated management for VIPs, members and ordinary reservation visitors, with express lanes for VIPs.
Sensors separately count entry and exit numbers, accurately calculating the real-time number of people inside and remaining capacity. When a preset threshold is reached an automatic alarm notifies management immediately to start flow control measures.
A precise "one out, one in" rotation mechanism keeps occupancy balanced, while closing entry lanes and switching to one-way exit mode forcefully controls incoming visitors, eliminating the risk of overcrowding and stampedes at the source.
The unique mechanical structure operates smoothly with very low noise without disturbing the exhibition hall atmosphere, and maintains excellent performance under high-frequency start-stop cycles with a 5 million cycle service life, reducing maintenance costs.
On a sudden power failure the gate automatically unlocks and switches to mechanical free-passage mode, fully opening the passage to ensure rapid, unobstructed evacuation and full compliance with fire safety regulations.
If a visitor does not pass within the set time after gaining permission, the authorisation is cancelled and the gate resets automatically, preventing permissions from being misused via screenshots, reused or exploited for tailgating.
| Product Name | Tripod Turnstile |
| Barrier Material | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Passage Frame | 304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size | 450mm*230mm*1800mm (Sizes Can Be Customized) |
| Traffic Speed | 30 People/Minute, Normally Open 40 People/Minute |
| Service Life | ≥5 Million Times |
| Channel Width | 550-600mm |
| Rotation angle per step | 120° |
| Working Voltage | AC220V±10%/50HZ 50W |
| Relative Temperature | ≤95% Not Condensing |
| Product Power | 50W |
| Opening Time | 0.5 Seconds |
| Ambient Temperature | -30℃-70℃ |
| Work Environment | Indoor And Outdoor |
| Protection Grade | IP43, IP54 |
| Access Control Type | RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface | Relay switch signal/12V level signal/12V pulse signal with pulse width>100ms; RS485 or TCP/IP |
Sensors separately count entry and exit numbers to calculate real-time occupancy and remaining capacity. When a preset threshold is reached an automatic alarm is triggered and flow limiting can be activated.
Yes. The turnstile supports face recognition terminals through Wiegand, RS485, TCP/IP and dry contact interfaces, alongside QR code, RFID card and NFC access.
Absolutely. The turnstile supports standard communication protocols and integrates with most third-party ticketing, access control and attendance management systems.
Depending on the configuration, the tripod arm automatically unlocks or drops, allowing free passage for emergency evacuation in line with fire safety requirements.
Yes. We offer OEM and ODM services, including customized dimensions, finishes, branding and access control integration.
