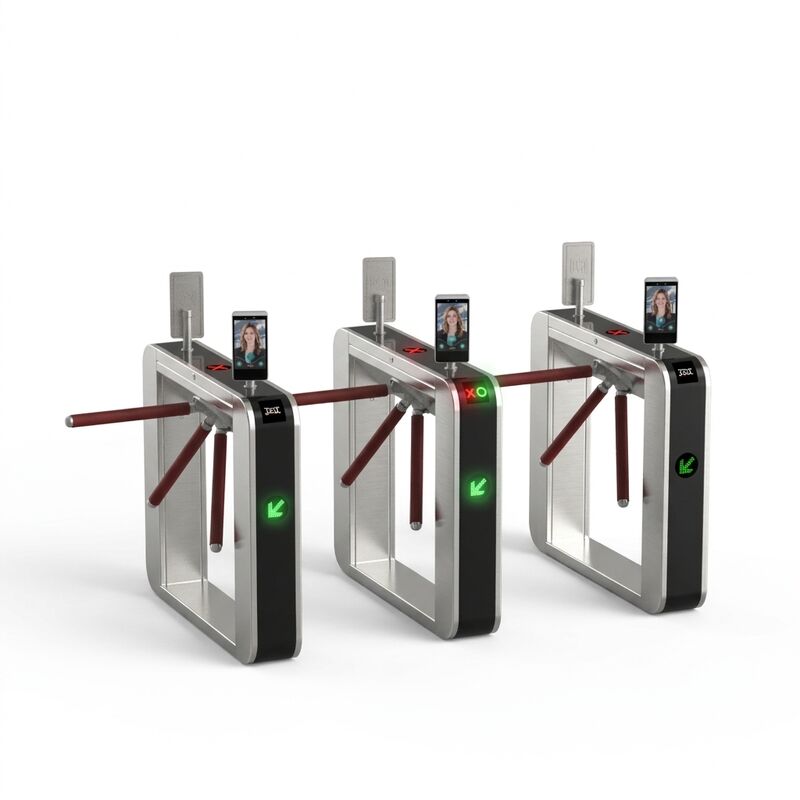

304 Stainless Steel Tripod Turnstile Gate Semi-Automatic Outdoor Access Control

Product Description

Managing pedestrian flow at subway stations, airports, office buildings, schools, factories and stadiums demands a gate that keeps working under heavy daily traffic. The KMS-G6507 semi-automatic stainless steel tripod turnstile is engineered for exactly this. The housing is built from high-strength 304 stainless steel with a brushed finish, giving corrosion resistance, impact resistance and UV resistance for both indoor and outdoor installation. The semi-automatic tripod mechanism lets each authorized person pass with a single push, while infrared anti-pinch and anti-tailgating sensors keep the lane safe. Red and green LED indicators together with voice prompts make passage status clear at a glance, and the modular cabinet design keeps maintenance simple. Supporting IC/ID cards and RS485 connectivity, with optional facial recognition, fingerprint and QR code readers, it integrates easily with access control, attendance and security platforms. In the event of a power failure the arm drops into free-passage mode for unobstructed emergency evacuation.

Features and Advantages

1 . 304 Stainless Steel Rustproof Housing

The cabinet and passage frame are made of 304 stainless steel with a brushed surface treatment, resisting rust, corrosion and impact. It keeps a like-new appearance under long-term sun and rain, so outdoor scenic spots and industrial sites need far less maintenance.

2 . Semi-Automatic Low-Noise Mechanism

A precision semi-automatic tripod mechanism delivers a smooth, quiet turn with every pass. It stays reliable through high-frequency start-stop cycles, keeping the site quiet and cutting long-term operating and maintenance costs.

3 . Ultra-Fast Single-Person Passage

One authorized person passes per turn, with traffic speed of 30 people per minute, or 40 people per minute in normally-open mode. The gate opens in as little as 0.5 seconds, clearing rush-hour queues without compromising one-card-one-person control.

4 . Multi-Mode Access & RS485 Connectivity

Supports IC/ID card, RFID, password and remote release as standard, with optional facial recognition, fingerprint and QR code readers. RS485 or TCP/IP communication enables seamless integration with access control, attendance and security platforms for real-time monitoring.

5 . Automatic Free-Passage on Power Failure

If power fails, the arm automatically drops to the free-passage position and stays open, ensuring rapid, unobstructed evacuation in an emergency while complying with fire-safety requirements.

Frequently Asked Questions

Q1: What is a semi-automatic tripod turnstile gate?

A semi-automatic tripod turnstile gate is a waist-high access control gate with three rotating arms. After the credential is verified, the user simply pushes the arm to pass one person at a time, giving both security and a low-maintenance mechanical structure.

Q2: Can it integrate with face recognition and QR code readers?

Yes. The standard unit supports IC/ID card and RFID readers plus RS485 or TCP/IP connectivity, and it can be upgraded with facial recognition, fingerprint scanners, QR code readers and mobile NFC credentials.

Q3: Is it suitable for outdoor use?

Yes. With a 304 stainless steel brushed housing, IP43/IP54 protection and a working range of -30 C to 70 C, the turnstile is built for indoor and outdoor entrances such as scenic spots, factories and stadiums.

Q4: Does it support bi-directional access?

Yes. The turnstile can be configured for single-direction or bi-directional pedestrian control, and the number of lanes can be expanded with the modular cabinet design.

Q5: Do you offer OEM & ODM services?

Yes. We provide comprehensive OEM and ODM support, including branding, cabinet size customization, surface treatment, software integration and communication protocol development.
